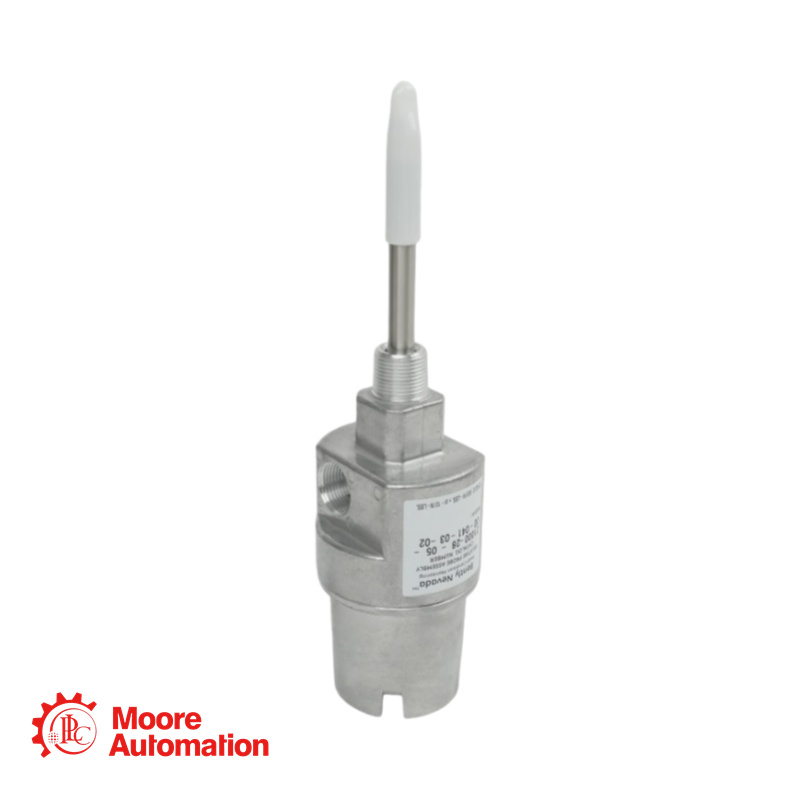

21000-28-05-00-052-03-02 Bently Nevada Housing Assembly

How can I get price?

21000-28-05-00-052-03-02

Sales Manager:Frida
◆Phone/Whatsapp:+86 15359408275
◆Email:sales5@mooreplc.com

Description - Housing Assembly

21000-28-05-00-052-03-02

Bently Nevada 21000 Series Aluminum Probe Housing, pre-assembled with a 3300 XL 8mm Reverse Mount Probe (Multiple Approvals) and 0.5m cable. This assembly provides a robust, weather-tight (Type 4) enclosure for externally mounting vibration/position sensors on machinery casings. Configured for a 5.2 inch probe penetration with a 3/4-14 NPT mounting thread for direct case insertion. Includes a conduit fitting kit (Option 03) for terminating armored cable or flexible conduit.

Parameter - Housing Assembly

21000-28-05-00-052-03-02

Housing Model:21000 (Aluminum Body, 304 Stainless Steel Sleeve)
Probe Type:3300 XL 8 mm Reverse Mount (Option 28: with selectable hazardous area approvals)
Cable Length:0.5 meter (20 inches)
Standoff Adapter:None (Flush Mount)
Probe Penetration:5.2 inches (132 mm)
Fittings:Option 03: 3/4" NPT Plug, 3/4" to 1/2" Reducer, Cable Grip (for 1/8" to 3/8" OD cable)
Mounting Thread:3/4-14 NPT (Male, extended thread engagement for stiffness)
Material (Body):Aluminum
Material (Sleeve):304 Stainless Steel
Operating Temp:-51°C to +177°C (-60°F to +351°F)

FAQ - Housing Assembly

21000-28-05-00-052-03-02

Q: What is the exact dimension from the housing flange to the probe tip?
A: The "D" dimension specifies the probe sleeve penetration: 5.2 inches (132 mm) . Note that the actual probe tip extends approximately 0.2 inches (5mm) beyond the sleeve end. The total distance from the housing base flange to the target (assuming nominal gap) is roughly 5.45 inches. Refer to Page 18 of datasheet for XL 8mm tip extension.

Q: Is this housing explosion-proof?
A: The 21000 base housing is mechanically identical to the CA21000. It is rated as a CSA Type 4 Enclosure. However, to meet the full Class I Div 1 Explosion Proof certification listed on page 4, the assembly requires the CA prefix (CA21000). If the application requires strict Div 1/Zone 1 compliance for the enclosure, please verify if the CSA label is required. The internal probe is intrinsically safe when connected to an approved barrier.

Q: Does the 5.2 inch penetration require an internal support?
A: No. Sleeve lengths greater than 12 inches (304 mm) require additional support (Part 37948-01) to avoid resonance. At 5.2 inches, this assembly is well within the unsupported safe operating length.

Q: What cable fits the included "Option 03" grip?
A: The kit includes a multi-range grommet set. It is designed to seal on Bently Nevada standard extension cable outer diameters between 1/8" to 3/8" (3.2mm to 9.5mm) .
