Marca :
Bently NevadaNúmero da peça :
21000-28-05-00-133-04-02Peso :
1.05kgDimensão :
30.5x8.5x8.5cmPaís de origem :
USACódigo SH :
8537101190Descrição :

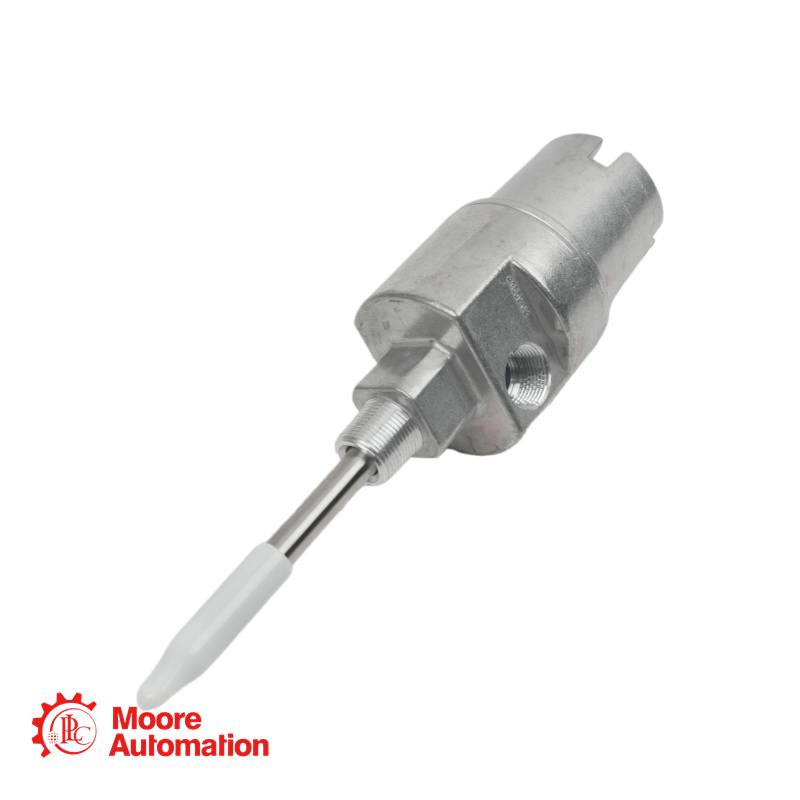

Proximity Probe Housing Assembly
|
Bently Nevada 21000-28-05-00-133-04-02 Proximity Probe Housing Assembly |
|
21000 aluminum probe housing assembly
21000-AA-BB-CC-DDD-EE-FF:
21000:Proximity Probe Housing Assemblies
A: Probe with Connector: 28 3300 XL 8mm probe, selectable hazardous area approvals
B: Probe Cable Length: 05 0.5 m (20 in)
C: Standoff Adapter: 00 No standoff adapter
D: Probe Penetration: 133 13.3 in
E: Fittings: 04 One 3/4-14 NPT plug only
F: Mounting Thread:02 3/4-14 NPT
|
|
Get Best Price - Please Contact Frida |
|
|
Phone/Whatsapp: +86 15359408275 |
|
|
Email: sales5@mooreplc.com |
|
|
Bently Nevada 21000-28-05-00-133-04-02 FAQ |
||
|
What is the measurement range and scale factor?
Linear Range: 2.0 mm (80 mils). Scale Factor: 7.87 V/mm (200 mV/mil) with compatible Proximitor How do I correctly set the initial mechanical gap? The recommended physical gap is 1.27 mm (50 mils), yielding a target installation voltage of approximately −9 VDC to −11 VDC. Can I mix this probe with older Bently Nevada parts? Yes. The 3300 XL 8 mm probe is backward compatible with standard 3300 series 5 mm and 8 mm system components.
Product Series: Bently Nevada 21000, 24701, and 164818 Proximity Probe Housing Assemblies
To externally mount proximity probes, use one of these allmetal Proximity Probe Housing Assemblies:
24701 stainless steel probe housing assembly
The 21000, 24701, and 164818 Proximity Probe Housing
Assemblies consist of the following parts:
A dome cover that screws into the body of the housing
Threaded ports for conduit connections
A probe sleeve of optional length
O-rings
A reverse mount proximity probe
A thread seal
Optional conduit fittings
An optional standoff adapter
|
||
|
