3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor
Marca :
Bently NevadaNúmero da peça :
330102-00-20-05-02-00Peso :
0.05 kgDimensão :
1.5x1.3x65cmPaís de origem :
USACódigo SH :
8537101190Descrição :
Proximity Probe
330102-00-20-05-02-00

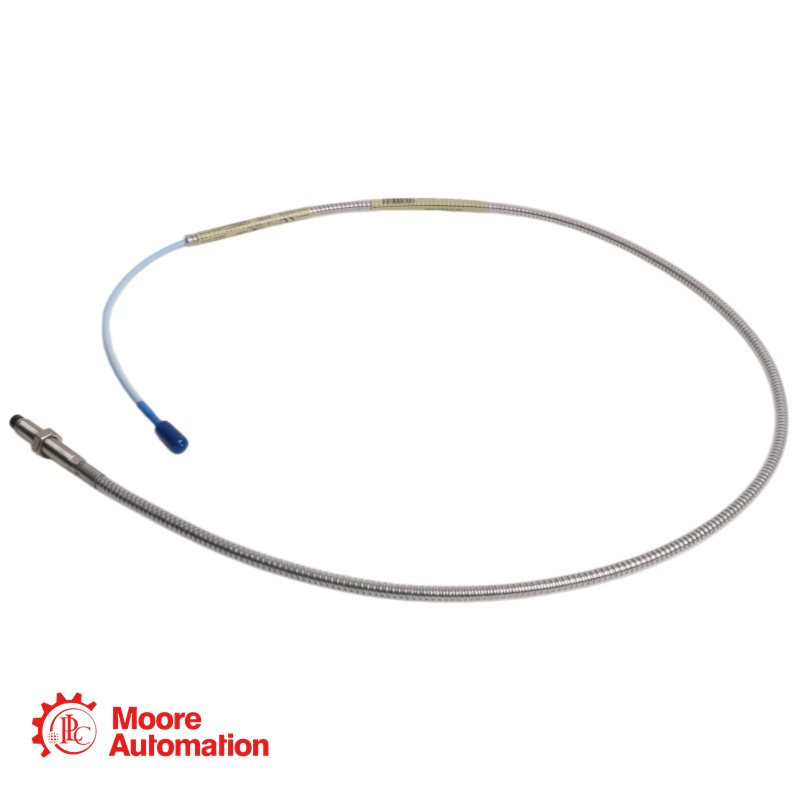

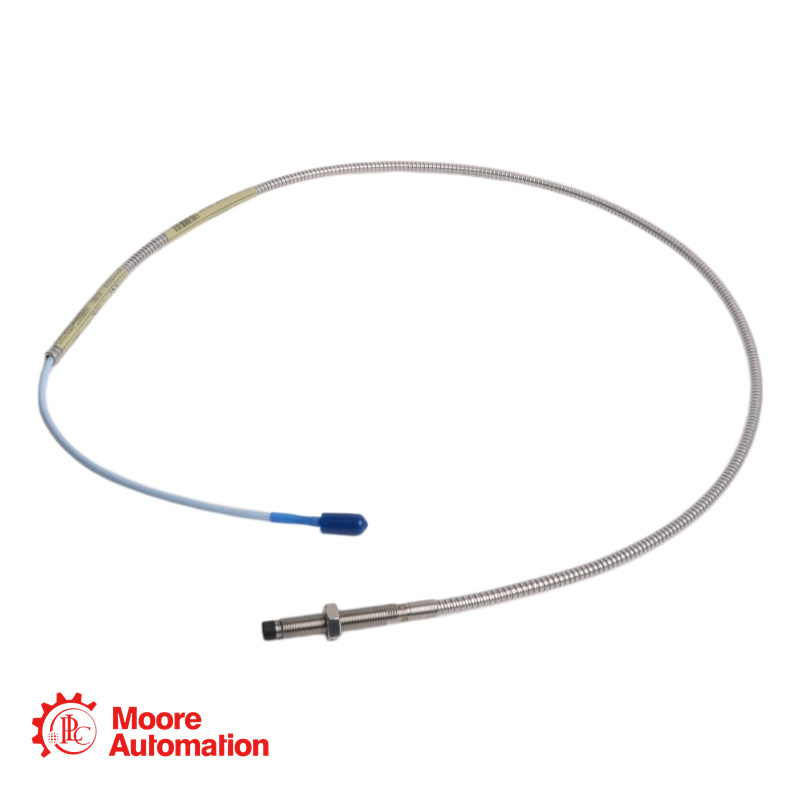

The 330102-00-20-05-02-00 is a standard mount proximity probe from the Bently Nevada 3300 XL 8 mm series. It is a non-contact eddy current sensor designed for measuring shaft vibration, axial (thrust) position, Keyphasor reference, and speed in rotating machinery.
This probe is part of the 3300 XL 8 mm Proximity Transducer System, which is fully compliant with the American Petroleum Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
The probe features a robust stainless steel case and a PPS (Polyphenylene sulfide) tip, ensuring durability in harsh industrial environments. The "-00" agency approval option indicates this specific probe does not carry hazardous area certifications.
|
Specifications: 330102-00-20-05-02-00
Part Number-AA-BB-CC-DD-EE |
|
|
Parameter |
Specification |
|
Base Model |
330102 |
|
Probe Type |
3300 XL 8 mm Probe, 3/8-24 UNF thread, with armor |
|
Unthreaded Length (Option A) |
0.0 inches |
|
Overall Case Length (Option B) |
2.0 inches |
|
Total Length (Option C) |
0.5 meter (1.6 feet) |
|
Connector and Cable Type (Option D) |
02: Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval (Option E) |
00: Not required |
Electrical Specifications
Parameter
Specification
Thread Type
1/4-28 UNF
Armor
Without armor
Mounting Style
Standard forward mount
Linear Range
2.0 mm (80 mils), from approx. 0.25 to 2.3 mm (10 to 90 mils) from target
Output Voltage Range
-1 VDC to -17 VDC (corresponds to linear range)
Incremental Scale Factor (ISF)
7.87 V/mm (200 mV/mil) ±5% (for 1-5m systems)
Frequency Response
0 to 10 kHz (+0, -3 dB)
Probe Tip Material
Polyphenylene sulfide (PPS)
Probe Case Material
AISI 303 or 304 Stainless Steel
Probe Cable
75 Ω triaxial, FEP insulated
Connector Type
Gold-plated brass ClickLoc™ miniature coaxial
Temperature Range (Operating)
-35°C to +120°C (-31°F to +248°F) standard
Temperature Range (Storage)
-51°C to +177°C (-60°F to +350°F)
330905-00-09-10-02-00 FAQ
Q: What is the correct gap setting for this probe?
A: For radial vibration measurements, the recommended gap setting is 1.27 mm (50 mils) , which corresponds to approximately -9 Vdc output. This places the probe in the center of its 2.0 mm (80 mil) linear range.
Q: What is the maximum thread engagement length for the 1/4-28 thread?
A: The maximum recommended thread engagement length is 0.375 inches . Exceeding this length may cause binding during installation. When drilling and tapping a mounting hole for a 1/4-28 probe, a #3 or larger tap drill is recommended.
Q: Is this probe certified for use in hazardous areas?
A: No. The "-00" agency approval option indicates that this specific probe has no hazardous area approvals . For hazardous area applications, a version with the "-05" multiple approvals option would be required.
Q: What is the total cable length of this probe?
A: The total cable length is 0.5 meter (1.6 feet) , as specified by the "05" option .
Q: What is the maximum recommended torque for installing this probe?
A: The maximum recommended torque for standard forward mounted probes is 11.2 N·m (100 in·lb) . The first three threads should only be torqued to 7.5 N·m (66 in·lb). Exceeding these values may damage the probe.
|
