PROXPAC XL Proximity Transducer, Metric
Marca :
Bently NevadaNúmero da peça :
330881-28-00-061-03-02Peso :
1.25kgDimensão :
38.5x9x9.2cmPaís de origem :
USACódigo SH :
8537101190Descrição :
Proximity Transducer Assembly
Brand
Bently Nevada
Part number
330881-28-00-061-03-02
Origin
USA
Description
Proximity Transducer Assembly
Shipping Port
Xiamen，China
Payment
T/T
Lead Time
In stock
Shipment
DHL,UPS,FEDEX,TNT,EMS,SF
Service
One-year warranty
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275
Description of 330881-28-00-061-03-02

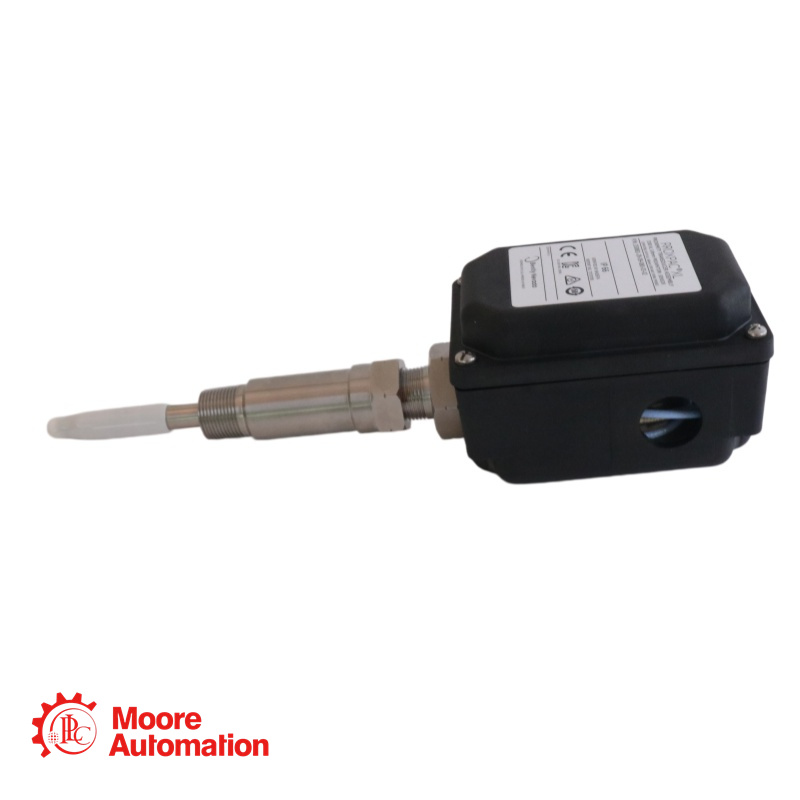

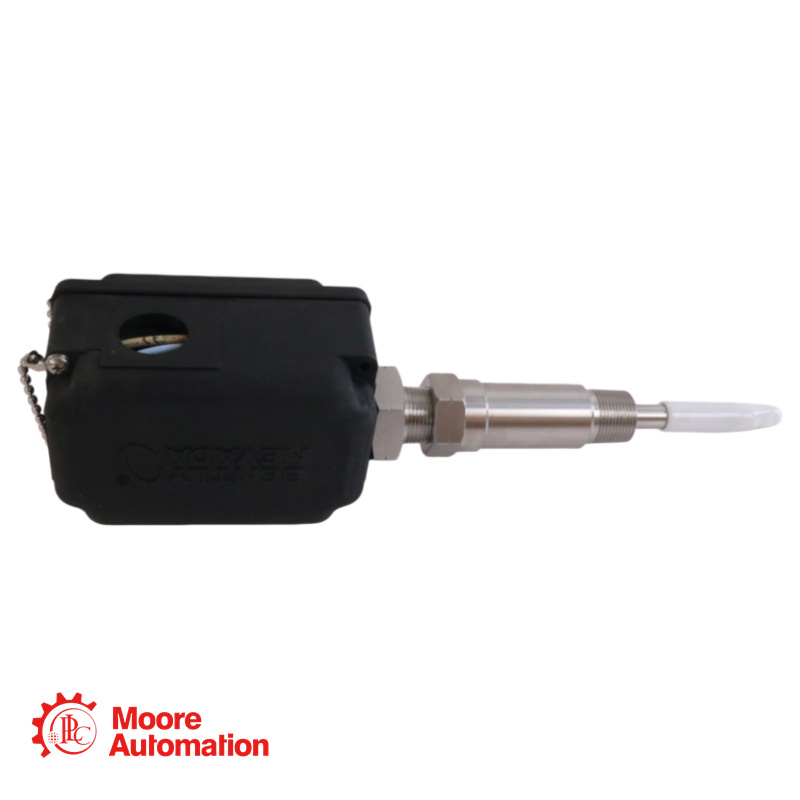

330881-28-00-061-03-02 is Bently Nevada PROXPAC XL Proximity Transducer, Metric. The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor.
Parameter
A: Probe and Approvals Option 28 28 3300 XL 8 mm probe with Multiple Approvals
B: Standoff Adapter Option 00 00 No standoff adapter
C: Probe Penetration Option 061 61 mm Probe Penetration: 61 mm (2.4 in)
D: Fittings Option 03 03 One M20 fitting, two plugs
E: Mounting Thread Option 02 02 3/4-14 NPT (required if ordering Standoff Adapter Option)
FAQ
What is the linear range and recommended gap setting for the PROXPAC XL?
A: The linear range is 2 mm (80 mils) , beginning at approximately 0.25 mm (10 mils) from the target and extending from 0.25 mm to 2.3 mm (10 mils to 90 mils) (approximately –1 Vdc to –17 Vdc). The recommended gap setting is 1.27 mm (50 mils) .
What is the Incremental Scale Factor (ISF) and its accuracy?
A: The Incremental Scale Factor (ISF) is 7.87 V/mm (200 mV/mil) ±5%
Benefits
The product offers a number of benefits, including:
· Wide input voltage range
· High output current
· Overvoltage protection
· Undervoltage protection
· Short-circuit protection
· Safety approvals
· Compact and lightweight design
