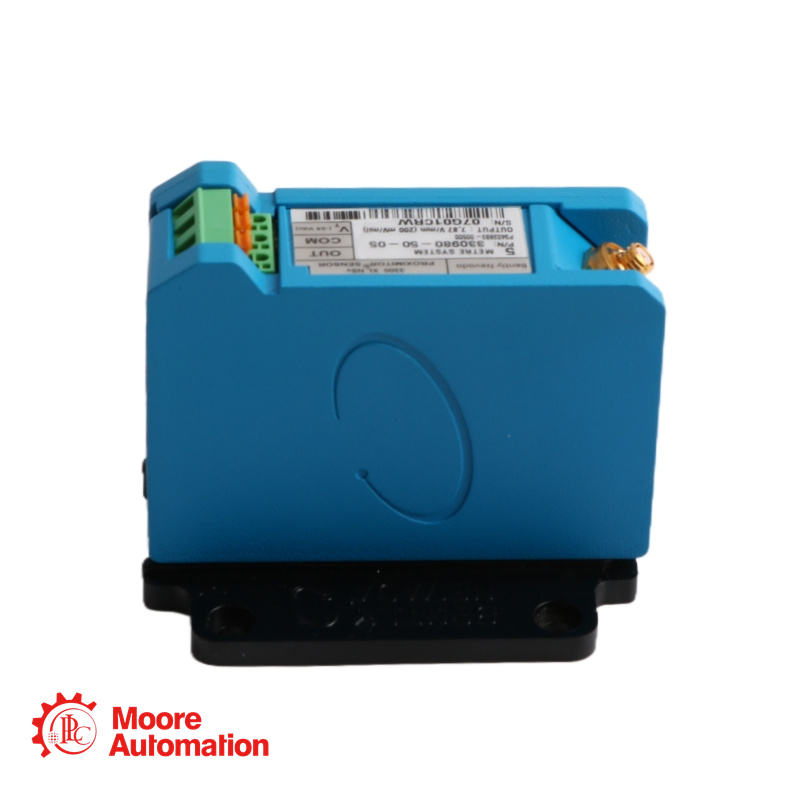

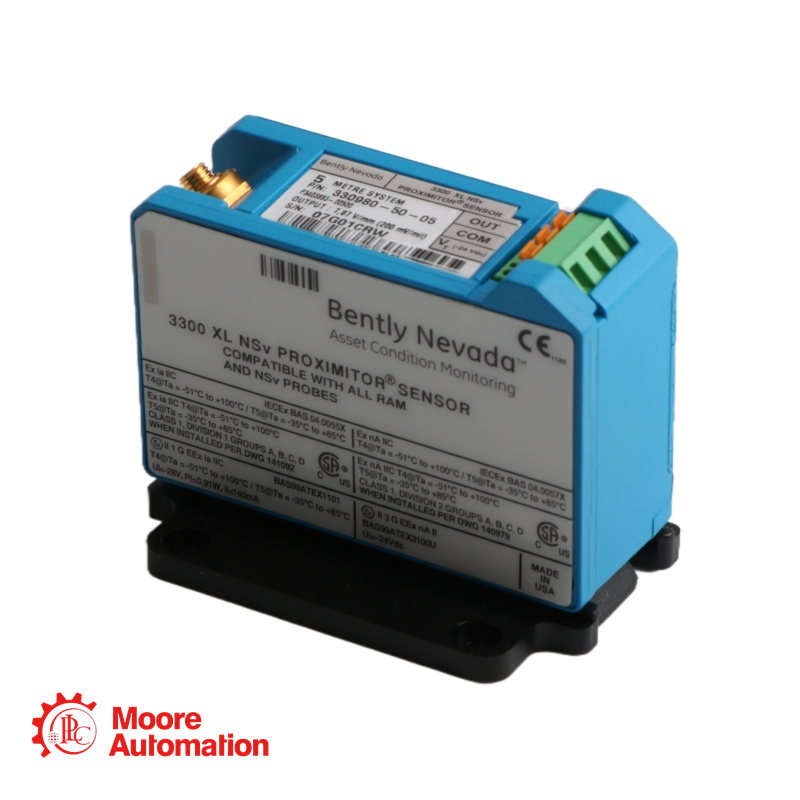

330980-51-00 Bently Nevada NSv Proximitor Sensor

>>>Inquire 330980-51-00

Email: sales5@mooreplc.com

Phone/ Whatsapp: +86 15359408275

>>>330980-51-00

Part Number: 330980-51-00
Product:3300 XL NSv Proximitor Sensor

>>>Specification - 330980-51-00

Input:Accepts one 3300 NSv or 3300 RAM probe + extension cable
System Length (this config):5.0 meters (16.4 feet) – probe + extension cable combined
Power Required:-17.5 Vdc to -26 Vdc (without barriers), -23 Vdc to -26 Vdc (with barriers)
Supply Sensitivity:<2 mV change in output voltage per volt change in input voltage
Output Resistance:50 Ω
Linear Range:1.5 mm (60 mils) from ~0.25 mm to 1.75 mm (~ -1 Vdc to -13 Vdc)
Recommended Gap 1.0 mm (40 mils)
Incremental Scale Factor:(ISF) 7.87 V/mm (200 mV/mil) +12.5% / -20% (including interchangeability error)
Frequency Response:0 to 10 kHz (+0, -3 dB typical) with up to 305 m (1000 ft) field wiring
Field Wiring (max length):305 meters (1000 feet) – 3-conductor shielded triad cable, 16-24 AWG
Operating Temp (Proximitor):-52°C to +100°C (-62°F to +212°F)
Storage Temp (Proximitor):-52°C to +105°C (-62°F to +221°F)

>>> FAQ - 330980-51-00

1. What is the 3300 XL NSv Proximitor Sensor used for?
It is part of the 3300 XL NSv Proximity Transducer System, designed for tight installation requirements on centrifugal air compressors, refrigeration compressors, process gas compressors, and machines with small shafts (<51 mm) or small targets (<15 mm).
2. Does the 330980-51-00 include the probe and extension cable?
No. You must order the 3300 NSv probe (e.g., 330901, 330902, 330903, 330904, 330908, 330909) and 3300 NSv extension cable (330930-AAA-BB-CC) separately. The sum of the probe cable length and extension cable length must equal 5.0 meters.
3. What is the difference between the 330980-51 and 330980-71?
330980-51 = 5.0 meter total system length (e.g., 1.0 m probe + 4.0 m extension cable)
330980-71 = 7.0 meter total system length (e.g., 1.0 m probe + 6.0 m extension cable)
