Marca :
SiemensNúmero da peça :
6SL3210-1PE31-8UL0Peso :
58,00 KgDimensão :
745,00 x 469,00 x 385,00 mmPaís de origem :
GermanyCódigo SH :
8537101190Descrição :
Power Module
Get Price Here:
Sales Manager: Frida
Phone/Whatsapp: +86 15359408275
Email: sales5@mooreplc.com
Basic Information

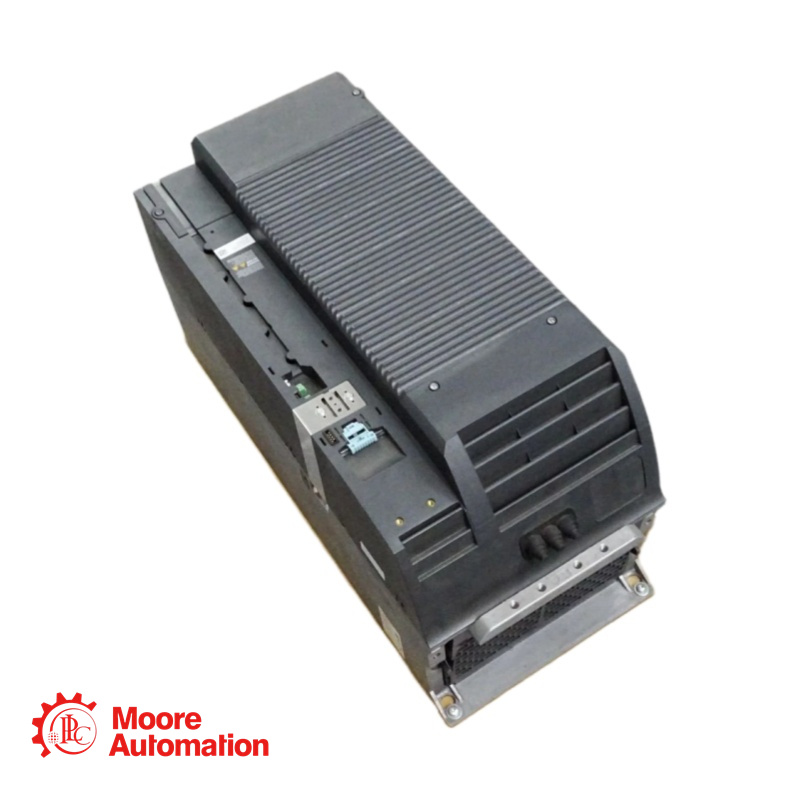

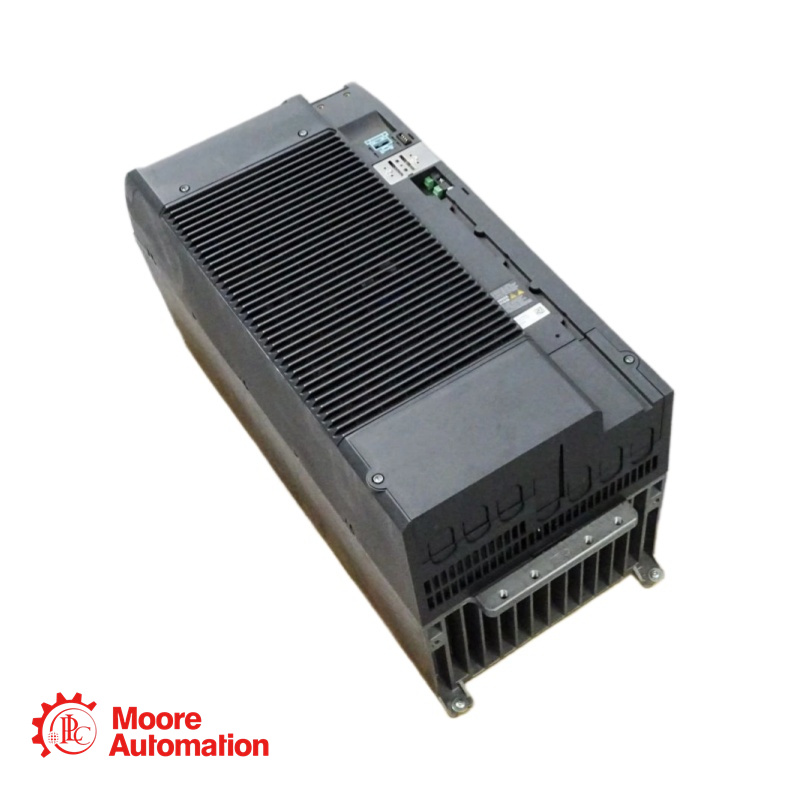

Model: 6SL3210-1PE31-8UL0
Product Family: SINAMICS G120
Hardware Type: Power Module PM240-2
Standard: IP20 / UL Open Type
Product Description
SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 75KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 90kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 708 X 305 X 357 (HXWXD), FSF PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8
Technical Specifications
|
Section |
Parameter (English) |
Specification / Value |
|
General Tech. |
Phases |
3 AC |
|
|
Line Voltage |
380 ... 480 V ±10 % |
|
|
Line Frequency |
47 ... 63 Hz |
|
|
Power Factor (λ) |
0.95 |
|
|
Efficiency (η) |
0.98 |
|
|
Sound Pressure Level |
68 dB (at 1m) |
|
|
Cooling Method |
Internal Air Cooling |
|
|
Cooling Air Req. |
0.153 m³/s (5.403 ft³/s) |
|
Input Current |
Rated Input (LO) |
172.00 A |
|
|
Rated Input (HO) |
154.00 A |
|
Output Ratings |
Rated Voltage |
400 V |
|
|
Rated Current (LO) |
178.00 A |
|
|
Rated Current (HO) |
145.00 A |
|
|
Max Output Current |
290.00 A |
|
|
Pulse Frequency |
4 kHz (Standard setting) |
|
|
Output Freq (Vector) |
0 ... 200 Hz |
|
|
Output Freq (V/f) |
0 ... 550 Hz |
|
Power Ratings |
Rated Power (LO) @400V |
90.00 kW |
|
|
Rated Power (HO) @400V |
75.00 kW |
|
|
Rated Power (LO) @480V |
125.00 hp |
|
|
Rated Power (HO) @480V |
100.00 hp |
|
|
Power Loss |
2.31 kW |
|
️Overload Capability |
Low Overload (LO) |
110% for 57s / 150% for 3s (300s cycle) |
|
|
High Overload (HO) |
150% for 57s / 200% for 3s (300s cycle) |
|
Environment |
Ambient Temp (LO) |
-20 ... 40 °C (-4 ... 104 °F) |
|
|
Ambient Temp (HO) |
-20 ... 50 °C (-4 ... 122 °F) |
|
|
Installation Altitude |
Up to 1000 m (3280.84 ft) without derating |
|
|
Relative Humidity |
Max 95% (Non-condensing) |
Application Fields
Pumps & Fans: Ideal for centrifugal pumps and ventilation systems utilizing the V/f control up to 550 Hz.
Conveyor Technology: High overload capability (200% for 3s) allows for handling of heavy starting loads.
Compressors: Suited for screw and piston compressors requiring stable torque output.
Mixers & Centrifuges: Vector control mode provides high starting torque and precise speed regulation.
General Machinery: Compatible with standard automation buses (PROFINET/PROFIBUS) via CU (Control Unit) selection.
Frequently Asked Questions - 6SL3210-1PE31-8UL0
Q: What is the difference between LO (Low Overload) and HO (High Overload) in practice?
A: LO (178A) is designed for applications with a steady load and slight peaks (e.g., a fan running at constant speed). HO (145A) is designed for heavy-duty applications requiring high starting torque or frequent load spikes (e.g., a crane or extruder). The HO rating allows for 150% current for nearly a full minute without tripping.
Q: Does this 6SL3210-1PE31-8UL0 include a control panel (BOP/IOP)?
A: No. This 6SL3210-1PE31-8UL0 identifies the Power Module only. You must order a separate Control Unit (CU) , such as the CU240E-2, CU240B-2, or CU250S-2, to operate the drive. The Power Module supplies the voltage and current; the Control Unit supplies the intelligence (Profibus, Ethernet/IP, Safety).
Q: What is the required clearance for cooling?
A: A cooling air requirement of 0.153 m³/s. Ensure adequate clearance (typically >100mm above and below for this power range) inside the cabinet to allow this airflow and prevent trip due to overtemperature.
