ABB ACS580-01-05A7-4 General Purpose AC Drive

Contact Frida for ACS580-01-05A7-4 Pricing

Product Overview

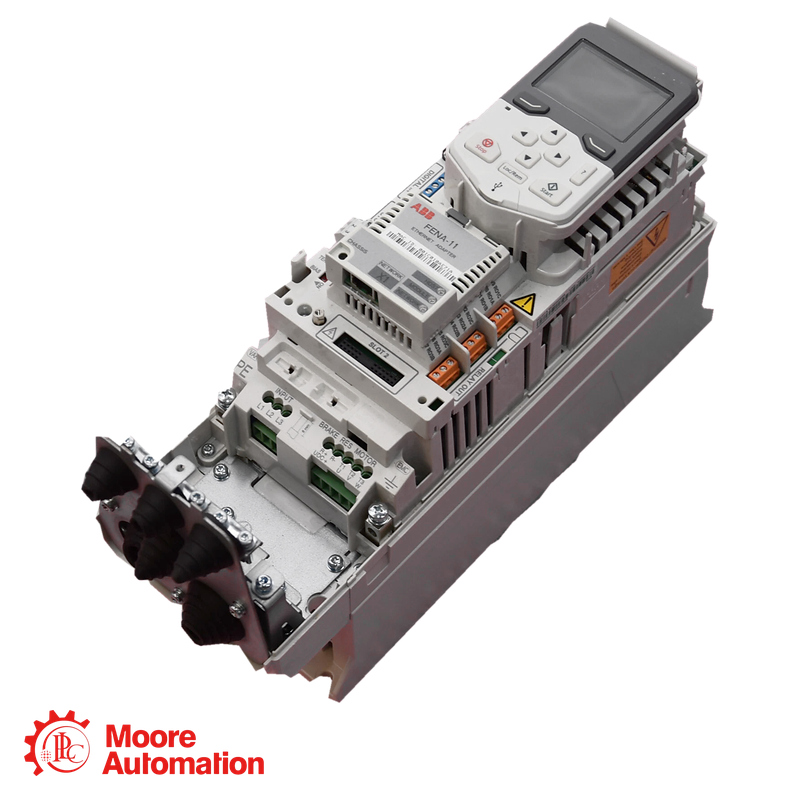

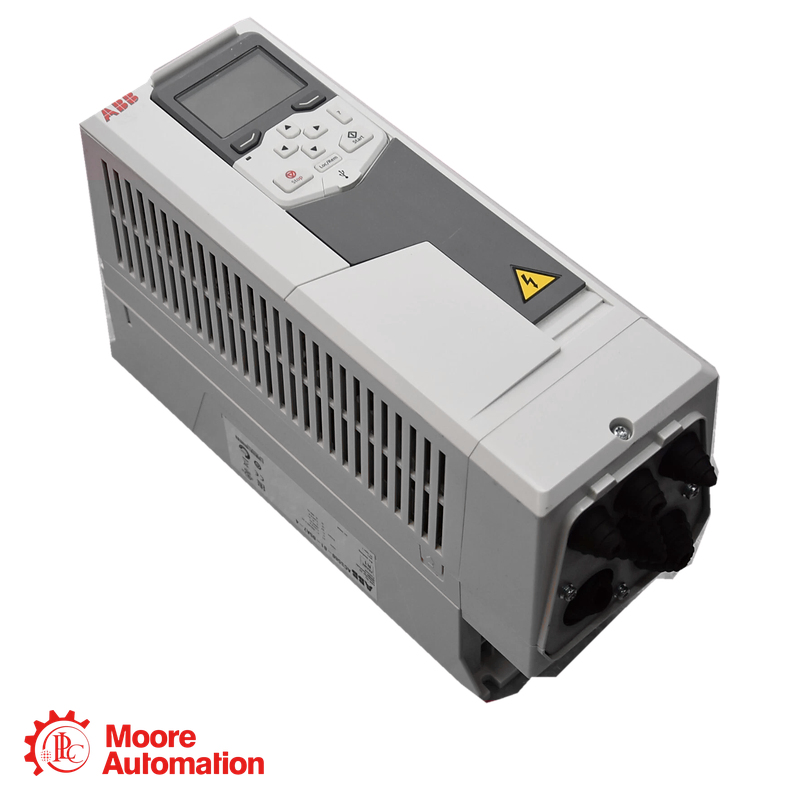

The ACS580-01-05A7-4 is a wall-mounted AC drive designed for controlling the speed and torque of three-phase motors. It belongs to the 380–480 V voltage class and provides a nominal motor rating of 2.2 kW with a rated output current of 5.6 A at 400 V. Its compact R1 frame is suitable for installation in electrical cabinets and controlled indoor environments.  Standard functions include Safe Torque Off, Modbus RTU communication, an assistant control panel, an EMC filter and a built-in brake chopper. These integrated functions help reduce the number of additional components required during panel design and commissioning.

Technical Specifications

Benefits

-Compact wall-mounted installation
-Smooth motor speed regulation
-Reduced mechanical starting stress
-Built-in energy monitoring
-Simplified drive commissioning
-Flexible automation integration
-Integrated motor safety function

Key Highlights

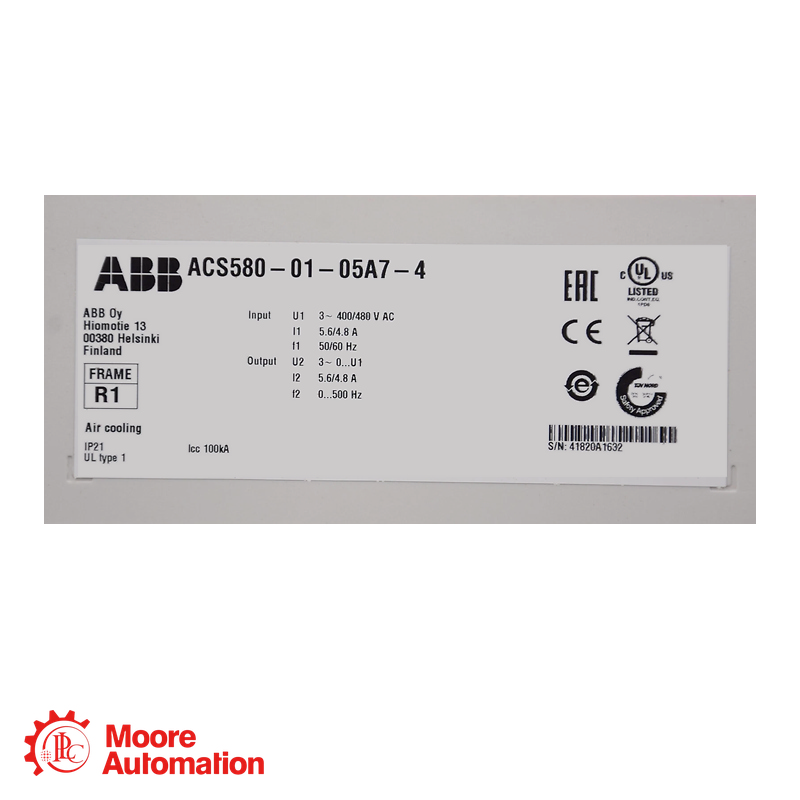

● 2.2 kW / 3 hp motor rating
● 5.6 A nominal current at 400 V
● 380–480 V three-phase supply class
● Compact R1 frame construction
● IP21 standard enclosure
● Built-in braking chopper
● Integrated Safe Torque Off
● Built-in Modbus RTU communication

Customer Questions and Answers

Industries Served

1. Water and Wastewater--The drive can regulate small pumps used for water transfer, circulation and pressure control. Variable-speed operation allows the pump output to follow actual process demand instead of operating continuously at full speed.

2. HVAC and Building Services--The ACS580-01-05A7-4 can control fans, blowers and circulation pumps in ventilation and building-service installations. Adjustable motor speed helps maintain the required airflow or pressure while reducing unnecessary energy consumption.

3. Food and Beverage Processing--Typical duties include conveyors, mixers and process pumps fitted with appropriately rated three-phase motors. Controlled acceleration and deceleration can reduce product disturbance and mechanical shock during production starts and stops.

4. Material Handling and Packaging--The drive can be applied to small conveyors, feeders and packaging machinery where adjustable line speed is required. Motor ramp settings help provide smoother movement when equipment is started, stopped or synchronized with another process stage.

5. General Manufacturing--The unit is suitable for auxiliary machinery, agitators, small centrifugal equipment and other industrial loads within its current and power ratings. Its integrated control functions make it practical for both standalone operation and connection to a wider automation system.
