ABB ACS580-01-09A5-4 4 kW General Purpose AC Drive

Contact Frida for ACS580-01-09A5-4 Pricing

Product Overview

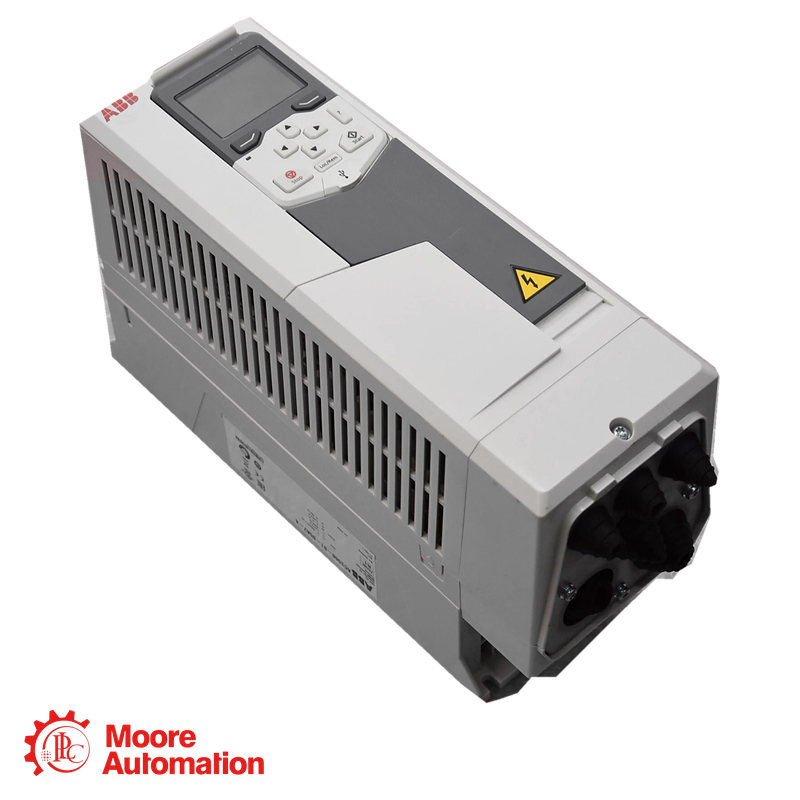

The ABB ACS580-01-09A5-4 is a wall-mounted general-purpose AC drive for speed and torque control of three-phase motors. At 400 V, it delivers a nominal output current of 9.4 A and supports a 4 kW motor under nominal-duty conditions. This model uses the compact R1 frame and has a standard IP21 enclosure. It can be installed in electrical rooms or suitable control cabinets where the drive is protected from conductive dust, condensation and direct water exposure. The drive supports induction, permanent-magnet and synchronous reluctance motors. Standard functions include an assistant control panel, Modbus RTU communication, Safe Torque Off, an EMC filter and a built-in braking chopper. These integrated functions reduce the number of separate components required for many motor-control applications.

Technical Specifications

Benefits

-Compact wall-mounted installation
-Smooth motor speed regulation
-Reduced motor starting current
-Lower mechanical starting stress
-Simplified commissioning process
-Integrated energy monitoring
-Flexible control-system connection
-Built-in motor safety function

Key Highlights

● 4 kW nominal motor rating

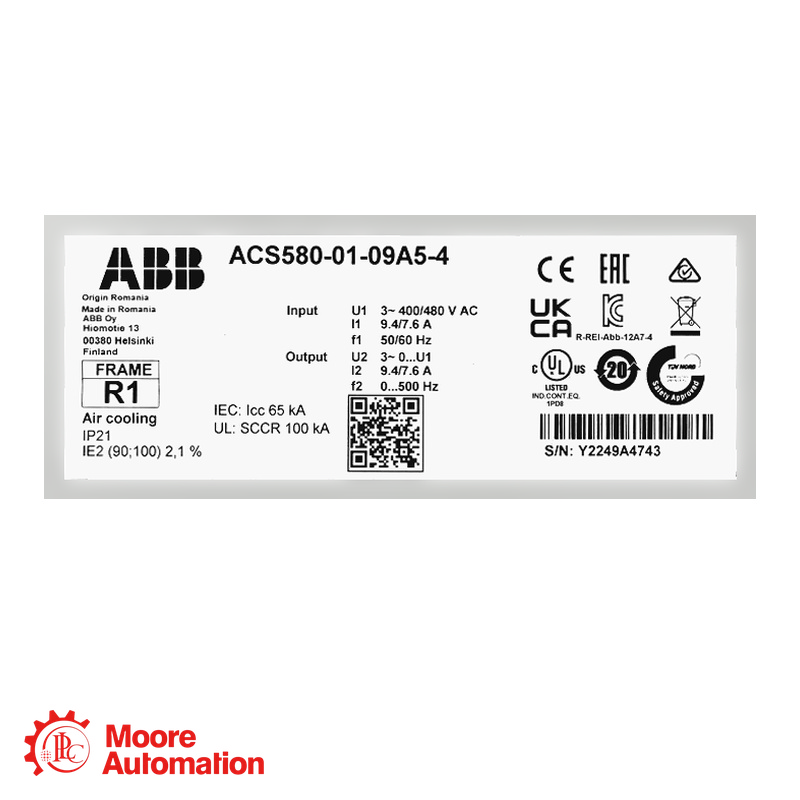

● 9.4 A nominal output at 400 V
● 13 A maximum output current
● 380–480 V three-phase input
● Compact R1 frame construction
● Integrated Safe Torque Off
● Built-in braking chopper
● Standard Modbus RTU interface

Customer Questions and Answers

Industries Served

Water and Wastewater--The ACS580-01-09A5-4 can regulate water-transfer, circulation and pressure-control pumps within its motor rating. Variable-speed operation allows pump output to follow actual system demand, reducing unnecessary throttling and continuous full-speed operation.

HVAC and Building Services--The drive can control fans, blowers and circulation pumps used in ventilation, cooling and building-service systems. Motor speed can be adjusted according to airflow, pressure or temperature requirements instead of relying only on mechanical dampers or valves.

Food and Beverage Processing--Typical duties include product conveyors, mixers and process pumps fitted with compatible three-phase motors. Adjustable acceleration and deceleration can support smoother material movement and reduce mechanical shock during production starts and stops.

Material Handling and Packaging--The drive is suitable for conveyors, feeders and packaging machinery that require repeatable speed adjustment. Programmable ramp times help limit sudden belt movement, product displacement and stress on mechanical transmission components.

General Manufacturing--The ACS580-01-09A5-4 can be used with auxiliary machinery, agitators, fans, pumps and other variable-torque or constant-torque loads. Final selection should consider motor nameplate current, starting torque, overload demand, stopping time and ambient conditions.
