Product Overview

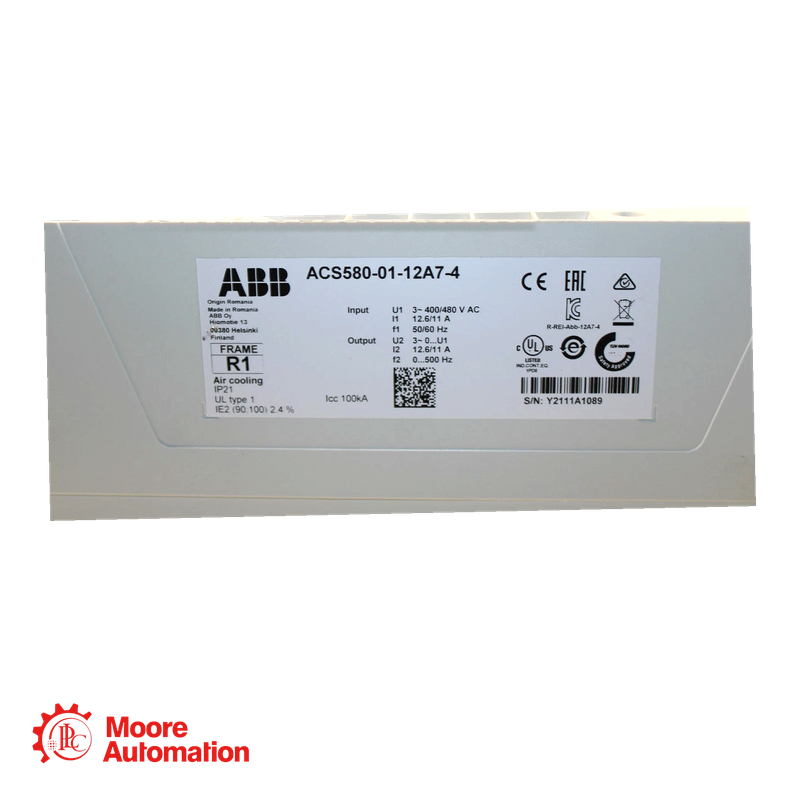

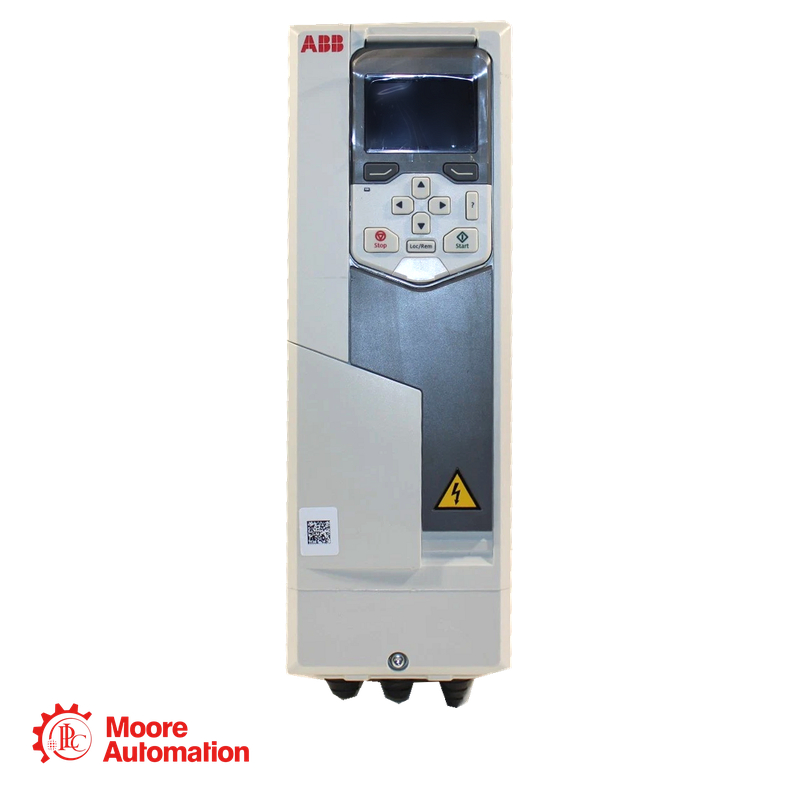

The ABB ACS580-01-12A7-4 is a wall-mounted general-purpose AC drive for regulating the speed and torque of three-phase motors. Its IEC nominal rating is 5.5 kW with an output current of 12.6 A at 400 V. The drive is built in the compact R1 frame and supplied with an IP21 enclosure. It is intended for installation in a suitable indoor electrical environment where airflow is maintained and the equipment is protected from moisture, condensation and conductive contamination. The ACS580 platform supports induction, permanent-magnet and synchronous reluctance motors. An assistant control panel, Safe Torque Off, Modbus RTU communication, an EMC filter and a braking chopper are included in the standard configuration. Engineers can use the drive as a standalone motor controller or integrate it with a wider automation system.

Technical Specifications

Parameter	Specification
Model Number	ACS580-01-12A7-4
Product Type	Wall-mounted AC drive
Input Supply	380–480 V AC, three-phase
Rated Power	5.5 kW at 400 V
Rated Output Current	12.6 A at 400 V
Frame Size	R1
Enclosure Rating	IP21

Benefits

-Controlled motor acceleration
-Reduced starting current
-Adjustable operating speed
-Lower mechanical starting stress
-Compact wall-mounted installation
-Simplified parameter setup
-Integrated energy monitoring
-Flexible automation connectivity

Key Highlights

● 5.5 kW nominal IEC motor rating
● 12.6 A nominal output at 400 V
● 15.3 A maximum output current
● 380–480 V three-phase supply class
● Compact R1 frame design
● Integrated Safe Torque Off
● Standard Modbus RTU communication

Customer Questions and Answers

Customer Question	Engineering Answer
What motor size can the ACS580-01-12A7-4 control?	Its nominal IEC rating is 5.5 kW and 12.6 A at 400 V. The connected motor should be selected by comparing its nameplate current, voltage, torque demand and duty cycle with the appropriate drive rating.
What is the heavy-duty rating at 400 V?	ABB specifies a heavy-duty output current of 9.4 A with a corresponding motor rating of 4 kW. Use these values when the load requires greater overload capability than a standard variable-torque application.
Can this model operate on a 480 V supply?	Yes. It belongs to the 380–480 V three-phase voltage class. At 480 V, ABB lists 12 A and 7.5 hp for light-duty operation, or 7.6 A and 5 hp for heavy-duty operation.
Is additional braking hardware required?	The R1 frame includes a braking chopper, but the braking resistor is selected separately. Resistor sizing must consider motor power, load inertia, deceleration time, braking frequency and regenerated energy.
Which checks are important before commissioning?	Verify the supply voltage, motor nameplate data, grounding, cable size, current limits, speed limits, ramp settings, rotation direction, cabinet cooling and Safe Torque Off wiring. Motor identification settings should also match the connected motor type.

Industries Served

Water and Wastewater--The ACS580-01-12A7-4 can control pumps used for water transfer, circulation, filtration and pressure regulation. Adjusting motor speed to actual flow demand can reduce throttling losses and avoid unnecessary continuous operation at full speed.

Food and Beverage Processing--Suitable duties may include conveyors, mixers and process pumps fitted with compatible three-phase motors. Controlled acceleration and deceleration can provide steadier product movement and reduce mechanical shock during production starts and stops.

Material Handling and Packaging--The unit can operate conveyors, feeders and packaging equipment requiring adjustable speed. Programmable ramp times help reduce sudden belt movement, load shifting and stress on couplings, gearboxes and other transmission components.

General Manufacturing--The ACS580-01-12A7-4 can be applied to agitators, fans, pumps and auxiliary production machinery. Selection should account for motor nameplate current, starting torque, overload profile, required stopping time and the surrounding operating environment.

Brand	ABB
Part number	ACS580-01-12A7-4
Origin	Sweden
Shipping Port	Xiamen，China
Payment	T/T
Shipment	DHL,UPS,FEDEX,TNT,EMS,SF
Service	One-year warranty

Supply Advantages

✔ In Stock

✔ Worldwide shipping support

✔ Tested before shipment

✔1 Year Warranty

Product Supply & Ordering Information

Parameter	Ordering Information
Manufacturer	ABB
Required Model	ACS580-01-12A7-4
Required Quantity	State the number of drive units required
Delivery Destination	Provide the destination country, city and postal code
Order Verification	Provide the complete model number and a clear product-label photograph when available
Final Confirmation	Check the model number, quantity, package scope, lead time and shipping method before ordering
