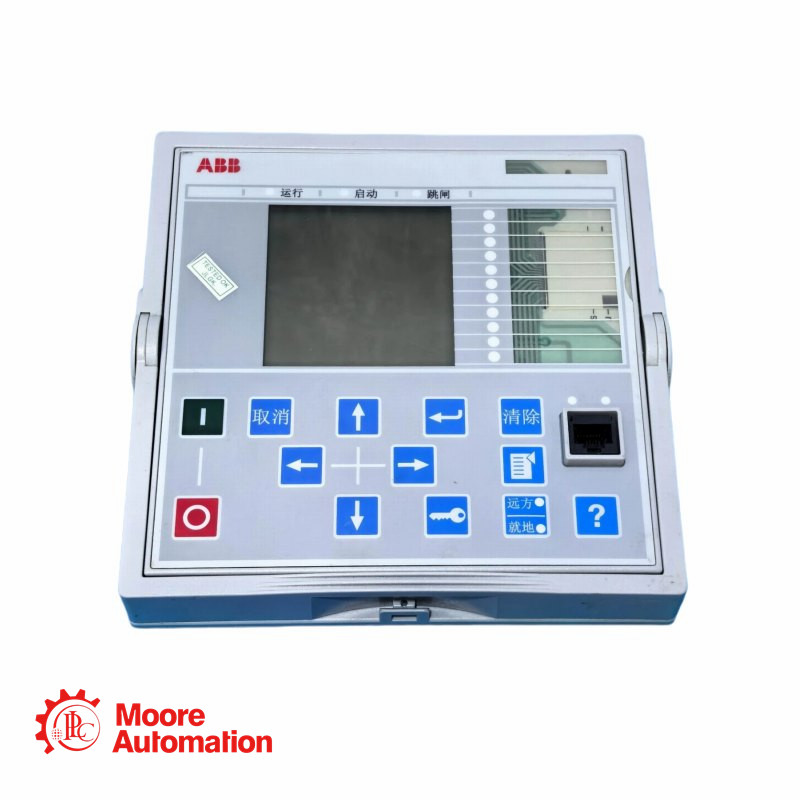

ABB DIS0006 is a REF615 local HMI display panel for relay operation, monitoring, event viewing, and feeder protection control.
Marca :
ABBNúmero da peça :
DIS0006 2RAA005802A0003G REF615Peso :
1.0 kgDimensão :
17.7cm x 17.7cm x 14.4cmPaís de origem :
SWEDENCódigo SH :
8537101190Descrição :
Local HMI display panel for ABB REF615 feeder protection relay operation.
ABB DIS0006 2RAA005802A0003G is a local HMI display panel for REF615 feeder protection and control relays. It provides front-panel access for measurement viewing, alarm indication, event records, relay operation, and basic configuration. Designed for ABB Relion 615 series systems, it supports reliable substation and industrial power distribution operation where fast local diagnostics and clear relay status visibility are required.
|
Contact Sales Manager Nina |
Whatsapp：+86 18030235312 |
|
Email：sales8@askplc.com |
|
Technical Parameters |
|
|
Product Type |
Local HMI display panel |
|
Compatible Relay Series |
ABB Relion 615 series, REF615 feeder protection relay |
|
Main Function |
Local monitoring, relay operation, alarm indication, event viewing |
|
Display Type |
Graphical LCD local HMI |
|
Protection Rating |
REF615 front side IP54; rear terminals IP20 |
|
Operating Temperature |
-25°C to +55°C continuous |
|
Storage Temperature |
-40°C to +85°C |
|
FAQ |
|
Q1: Is DIS0006 2RAA005802A0003G a complete REF615 relay? |
|
A: No. It is generally supplied as the local HMI display panel for ABB REF615 relay systems. Buyers should check whether they need only the display panel or a complete REF615 relay unit. |
|
Q2: What should be verified before ordering this part? |
|
A: Confirm the exact part number, relay model, hardware revision, front-panel language, connector layout, and whether the existing relay uses the same HMI version. |
|
Q3: Can this panel restore local operation if the existing REF615 display fails? |
|
A: It can help restore front-panel viewing and operation when the fault is limited to the HMI panel. If the relay CPU, power supply, or I/O boards are damaged, further repair may be required. |
|
Q4: Is it suitable for harsh power distribution environments? |
|
A: Yes, the REF615 platform is designed for utility and industrial distribution protection, but installation must follow ABB wiring, grounding, and environmental requirements. |
|
