 /Bently Nevada 177230-01-02-00 Seismic Transmitter

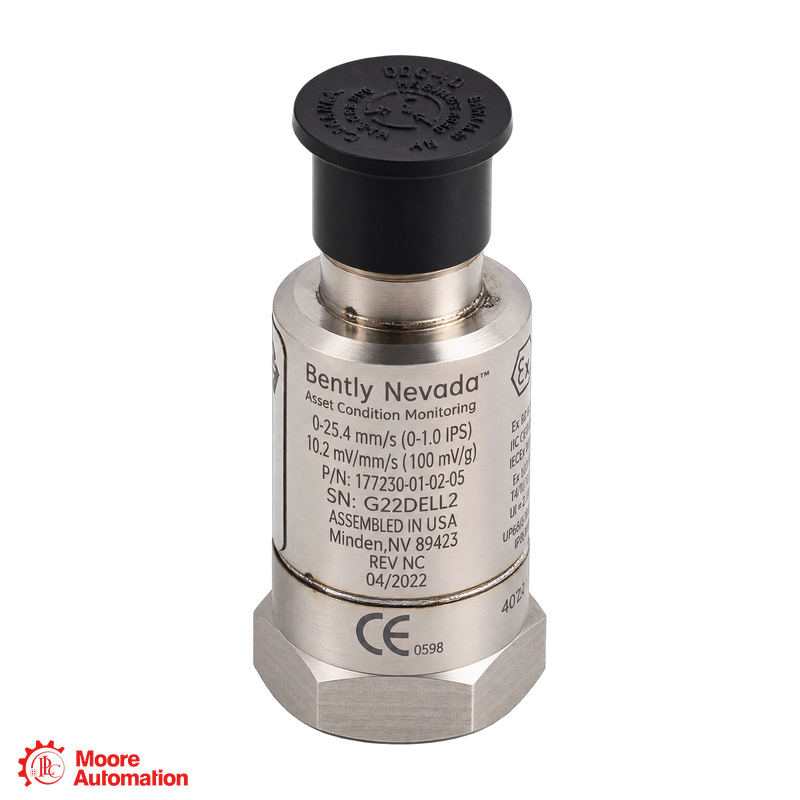

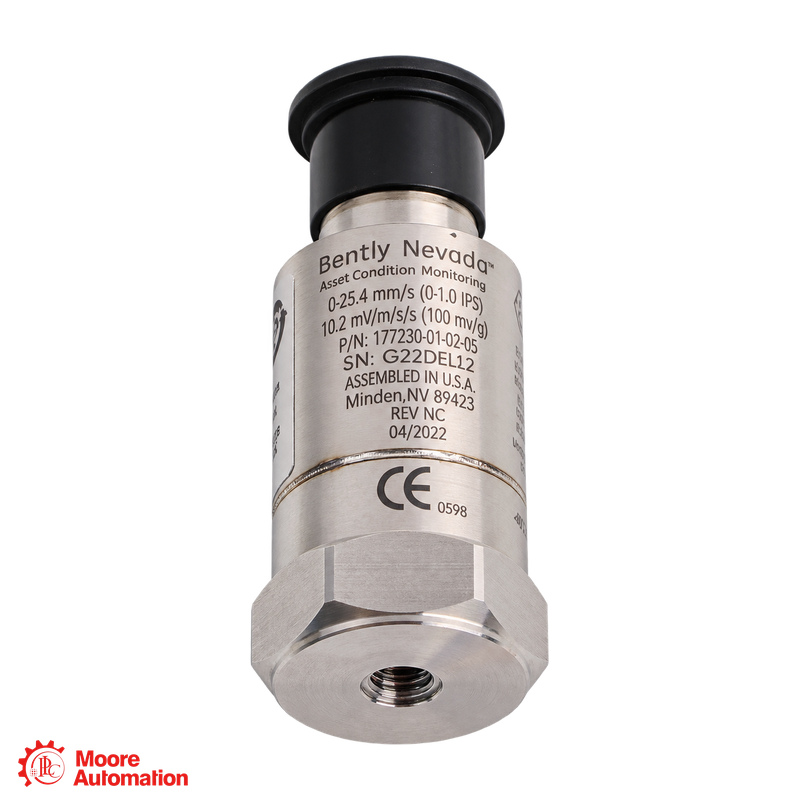

Bently Nevada 177230-01-02-00 Seismic Transmitter
Bently Nevada 177230-01-02-00 Seismic Transmitter
Bently Nevada 177230-01-02-00 Seismic Transmitter

Bently Nevada 177230-01-02-00 Seismic Transmitter

177230 SERIES · SEISMIC TRANSMITTER

177230-01-02-00

177230-01-02-00 — a Bently Nevada loop-powered seismic transmitter configured for a 0–25.4 mm/s measurement range and 3 Hz to 1 kHz peak frequency response.

HEIGHT66.0 mm
DIAMETER25.4 mm
WEIGHT131 g
SUPPLY12–30 Vdc
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 177230 SEISMIC TRANSMITTER
177230 SEISMIC TRANSMITTER

177230-01-02-00

4–20 mA loop · 0–25.4 mm/s · 3 Hz–1 kHz peak

177230 Seismic Transmitter

LOOP-POWERED VIBRATION TRANSMITTER
177230-01-02-00 — A loop-powered Bently Nevada seismic transmitter configured for a 0–25.4 mm/s measurement range and a 3 Hz to 1 kHz peak frequency response.
CONFIGURATION NOTE
177230 identifies the Seismic Transmitter family; 01 specifies a 0–25.4 mm/s measurement range; 02 specifies a 3 Hz to 1 kHz peak frequency response. The trailing 00 identifier should be confirmed against the product nameplate because the current public datasheet does not define it.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

177230
Product familyLoop-powered Seismic Transmitter
01
Measurement range0–25.4 mm/s (0–1.0 in/s)
02
Frequency response3 Hz to 1 kHz · peak
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
177230 SEISMIC TRANSMITTER

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT66.0 mm
DIAMETER25.4 mm
WEIGHT131 g
SUPPLY12–30 Vdc
Exact-model configuration and engineering data.
Configuration note177230 identifies the Seismic Transmitter family; 01 specifies a 0–25.4 mm/s measurement range; 02 specifies a 3 Hz to 1 kHz peak frequency response. Confirm the trailing 00 identifier against the product nameplate because the current public datasheet does not define it.
General Information −
BrandBently Nevada
Part number177230-01-02-00
Product typeSeismic Transmitter
Product family177230
Output signal4–20 mA
Excitation12–30 Vdc
Measurement and Output ＋
Measurement range0–25.4 mm/s (0–1.0 in/s)
Frequency response3 Hz to 1 kHz · peak
Settling timeLess than 15 seconds within 2%
Dynamic signal sensitivity10.2 mV/m/s² (100 mV/g) ±20%
Dynamic frequency response2.5 Hz to 10 kHz ±10%
Dynamic full scale147 m/s² (15 g) peak
Environmental and Mechanical ＋
Operating temperature−40 to +85 °C
HumidityUp to 100% non-submerged
Housing material316L stainless steel
Weight131 g typical
Dimensions25.4 mm diameter × 66.0 mm height
Installation Interface ＋
Connector3-pin MIL-C-5015
Mounting threadsM6 × 1, M8 × 1.25, or 1/4-28 UNF
Mounting torque4–7 N·m
Sensing elementCeramic / shear
FAQ

Questions Buyers Ask Most

What measurement configuration does 177230-01-02-00 specify?＋

177230-01-02-00 uses code 01 for a 0–25.4 mm/s measurement range and code 02 for a 3 Hz to 1 kHz peak frequency response. Confirm the trailing 00 identifier against the product nameplate because it is not defined in the current public datasheet.

What output and control-system interface does 177230-01-02-00 provide?＋

177230-01-02-00 is a loop-powered seismic transmitter with a 4–20 mA output for PLC, DCS or SCADA systems and a separate dynamic acceleration signal for diagnostics.

What environmental limits apply to 177230-01-02-00?＋

177230-01-02-00 is specified for −40 to +85 °C operation. Its sensor assembly is hermetically sealed and supports humidity up to 100% in non-submerged service.

How is 177230-01-02-00 mounted and connected?＋

177230-01-02-00 uses a 3-pin MIL-C-5015 connector. Available mounting threads include M6 × 1, M8 × 1.25 and 1/4-28 UNF, with 4–7 N·m recommended mounting torque.

What information should accompany a quote for 177230-01-02-00?＋

Provide the complete 177230-01-02-00 code, quantity, required mounting thread, measurement and output requirements, and the approval details shown on the product nameplate.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 177230-01-02-00 label, quantity, mounting thread, measurement requirements and nameplate approval details for configuration checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
177230-01-02-00

Official manufacturer documentation for the 177230 Seismic Transmitter and the verified 01 and 02 ordering fields.

Official manufacturer datasheet

Bently Nevada Datasheet 177232 documents the 177230 Seismic Transmitter, code 01 for a 0–25.4 mm/s measurement range, and code 02 for a 3 Hz to 1 kHz peak frequency response.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

MACHINERY MONITORING SIGNAL RELATIONSHIP

How 177230-01-02-00 Fits into a Machinery Monitoring System

Bently Nevada is the manufacturer. 177230-01-02-00 is a loop-powered seismic transmitter that converts machinery vibration to a 4–20 mA signal for a PLC, DCS or SCADA system and also provides a dynamic acceleration signal for diagnostics.

Bently Nevada · BRAND
Bently Nevada 177230 SeriesPRODUCT FAMILY · SEISMIC TRANSMITTER
MEASUREMENT RANGE

0–25.4 mm/s

Code 01 specifies a 0–25.4 mm/s (0–1.0 in/s) vibration range.

FREQUENCY RESPONSE

3 Hz–1 kHz Peak

Code 02 specifies a 3 Hz to 1 kHz peak frequency response.

CONTROL OUTPUT

4–20 mA Loop Signal

The loop-powered output connects directly to PLC, DCS or SCADA inputs.

System relationship: measured machinery vibration is converted to a proportional 4–20 mA control-system signal, while the dynamic acceleration output supports detailed diagnostic analysis.
APPLICATION AREAS

Functions and application roles for 177230-01-02-00

Velocity MeasurementProvides the configured 0–25.4 mm/s measurement range for machinery vibration.
Loop-Powered IntegrationConnects a proportional 4–20 mA signal to PLC, DCS or SCADA systems.
APPLICATION CENTER 177230-01-02-00 177230 Seismic Transmitter
Dynamic SignalProvides a 10.2 mV/m/s² (100 mV/g) dynamic acceleration signal for diagnostics.
Industrial InstallationUses a 316L stainless-steel housing, 3-pin MIL-C-5015 connector and threaded stud mounting.
