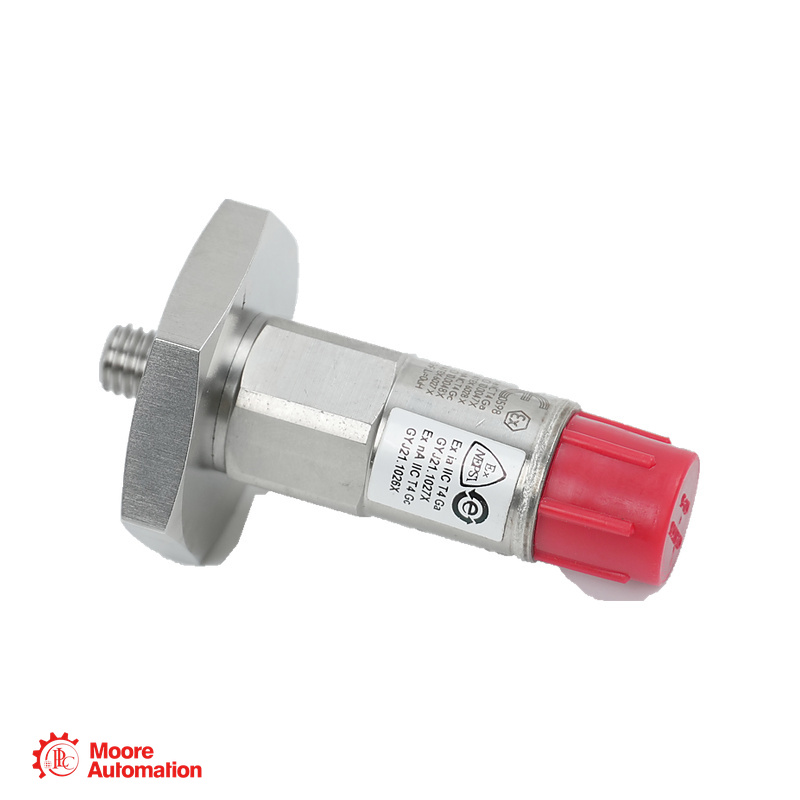

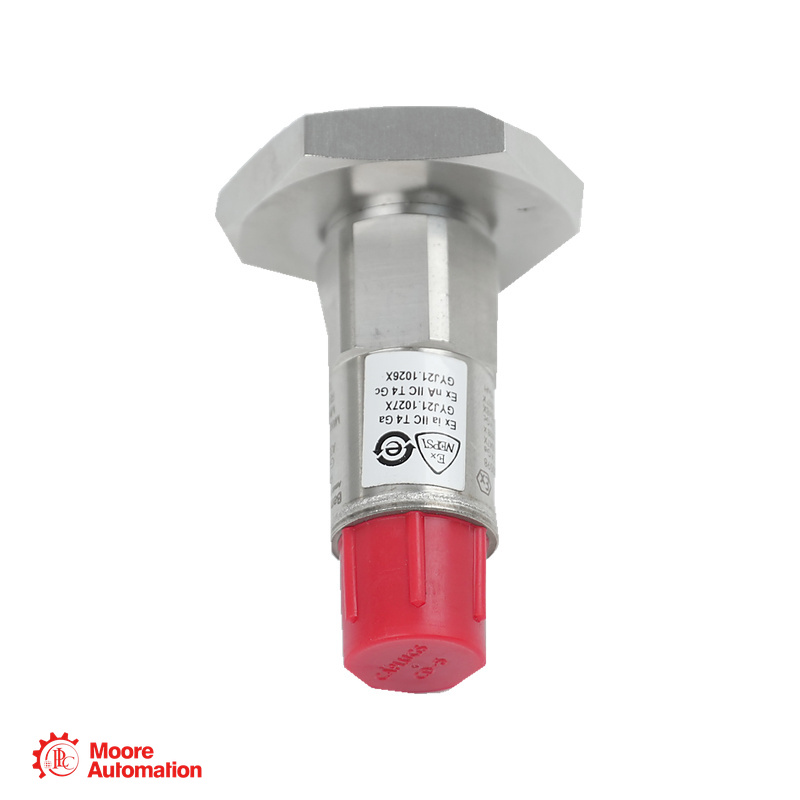

 /Bently Nevada 200150-05-CN Trendmaster 1/4-28 UNF Plate-Stud Accelerometer
Bently Nevada 200150-05-CN Trendmaster 1/4-28 UNF Plate-Stud Accelerometer
Bently Nevada 200150-05-CN Trendmaster 1/4-28 UNF Plate-Stud Accelerometer
Bently Nevada 200150-05-CN Trendmaster 1/4-28 UNF Plate-Stud Accelerometer

Bently Nevada 200150-05-CN Trendmaster 1/4-28 UNF Plate-Stud Accelerometer

200150 TRENDMASTER ACCELEROMETER

200150-05-CN

200150-05-CN — a Bently Nevada 200150 general-purpose accelerometer for case-mounted machinery vibration monitoring with Trendmaster systems.

ACCELEROMETER200150 series
SENSITIVITY100 mV/g
MOUNTING05 stud option
RANGE±25 g
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 200150 TRENDMASTER ACCELEROMETER
200150 GENERAL-PURPOSE ACCELEROMETER

200150-05-CN

General-purpose acceleration sensing · 05 mounting option

200150 Trendmaster 2000 / Trendmaster Pro Accelerometer

ACCELEROMETER IDENTITY
200150-05-CN — A 200150 general-purpose case-mounted accelerometer used in Bently Nevada Trendmaster machinery monitoring systems.
CONFIGURATION NOTE
200150 identifies the general-purpose Trendmaster accelerometer; 05 selects the 3/8-24 to 1/4-28 UNF, 1-3/8 in hex plate stud.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

200150
Product familyTrendmaster accelerometer
05
Mounting option3/8-24 to 1/4-28 UNF, 1-3/8 in hex plate stud
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
200150 TRENDMASTER ACCELEROMETER

Engineering data at a glance

Click “+” to expand more specifications.

ACCELEROMETER200150 series
SENSITIVITY100 mV/g
MEASUREMENT RANGE±25 g
MOUNTING05 stud option
200150 family electrical data and the selected mounting hardware.
Configuration note 200150 identifies the Trendmaster accelerometer; 05 selects the 3/8-24 to 1/4-28 UNF, 1-3/8 in hex plate stud.
General Information −
BrandBently Nevada
Supplied reference200150-05-CN
Product typeTrendmaster 2000 / Trendmaster Pro accelerometer
Product family200150 Trendmaster accelerometer
Mounting hardware3/8-24 to 1/4-28 UNF, 1-3/8 in hex plate stud
Sensitivity100 mV/g ±12%
Signal and Electrical ＋
Frequency response10–1000 Hz ±10%
Excitation voltage4.7–5.5 Vdc
Measurement range±25 g
Environmental and Mechanical ＋
Operating temperature-40 to +105 °C
Housing material316L stainless steel
Top connector5-pin 1/2-20
Monitoring Role ＋
The 200150 accelerometer senses casing vibration acceleration for Trendmaster ProTIMs and Trendmaster 2000. Match the selected mounting stud and monitor input before installation.
Source: Baker Hughes 200150, 200155 and 200157 Accelerometers Datasheet 164986 Rev. Y (200150 family data).
FAQ

Questions Buyers Ask Most

What mounting stud is specified for 200150-05-CN?＋

200150-05-CN uses mounting option 05, which specifies a 3/8-24 to 1/4-28 UNF, 1-3/8 in hex plate stud for the 200150 accelerometer.

How does 200150-05-CN fit a Trendmaster monitoring channel?＋

200150-05-CN is a general-purpose case-mounted accelerometer for Trendmaster 2000 or Trendmaster Pro. The official datasheet lists the standard ProTIM acceleration-to-velocity channel type (-01) for 200150.

What measurement range applies to 200150-05-CN?＋

200150-05-CN belongs to the 200150 series, whose official frequency range is 10–1000 Hz (±10%) and measurement range is ±25 g. Confirm the monitoring channel requirements before selection.

What installation checks matter for 200150-05-CN?＋

200150-05-CN uses the 3/8-24 to 1/4-28 UNF, 1-3/8 in hex plate stud. The 200150 datasheet lists a 3/8-24 female sensor mounting thread and 2.7–6.8 N·m mounting torque; confirm the selected stud and mating 5-pin connector.

What information should accompany a quotation for 200150-05-CN?＋

200150-05-CN should be quoted using the exact supplied part-number string, required quantity, 05 mounting option, Trendmaster interface and any site-specific approval documentation.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the exact 200150-05-CN reference, mounting hardware, Trendmaster interface, quantity and site approval requirements for confirmation.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
200150-05-CN

The Baker Hughes 200150 family datasheet documents the accelerometer and mounting options. No manufacturer-hosted PDF was confirmed for this exact supplied identifier.

Official datasheet status

No exact 200150-05-CN manufacturer PDF was confirmed in the public documentation. The Baker Hughes 200150 accelerometer datasheet supports the verified family and mounting facts shown on this page. Contact Product Specialist Frida for the exact document and ordering check.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The Baker Hughes 200150, 200155 and 200157 Accelerometers Datasheet (164986 Rev. Y) is a family reference; confirm documentation for the supplied complete identifier.

ACCELEROMETER SIGNAL RELATIONSHIP

How 200150-05-CN Fits into Trendmaster Machinery Monitoring

Bently Nevada is the manufacturer. 200150-05-CN is a 200150 case-mounted accelerometer. It converts machine acceleration into a differential voltage signal for compatible Trendmaster ProTIM or Trendmaster 2000 monitoring.

Bently Nevada · BRAND
Bently Nevada 200150 SeriesPRODUCT FAMILY · ACCELEROMETER
MACHINE INPUT

Machine vibration

The mounted 200150 accelerometer senses vibration acceleration on the machine casing.

SENSOR OUTPUT

Differential Voltage

The 200150 accelerometer converts piezoelectric charge to a differential voltage proportional to acceleration.

TRENDMASTER INPUT

Trendmaster ProTIM

A compatible ProTIM acceleration-to-velocity channel (-01) or Trendmaster 2000 system receives the signal.

System relationship: machine vibration is sensed by the 200150 accelerometer and passed as a differential voltage signal to a compatible Trendmaster interface.
APPLICATION AREAS

Application roles for 200150-05-CN

Trendmaster MonitoringThe 200150 accelerometer supports general-purpose case-mounted machinery vibration monitoring with Trendmaster systems.
General Machinery MonitoringThe 200150 transducer can operate with Trendmaster 2000 and the standard Trendmaster ProTIM acceleration-to-velocity channel (-01).
APPLICATION CENTER 200150-05-CN Trendmaster general-purpose accelerometer
ProTIM and TIM InterfaceThe official datasheet lists 200100 dual acceleration-to-velocity flexiTIM and 89130-01 TIM interfaces for the 200150.
Maintenance PlanningUse compatible vibration monitoring data to guide maintenance planning on rotating machinery.
