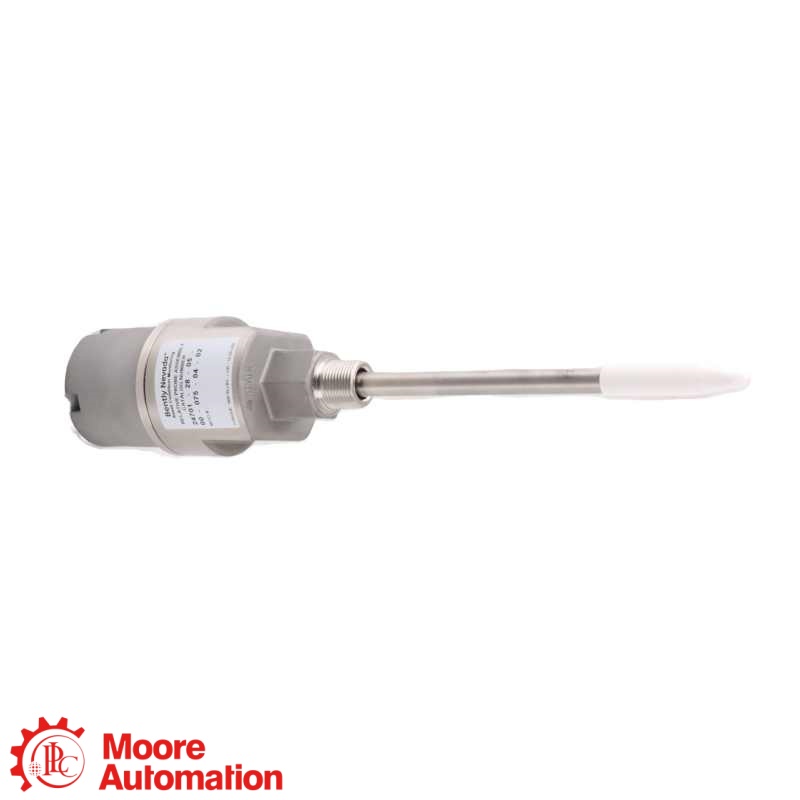

Bently Nevada 24701-34-05-00-041-03-02 Stainless Steel Proximity Probe Housing Assembly

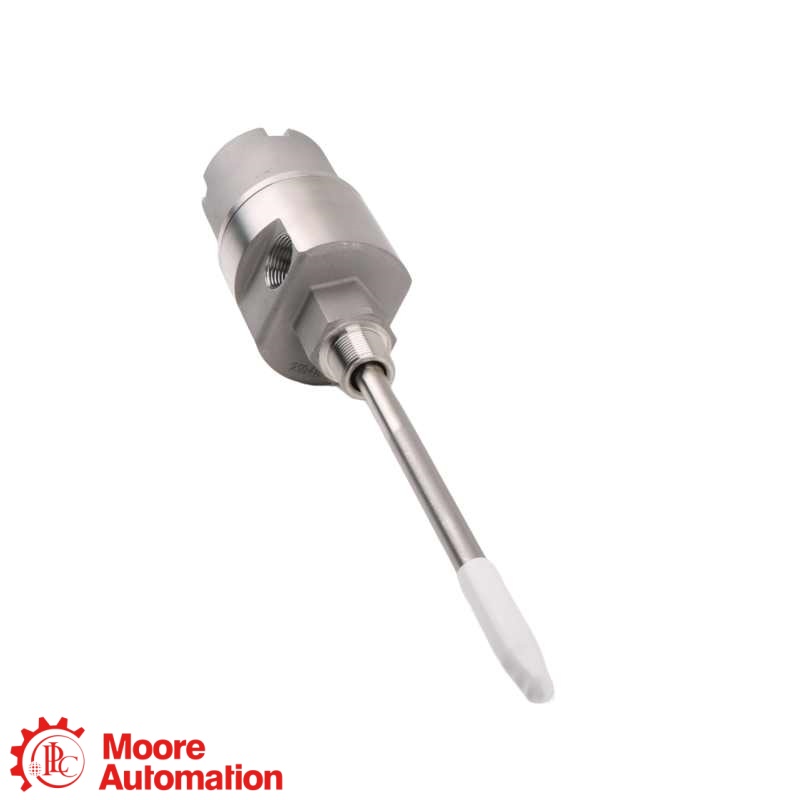

Bently Nevada 24701-34-05-00-041-03-02 Stainless Steel Proximity Probe Housing Assembly
Bently Nevada 24701-34-05-00-041-03-02 Stainless Steel Proximity Probe Housing Assembly

Bently Nevada 24701-34-05-00-041-03-02 Stainless Steel Proximity Probe Housing Assembly

BENTLY NEVADA · STAINLESS STEEL PROXIMITY PROBE HOUSING ASSEMBLY

24701-34-05-00-041-03-02

The 24701-34-05-00-041-03-02 is a 24701 stainless steel external probe housing configured with an approved 3300 XL 8 mm probe, connector protector, 0.5 m cable, no standoff adapter, 4.1 in probe penetration, fitting option 03 and 3/4-14 NPT mounting thread.

BODY303 stainless steel
PROBE3300 XL 8 mm
CABLE0.5 m
PENETRATION4.1 in
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATIONProduct photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ↗STAINLESS STEEL PROXIMITY PROBE HOUSING ASSEMBLY
EXTERNALLY MOUNTED PROXIMITY PROBE HOUSING

24701-34-05-00-041-03-02

24701

3300 XL 8 mm probe · 0.5 m cable · 4.1 in penetration

PRODUCT ROLE

24701-34-05-00-041-03-02 is a 303 stainless steel proximity probe housing assembly for externally mounting a 3300 XL 8 mm reverse-mount probe. The complete configuration includes the ordered probe, sleeve, conduit fittings and mounting thread.

CONFIGURATION NOTE

For 24701-34-05-00-041-03-02, codes 34, 05, 00, 041, 03 and 02 specify an approved 3300 XL 8 mm probe with connector protector, 0.5 m cable, no standoff, 4.1 in penetration, the specified fitting set and a 3/4-14 NPT mounting thread. Confirm the full housing code and installation drawing before replacement.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆
ORDER NUMBER BREAKDOWN

How the 24701-34-05-00-041-03-02 reference is structured

24701
Housing familyStainless steel probe housing assembly
34
Probe option3300 XL 8 mm with connector protector and approvals
05
Probe cable0.5 m · 20 in
00
StandoffNo standoff adapter
041
Penetration4.1 in · approximately 104 mm
03
FittingsPlug, reducer and cable seal grip
02
Mounting thread3/4-14 NPT
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 141600 ↗
24701 · STAINLESS STEEL PROXIMITY PROBE HOUSING ASSEMBLY

Engineering data at a glance

Verify the probe option, sleeve geometry, conduit fittings and machine mounting thread before installation.

BODY303 stainless steel
PROBE3300 XL 8 mm
CABLE0.5 m
PENETRATION4.1 in
Baker Hughes Datasheet 141600 covers the 24701 ordering structure and states that probe leads must be longer than the sleeve; sleeve lengths above 304 mm require additional support.
General Information ＋
BrandBently Nevada
Part number24701-34-05-00-041-03-02
Product typeStainless Steel Proximity Probe Housing Assembly
Housing material303 stainless steel body with 304 stainless steel sleeve
Typical weight1.8 kg (4.1 lb) without fittings
ORDER NUMBER CHECK ＋
Probe option34 · 3300 XL 8 mm with connector protector and approval option
Probe cable05 · 0.5 m (20 in)
Standoff adapter00 · none
Probe penetration041 · 4.1 in
Fittings03 · plug, reducer and cable seal grip
Mounting thread02 · 3/4-14 NPT
HOUSING & INSTALLATION ＋
Body and sleeve303 stainless steel body; 304 stainless steel sleeve
Enclosure contextExternally mounted proximity probe housing
Probe temperature range-51°C to +177°C for the specified 3300 XL 8 mm probe
Long-sleeve supportRequired when sleeve length exceeds 304 mm (12 in)
DOCUMENTATION & REPLACEMENT CHECK ＋
Official referenceBaker Hughes Datasheet 141600 Rev. AC
Replacement checkMatch full order code, probe connector, sleeve length, fittings, thread and machine penetration
Lifecycle noteNewer 31000/32000 housings offer improved mounting flexibility where explosion-proof housing is not required
FAQ

Questions Buyers Ask Most

What is 24701-34-05-00-041-03-02 used for?＋
24701-34-05-00-041-03-02 is a stainless steel housing assembly used to mount and protect a reverse-mount 3300 XL 8 mm proximity probe outside the machine casing. Its complete ordered configuration must match the mechanical opening, conduit route and installed monitoring system.
Which probe is supplied in 24701-34-05-00-041-03-02?＋
24701-34-05-00-041-03-02 uses probe option 34, which the official ordering table defines as a 3300 XL 8 mm probe with connector protector and selectable hazardous-area approvals. The connected extension cable and Proximitor sensor must belong to the compatible 3300 XL 8 mm system.
What do the 05, 00 and 041 fields mean in 24701-34-05-00-041-03-02?＋
In 24701-34-05-00-041-03-02, 05 specifies a 0.5 m probe cable, 00 specifies no standoff adapter, and 041 specifies 4.1 in of probe penetration. These dimensions must be checked against the actual sleeve and machine casing before installation.
What fittings and mounting thread are included with 24701-34-05-00-041-03-02?＋
24701-34-05-00-041-03-02 uses fitting option 03, comprising a 3/4-14 NPT plug, a 3/4-14 to 1/2-14 NPT reducer and a cable seal grip, together with mounting-thread option 02 for 3/4-14 NPT.
Does 24701-34-05-00-041-03-02 require additional sleeve support?＋
For 24701-34-05-00-041-03-02, additional support is required only when the selected sleeve length exceeds 304 mm (12 in). The configured penetration and actual installation geometry should be reviewed so that probe resonance and side-view effects are avoided.
Can 24701-34-05-00-041-03-02 be replaced by a 31000 or 32000 housing?＋
24701-34-05-00-041-03-02 should not be replaced solely on the basis of housing family. Baker Hughes recommends newer 31000/32000 housings where explosion-proof construction is not required, but mounting, environmental rating, probe configuration and machine dimensions must first be verified.
What information should be supplied when ordering 24701-34-05-00-041-03-02?＋
For a 24701-34-05-00-041-03-02 inquiry, provide the complete order number, quantity, housing nameplate, probe-system model, sleeve and penetration dimensions, conduit fitting requirements, mounting-thread details and hazardous-area certification requirements.
CONTACT PRODUCT SPECIALIST

Confirm your 24701-34-05-00-041-03-02 configuration with Frida

Share the complete model and application details for compatibility, availability and lead-time checking.

OFFICIAL DATASHEET

Manuals and Official References for 24701-34-05-00-041-03-02

Official Baker Hughes manufacturer-reference information covering the 24701 stainless steel proximity probe housing assembly and its complete ordering structure.

Stainless Steel Proximity Probe Housing Assembly

Baker Hughes Datasheet 141600 identifies 24701 as a 303 stainless steel external probe housing with a 304 stainless steel sleeve and documents every field in 24701-34-05-00-041-03-02.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

Source: Baker Hughes 21000, 24701, and 164818 Proximity Probe Housing Assemblies Datasheet 141600 Rev. AC.
EXTERNALLY MOUNTED PROXIMITY PROBE HOUSING RELATIONSHIP

How 24701-34-05-00-041-03-02 Fits into the Externally Mounted Proximity Probe Housing

Bently Nevada is the brand; Externally Mounted Proximity Probe Housing is the system context; and 24701-34-05-00-041-03-02 is the complete configuration.

Bently Nevada · BRAND→
Externally Mounted Proximity Probe HousingSYSTEM CONTEXT
SYSTEM ROLE

External Probe Mounting

Protects and positions a proximity probe outside the machine casing

CONFIGURATION CHECK

Hazardous-Area Planning

Confirm required approvals and installation drawing

REPLACEMENT CHECK

Mechanical Fit

Check penetration, sleeve support and mounting thread

System relationship: Match the 3300 XL 8 mm probe system, 0.5 m lead, 4.1 in penetration, fitting option, 3/4-14 NPT thread and any hazardous-area requirements.
APPLICATION AREAS

Application mind map for 24701-34-05-00-041-03-02

External Probe MountingProtects and positions a proximity probe outside the machine casing
Hazardous-Area PlanningConfirm required approvals and installation drawing
APPLICATION CENTER24701-34-05-00-041-03-02Stainless Steel Proximity Probe Housing Assembly
Mechanical FitCheck penetration, sleeve support and mounting thread
Replacement CheckMatch the complete seven-field order code
