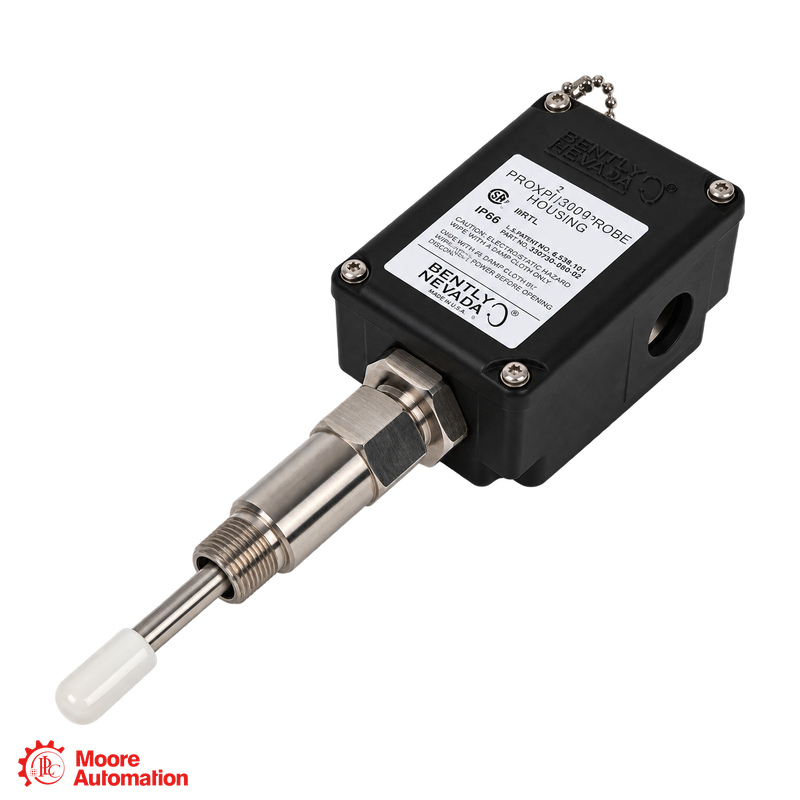

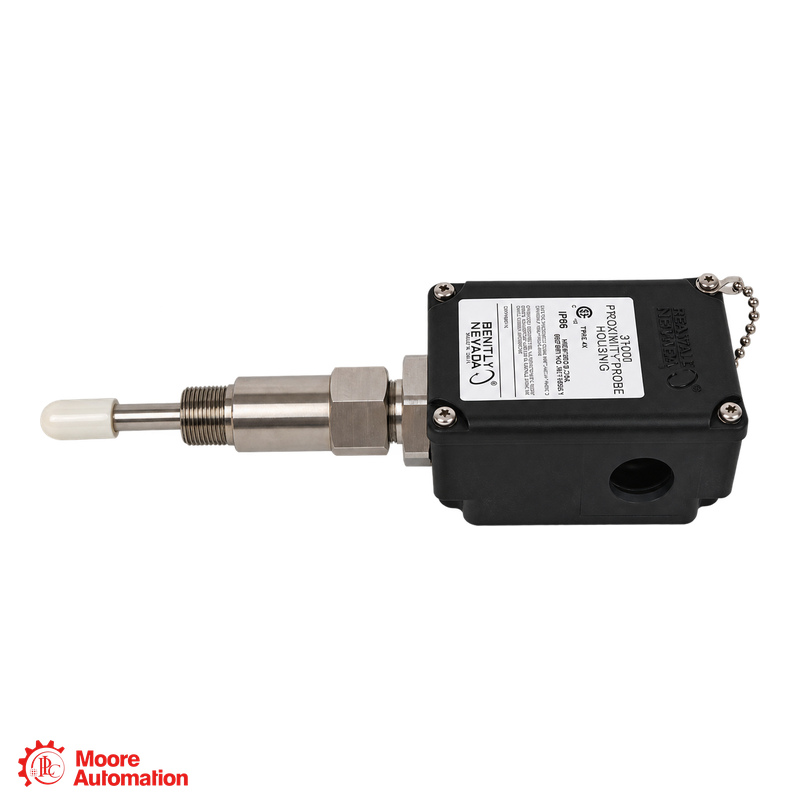

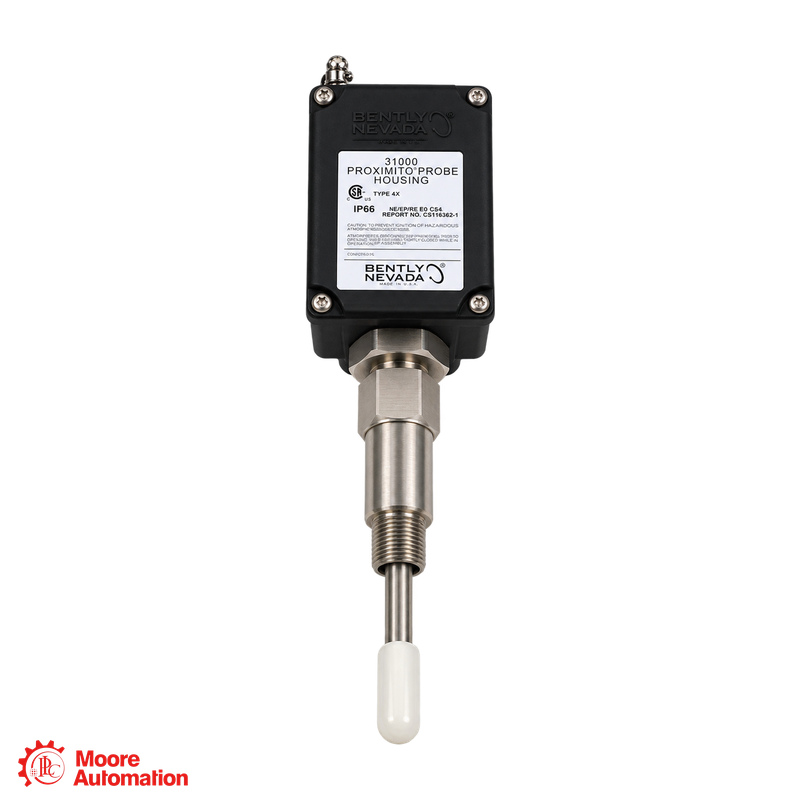

Bently Nevada 31000-28-05-70-066-00-02 Proximity Probe Housing Assembly
Bently Nevada 31000-28-05-70-066-00-02 Proximity Probe Housing Assembly
Bently Nevada 31000-28-05-70-066-00-02 Proximity Probe Housing Assembly

Bently Nevada 31000-28-05-70-066-00-02 Proximity Probe Housing Assembly

31000 SERIES · PROXIMITY PROBE HOUSING

31000-28-05-70-066-00-02

31000-28-05-70-066-00-02 — a Bently Nevada external probe housing assembly with a multiple-approval 3300 XL 8 mm probe, 0.5 m probe cable, 7.0 in standoff adapter and 6.6 in probe penetration.

PROBE3300 XL 8 mm
CABLE0.5 m
STANDOFF7.0 in
DEPTH6.6 in
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● PROXIMITY PROBE HOUSING
31000 HOUSING ASSEMBLY

31000-28-05-70-066-00-02

3300 XL 8 mm · 0.5 m cable · 6.6 in penetration

Proximity Probe Housing Assembly

EXTERNAL 3300 XL PROBE HOUSING
31000-28-05-70-066-00-02 — A Bently Nevada 31000 housing assembly for external machine-case mounting, configured with a 3300 XL 8 mm probe, 0.5 m cable, 7.0 in standoff and 6.6 in penetration.
CONFIGURATION NOTE
31000 identifies the English proximity probe housing assembly; 28 selects a 3300 XL 8 mm probe with multiple approvals; 05 sets a 0.5 m probe cable; 70 specifies a 7.0 in standoff adapter; 066 specifies 6.6 in probe penetration; 00 selects no conduit fittings; 02 specifies a 3/4-14 NPT mounting thread.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

31000
Housing familyEnglish external proximity probe housing assembly
28
Probe option3300 XL 8 mm probe; multiple approvals
05
Probe cable length0.5 m (20 in)
70
Standoff adapter7.0 in
066
Probe penetration6.6 in
00
FittingsWithout conduit fittings
02
Mounting thread3/4-14 NPT
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
PROXIMITY PROBE HOUSING ASSEMBLY

Engineering data at a glance

Click “+” to expand more specifications.

PROBE3300 XL 8 mm
CABLE0.5 m
STANDOFF7.0 in
PENETRATION6.6 in
Manufacturer-defined housing configuration.
Configuration note31000 identifies the English proximity probe housing assembly; 28 selects a 3300 XL 8 mm probe with multiple approvals; 05 sets a 0.5 m probe cable; 70 specifies a 7.0 in standoff adapter; 066 specifies 6.6 in probe penetration; 00 selects no conduit fittings; 02 specifies a 3/4-14 NPT mounting thread.
General Information −
BrandBently Nevada
Part number31000-28-05-70-066-00-02
Product typeProximity Probe Housing Assembly
Product family31000
Housing bodyGlass-reinforced PPS
Probe cable0.5 m (20 in)
Housing Configuration ＋
Probe option3300 XL 8 mm; multiple approvals
Probe cable length0.5 m (20 in)
Standoff adapter7.0 in
Probe penetration6.6 in
Conduit fittingsNone (option 00)
Mounting thread3/4-14 NPT
Environmental and Mechanical ＋
Housing materialGlass-reinforced PPS
Sleeve and chainAISI 304 stainless steel
Outer sleeve and screwsAISI 303 stainless steel
Housing protectionType 4X / IP66
Probe operating range-51 to +177 °C
FAQ

Questions Buyers Ask Most

What configuration does 31000-28-05-70-066-00-02 specify?＋

31000-28-05-70-066-00-02 combines a 31000 English housing with option 28 for a multiple-approval 3300 XL 8 mm probe, option 05 for a 0.5 m cable, option 70 for a 7.0 in standoff and option 066 for 6.6 in probe penetration. Options 00 and 02 define fittings and mounting thread.

Which probe and cable are included with 31000-28-05-70-066-00-02?＋

31000-28-05-70-066-00-02 includes a 3300 XL 8 mm probe with multiple approvals and a 0.5 m probe cable. The housing provides external access to the installed probe and extension cable; the matching proximity transducer system must be selected for the machine.

What protection and temperature data apply to 31000-28-05-70-066-00-02?＋

31000-28-05-70-066-00-02 uses a glass-reinforced PPS housing rated Type 4X and IP66. The selected 3300 XL 8 mm probe has a stated operating and storage range of -51 to +177 °C. The housing provides mechanical protection and is not explosion-proof.

How does 31000-28-05-70-066-00-02 mount at the machine case?＋

31000-28-05-70-066-00-02 uses a 3/4-14 NPT mounting thread with a 7.0 in standoff adapter and 6.6 in probe penetration. Fittings option 00 supplies the assembly without conduit fittings. Since the 7.0 in standoff plus 6.6 in penetration exceeds 12 in, the manufacturer requires additional sleeve support near the probe.

Which measurement roles suit 31000-28-05-70-066-00-02?＋

The complete 31000-28-05-70-066-00-02 housing assembly is intended for proximity probes mounted through the machine case, especially radial vibration or Keyphasor measurements. Baker Hughes recommends the 21022 housing instead for dual-probe axial-position measurement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 31000-28-05-70-066-00-02 label, required machine-case penetration, mounting thread, cable routing, quantity and installed transducer-system details with Frida.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
31000-28-05-70-066-00-02

The Bently Nevada 31000 and 32000 housing datasheet defines the 31000 base and all ordering fields used in 31000-28-05-70-066-00-02.

Official manufacturer datasheet

Bently Nevada Datasheet 141610 defines the 31000 external proximity probe housing and the probe, cable, standoff, penetration, fitting and mounting-thread options in 31000-28-05-70-066-00-02.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

PROXIMITY PROBE HOUSING SYSTEM CONTEXT

How 31000-28-05-70-066-00-02 Fits into a Machinery Monitoring System

Bently Nevada is the manufacturer. 31000-28-05-70-066-00-02 is a 31000 external housing assembly for a 3300 XL 8 mm proximity probe mounted through the machine case. It provides access to the probe and extension cable for gap adjustment or probe replacement without machine disassembly.

Bently Nevada · BRAND
Bently Nevada 31000 SeriesPRODUCT FAMILY · PROBE HOUSING ASSEMBLY
PROBE OPTION

3300 XL 8 mm

Code 28 selects a 3300 XL 8 mm probe with multiple approvals.

PROBE CABLE

0.5 m

Code 05 selects the 0.5 m probe cable.

MOUNTING THREAD

3/4-14 NPT

Code 02 specifies the 3/4-14 NPT housing mounting thread.

System relationship: the 31000 housing supports a probe mounted through the machine case; a compatible extension cable and Proximitor Sensor complete the proximity transducer system for the intended measurement.
APPLICATION AREAS

Functions and application roles for 31000-28-05-70-066-00-02

Radial VibrationSupports a proximity probe mounted through the machine case for radial shaft-vibration measurement.
Keyphasor MeasurementCan house a radially mounted probe used for Keyphasor measurements.
APPLICATION CENTER 31000-28-05-70-066-00-02 31000 Proximity Probe Housing Assembly
External Probe AccessAllows access to the installed probe and extension cable for gap adjustment or replacement.
Machine-Case MountingUses the selected 3/4-14 NPT thread and 7.0 in standoff adapter at the machine case.
