 /Bently Nevada 31000-28-10-00-175-01-02 Proximity Probe Housing Assembly

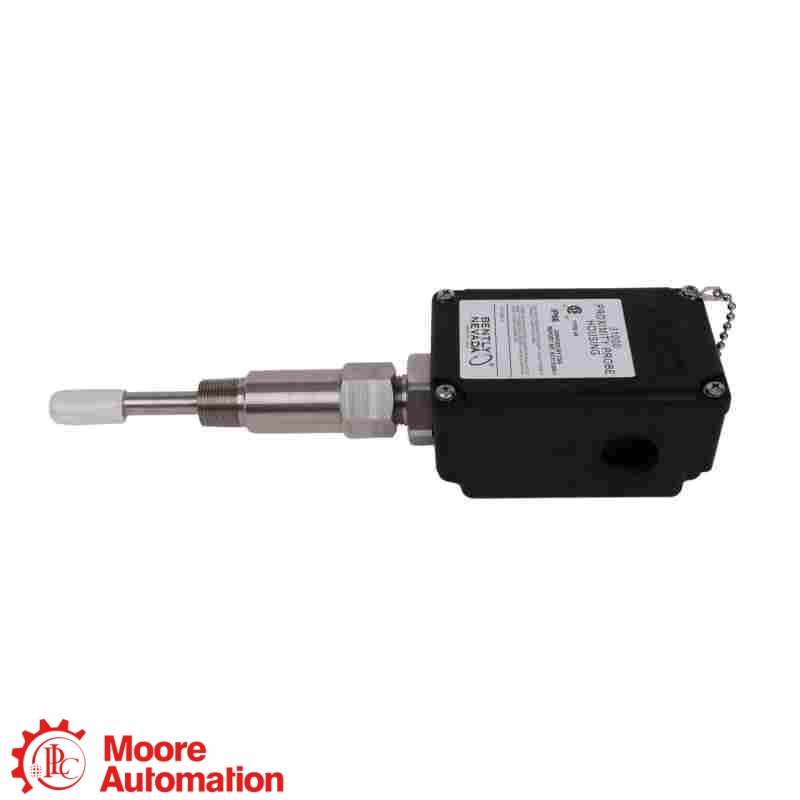

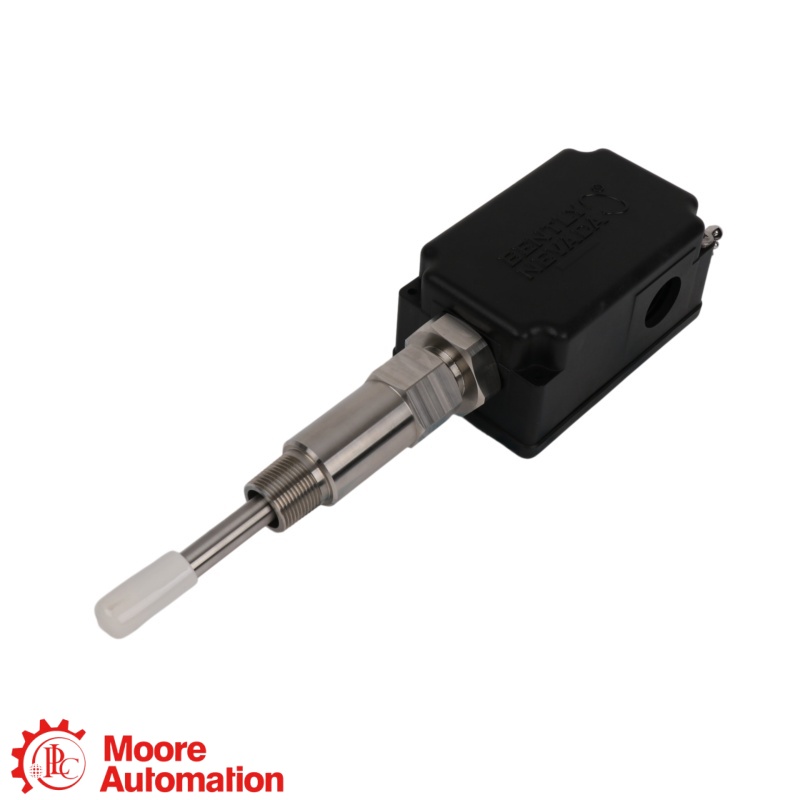

Bently Nevada 31000-28-10-00-175-01-02 Proximity Probe Housing Assembly
Bently Nevada 31000-28-10-00-175-01-02 Proximity Probe Housing Assembly
Bently Nevada 31000-28-10-00-175-01-02 Proximity Probe Housing Assembly

Bently Nevada 31000-28-10-00-175-01-02 Proximity Probe Housing Assembly

31000 · PROBE HOUSING

31000-28-10-00-175-01-02

31000-28-10-00-175-01-02 — A Bently Nevada 31000 proximity probe housing assembly with a multiple-approval 3300 XL 8 mm probe, 1.0 m cable, no standoff adapter, 17.5 in penetration, option 01 fittings and 3/4-14 NPT mounting.

PROBE3300 XL 8 MM
CABLE1.0 M
PENETRATION17.5 IN
MOUNTING3/4-14 NPT
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 31000 PROXIMITY PROBE HOUSING
31000 PROXIMITY PROBE HOUSING

31000-28-10-00-175-01-02

3300 XL 8 mm · 1.0 m cable · 17.5 in penetration · 3/4-14 NPT

Proximity Probe Housing Assembly

PROBE MOUNTING ROLE
31000-28-10-00-175-01-02 — This 31000 housing assembly protects and positions a multiple-approval 3300 XL 8 mm probe for machinery vibration and Keyphasor measurements.
CONFIGURATION NOTE
31000 identifies the English proximity-probe housing; 28 specifies a multiple-approval 3300 XL 8 mm probe, 10 a 1.0 m cable, 00 no standoff adapter, 175 a 17.5 in penetration, 01 one fitting and two plugs, and 02 a 3/4-14 NPT mounting thread.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

31000
Base modelEnglish proximity-probe housing
28
Probe option3300 XL 8 mm · Multiple approvals
10
Probe cable length1.0 m (39 in)
00
Standoff adapterNone
175
Probe penetration17.5 in (445 mm)
01
Fittings optionOne fitting · Two plugs
02
Mounting thread3/4-14 NPT
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Official Datasheet ↗
31000 PROXIMITY PROBE HOUSING

Engineering data at a glance

Click “+” to expand more specifications.

PROBE3300 XL 8 MM
CABLE1.0 M
PENETRATION17.5 IN
MOUNTING3/4-14 NPT
Configuration from the official 31000 and 32000 Proximity Probe Housing Assemblies datasheet.
Configuration check Confirm the full housing code, probe option, cable length, standoff, penetration, fittings and mounting thread against the machine installation before ordering.
General Information −
BrandBently Nevada
Part number31000-28-10-00-175-01-02
Product typeProximity Probe Housing Assembly
Product family31000/32000 Proximity Probe Housing Assembly
Housing constructionPPS housing · Corrosion-resistant stainless steel components
Installed probe3300 XL 8 mm probe · Multiple approvals
Probe and Dimensions ＋
Probe cable length1.0 m (39 in)
Standoff adapterNone · option 00
Probe penetration17.5 in (445 mm) · option 175
Fittings and Mounting ＋
Fittings option01
Fitting setOne 3/4-14 NPT fitting · Two plugs
Mounting thread3/4-14 NPT · option 02
Probe option3300 XL 8 mm · Multiple approvals
Approvals encoded by probe optionOption 28 · multiple approvals
Application and Environment ＋
The housing supports externally mounted proximity probes for radial vibration or Keyphasor measurements and is intended for mechanical and environmental protection, not explosion-proof service.
Source: Bently Nevada 31000 and 32000 Proximity Probe Housing Assemblies Datasheet, Part Number 141610, Rev. R. Dimensions, installation limits and environmental values require the complete configured housing and the manufacturer’s stated conditions.
FAQ

Questions Buyers Ask Most

What is 31000-28-10-00-175-01-02 used for?＋

31000-28-10-00-175-01-02 is a 31000 housing assembly configured to protect and position a multiple-approval 3300 XL 8 mm proximity probe.

What does the 31000-28-10-00-175-01-02 code specify?＋

For 31000-28-10-00-175-01-02, 31000 is the English housing and 28-10-00-175-02-02 specifies the probe, cable, standoff, penetration, fittings and mounting thread.

Can 31000-28-10-00-175-01-02 be substituted with a similar part number?＋

Do not substitute 31000-28-10-00-175-01-02 by appearance or family name alone. Compare the complete housing code, probe option, cable length, standoff, penetration, fittings, thread and installed machine dimensions.

What installation role does 31000-28-10-00-175-01-02 provide?＋

31000-28-10-00-175-01-02 provides external access for probe gap adjustment or replacement and supports radially mounted vibration or Keyphasor measurements when installed as specified.

What should I provide for a 31000-28-10-00-175-01-02 quotation?＋

Send the complete 31000-28-10-00-175-01-02 nameplate, quantity, probe and Proximitor details, machine mounting dimensions, conduit arrangement and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete housing label, probe system and machine mounting dimensions for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
31000-28-10-00-175-01-02

Official manufacturer documentation for the Bently Nevada 31000 proximity probe housing assembly, shown here for exact model verification.

Official manufacturer datasheet

Bently Nevada Datasheet 141610 defines the 31000-AA-BB-CC-DDD-EE-FF ordering structure and identifies every option used in this exact housing configuration.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the Bently Nevada 31000 and 32000 Proximity Probe Housing Assemblies Datasheet, Part Number 141610, Rev. R.

31000 PROBE HOUSING RELATIONSHIP

How 31000-28-10-00-175-01-02 Fits into the Proximity Measurement Chain

Bently Nevada is the manufacturer. 31000-28-10-00-175-01-02 is a 31000 PPS housing assembly configured with a multiple-approval 3300 XL 8 mm probe, 1.0 m cable, 17.5 in penetration and 3/4-14 NPT mounting.

Bently Nevada · BRAND
Bently Nevada 31000 Housing AssemblyPRODUCT FAMILY · SENSOR ACCESSORY
HOUSING AND MATERIAL

31000 Assembly

The 31000 housing uses a corrosion-resistant PPS body with stainless steel components for mechanical and environmental protection.

PROBE AND DIMENSIONS

3300 XL 8 mm Probe

The configuration includes a multiple-approval 3300 XL 8 mm probe, 1.0 m cable, no standoff and 17.5 in probe penetration.

FITTINGS AND MOUNTING

Option 01 · 3/4-14 NPT

The fitting set contains one 3/4-14 NPT fitting and two plugs; mounting thread option 02 is 3/4-14 NPT.

System relationship: the complete housing code, penetration, fittings and mounting thread must match the machine installation and proximity-probe system.
APPLICATION AREAS

Installation and measurement roles for 31000-28-10-00-175-01-02

Probe Gap AdjustmentProvides external access for probe gap adjustment or replacement without machine disassembly.
Radial VibrationSupports radially mounted proximity probes for relative-vibration measurement when the machine casing is properly affixed.
APPLICATION CENTER 31000-28-10-00-175-01-02 Proximity Probe Housing Assembly
Keyphasor MeasurementsSupports radially mounted proximity probes used for Keyphasor measurements in compatible systems.
Externally Mounted HousingProvides API 670-compliant externally mounted proximity-probe housing architecture.
