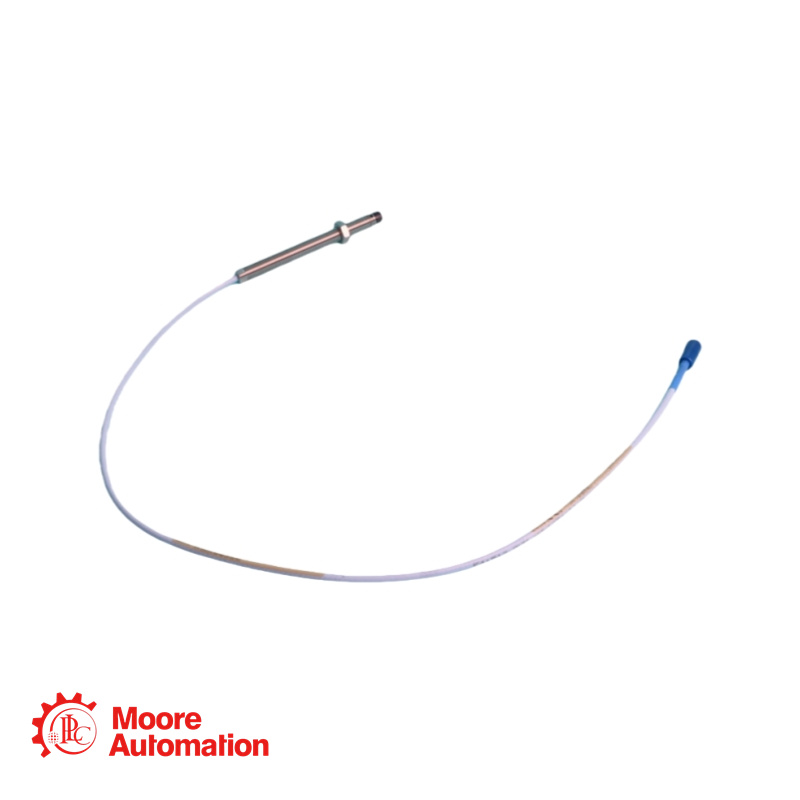

3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
Marca :
Bently NevadaNúmero da peça :
330101-00-43-15-02-CNPeso :
0.1kgDimensão :
1.6x1.4x112cmPaís de origem :
USACódigo SH :
8537101190Descrição :
Proximity Probe
|
Contact Us |
|||
|
Sales: |
Phone/ |
Email: |
Address: |
|
Frida |
Siming District, Xiamen, Fujian, China |
||
Specification
Unthreaded Length (Option AA): 00 = 0.0 inches.
Overall Case Length (Option BB): 43 = 4.3 inches.
Total Probe Length (Option CC): 15 = 1.5 meters (4.9 feet).
Connector and Cable-Type Option (DD): 02 = Miniature coaxial ClickLoc connector, standard cable.
Agency Approval Option (EE): Non-Standard / Not Applicable per suffix.
Special Suffix: -CN = China-Specific Configuration.
Probe Tip Diameter: 8.0 mm (0.31 in)
Probe Tip Material: Polyphenylene sulfide (PPS), molded for ruggedness and superior coil encapsulation.
Case Material: AISI 303 or 304 stainless steel (SST)
Case Thread: 3/8-24 UNF-2A
Wrench Flats: 5/16 inch (for installation tool engagement)
Lock Nut Supplied: 9/16 inch hex lock nut (standard for 3/8-24 thread probes).
Cable Specification: 75-ohm triaxial, fluoroethylene propylene (FEP) insulated. Standard temperature rating.
Connector Material: Gold-plated brass or gold-plated beryllium copper.
Operating Temperature Range: -52°C to +177°C (-62°F to +350°F). Critical Note: Exposure below -34°C (-29°F) may cause premature failure of the internal Viton® pressure seal.
Electrical Resistance (R_PROBE) for 1.5m cable: 7.73 ± 0.50 Ohms (measured from center conductor to outer conductor).
Tensile Strength (Probe case to cable): 330 N (75 lbf) maximum rated pull force.
Product FAQ
Q: We need to order a replacement probe for a Chinese project. The old probe is marked 330101-00-43-15-02-CN. Can we order the standard 330101-00-43-15-02-00 instead to save cost and lead time?
Q: The mounting location for our radial vibration probe is very shallow. The 4.3-inch case length is acceptable, but the spec says the unthreaded length ('00') must be at least 0.8 in. less than the case length. With '00' and 4.3", is this valid?
A: This depends entirely on your project's contractual and regulatory requirements. Technically and functionally, the core probe is identical. The -00 suffix means it lacks the specific China RoHS documentation and Chinese labeling. If your project requires official China RoHS compliance certificates for customs clearance or client documentation, then you must order the -CN version. Using the -00 version could lead to rejection during inspections or audits.
A: Yes, this configuration is valid. The rule is: Unthreaded Length (AA) ≤ (Case Length (BB) - 0.8 in).
Your Unthreaded Length (AA) = 0.0 in.
Your Case Length (BB) = 4.3 in.
Check: 0.0 in ≤ (4.3 in - 0.8 in) = 3.5 in. The condition is satisfied. A '00' unthreaded length is the shortest possible and is compatible with any case length of 0.8 inches or greater.
|
