 /Bently Nevada 330101-00-47-05-02-05 3300 XL 8 mm Proximity Probe

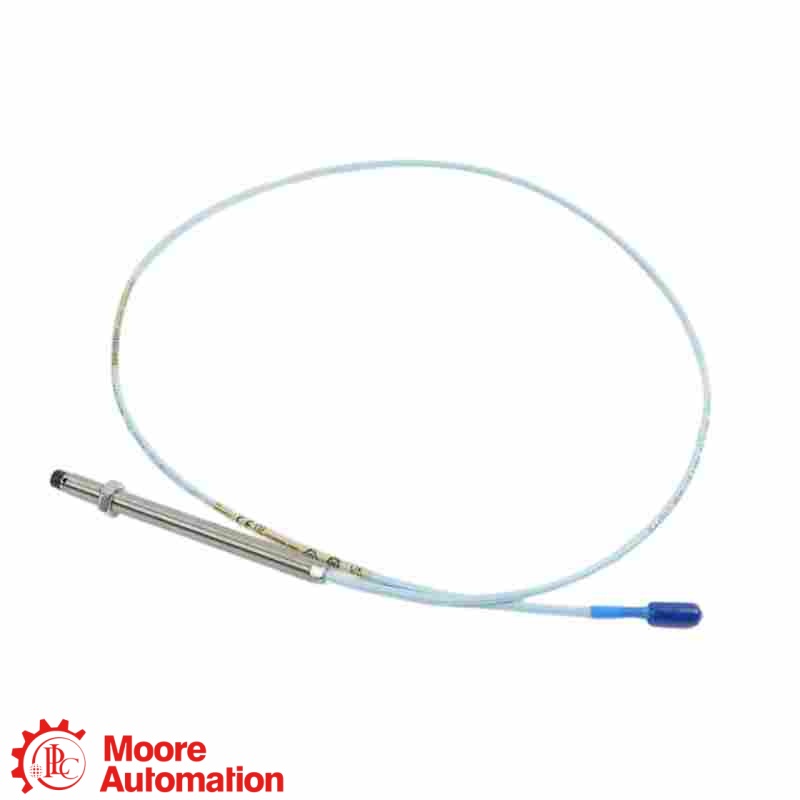

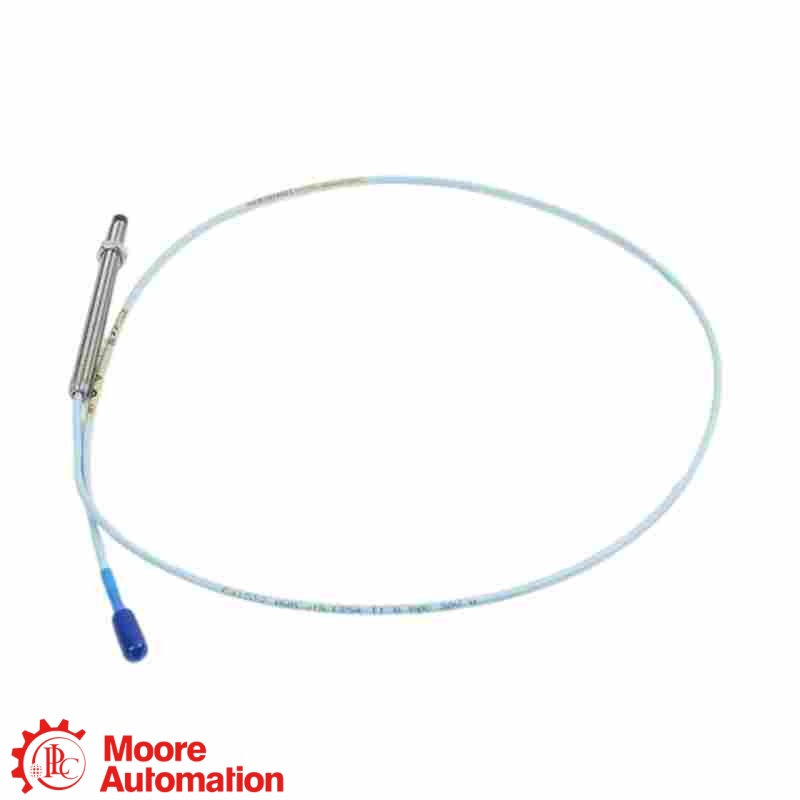

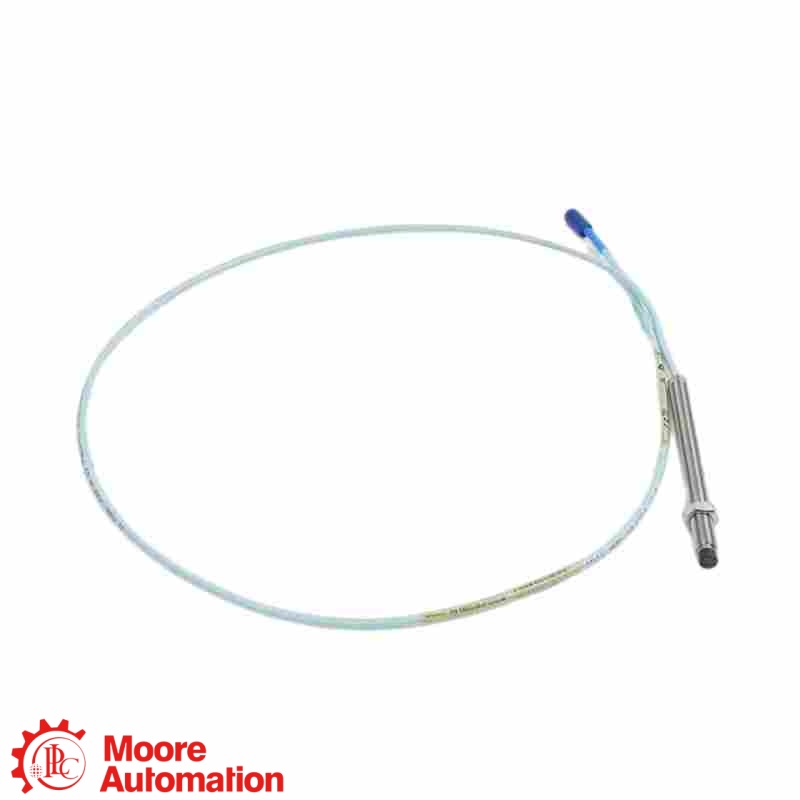

Bently Nevada 330101-00-47-05-02-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-47-05-02-05 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-47-05-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-47-05-02-05 3300 XL 8 mm Proximity Probe

3300 XL · 8 MM PROBE

330101-00-47-05-02-05

330101-00-47-05-02-05 — A Bently Nevada 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, 4.7 in case length, 0.5 m standard cable, ClickLoc connector and multiple approvals.

TIP8 MM
THREAD3/8-24 UNF
LENGTH0.5 M
APPROVALMULTIPLE
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY PROBE

330101-00-47-05-02-05

3/8-24 UNF · 4.7 in case · 0.5 m cable · Multiple approvals

3300 XL 8 mm Proximity Probe

NON-CONTACT SENSING ROLE
330101-00-47-05-02-05 — This 3300 XL 8 mm proximity probe is part of a matched transducer system for non-contact vibration and position measurements on rotating machinery.
CONFIGURATION NOTE
330101 identifies the 3300 XL 8 mm probe with 3/8-24 UNF thread and no armor; 00-47 defines 0.0 in unthreaded length and 4.7 in case length; 05-02-05 defines 0.5 m standard cable, ClickLoc connector and multiple approvals.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330101
Base model3300 XL 8 mm probe · 3/8-24 UNF · Unarmored
00
Unthreaded length0.0 in
47
Overall case length4.7 in
05
Total length0.5 m (1.6 ft)
02
Connector / cableMiniature coaxial ClickLoc · Standard cable
05
Approval optionMultiple approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Official Datasheet ↗
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

TIP8 MM
THREAD3/8-24 UNF
CASE LENGTH4.7 IN
TOTAL LENGTH0.5 M
Configuration from the manufacturer ordering guide and official 3300 XL 8 mm datasheet.
Configuration check Confirm the complete order code, thread, case length, total length, connector, cable type, approval option and matching 3300 XL 8 mm Proximitor Sensor before ordering.
General Information −
BrandBently Nevada
Part number330101-00-47-05-02-05
Product type3300 XL 8 mm Proximity Probe
Product family3300 XL 8 mm Proximity Transducer System
Mounting and construction3/8-24 UNF thread · Without armor
Measurement roleNon-contact vibration and position sensing
Probe Configuration ＋
Probe tip diameter8 mm
Unthreaded length0.0 in
Overall case length4.7 in
Cable and Approval ＋
Total length0.5 m (1.6 ft)
ConnectorMiniature coaxial ClickLoc connector
Cable typeStandard cable
Thread3/8-24 UNF-2A
Agency approvalOption 05 · multiple approvals
System Performance ＋
With matching 3300 XL 8 mm components, the system provides a 2.0 mm (80 mil) linear range and 7.87 V/mm (200 mV/mil) scale factor under the manufacturer’s stated conditions.
Source: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, Part Number 141194, Rev. AN. Ordering-code and performance values require the complete matched transducer system and the manufacturer’s stated conditions.
FAQ

Questions Buyers Ask Most

What is 330101-00-47-05-02-05 used for?＋

330101-00-47-05-02-05 is a 3300 XL 8 mm proximity probe configured for non-contact vibration and position measurements in a matched transducer system.

What does the 330101-00-47-05-02-05 code specify?＋

For 330101-00-47-05-02-05, 330101 identifies the 3/8-24 UNF unarmored probe; 00-47 defines the mechanical lengths; 05-02-05 defines the 0.5 m standard cable, ClickLoc connector and multiple approvals.

Can 330101-00-47-05-02-05 be substituted with a similar part number?＋

Do not substitute 330101-00-47-05-02-05 by appearance or family name alone. Compare the complete order code, thread, probe geometry, total length, connector, cable type, approval option and matching system components.

What system performance applies to 330101-00-47-05-02-05 provide?＋

330101-00-47-05-02-05 uses the 3300 XL 8 mm system’s nominal 2.0 mm linear range and 7.87 V/mm scale factor when paired with the specified matching components under stated conditions.

What should I provide for a 330101-00-47-05-02-05 quotation?＋

Send the complete 330101-00-47-05-02-05 nameplate, quantity, installed probe-extension cable-Proximitor chain, mounting details, hazardous-area requirement and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and installed probe, extension cable and Proximitor Sensor details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330101-00-47-05-02-05

Official manufacturer documentation for the Bently Nevada 3300 XL 8 mm proximity probe and matched transducer system, shown here for exact model verification.

Official manufacturer datasheet

Bently Nevada Datasheet 141194 identifies 330101 as the 3300 XL 8 mm probe with 3/8-24 UNF thread and no armor; the full order code specifies its mechanical length, cable, connector and approval options.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, Part Number 141194, Rev. AN.

3300 XL 8 MM TRANSDUCER RELATIONSHIP

How 330101-00-47-05-02-05 Fits into the 3300 XL 8 mm System

Bently Nevada is the manufacturer. 330101-00-47-05-02-05 is a 3300 XL 8 mm proximity probe with 3/8-24 UNF thread, 4.7 in case length, 0.5 m standard cable, ClickLoc connector and multiple approvals.

Bently Nevada · BRAND
Bently Nevada 3300 XL 8 mm SystemPRODUCT FAMILY · TRANSDUCER SYSTEM
PROBE GEOMETRY

8 mm Probe

The 330101 probe uses a 3/8-24 UNF thread, 0.0 in unthreaded length and 4.7 in overall case length.

CABLE AND CONNECTOR

0.5 m ClickLoc Cable

The order code specifies 0.5 m total length, standard cable and a miniature coaxial ClickLoc connector.

MATCHED SYSTEM

Probe · Cable · Proximitor

The probe must be used with compatible 3300 XL 8 mm extension cable and Proximitor Sensor components for specified system performance.

System relationship: the complete order code, connector, cable length and matching extension cable and Proximitor Sensor must suit the installed 3300 XL 8 mm system.
APPLICATION AREAS

Measurement and integration points for 330101-00-47-05-02-05

Radial VibrationSupports non-contact shaft radial-vibration measurement in compatible monitoring systems.
Axial PositionSupports non-contact axial-position measurement when installed with the specified matched components.
APPLICATION CENTER 330101-00-47-05-02-05 3300 XL 8 mm Proximity Probe
Keyphasor and SpeedMay be applied to Keyphasor and speed sensing where the machine and monitoring configuration require it.
Fluid-Film Bearing MachinesDesigned for proximity measurements commonly used on rotating machinery with fluid-film bearings.
