 /Bently Nevada 330103-00-12-10-12-05 3300 XL 8 mm Metric Proximity Probe

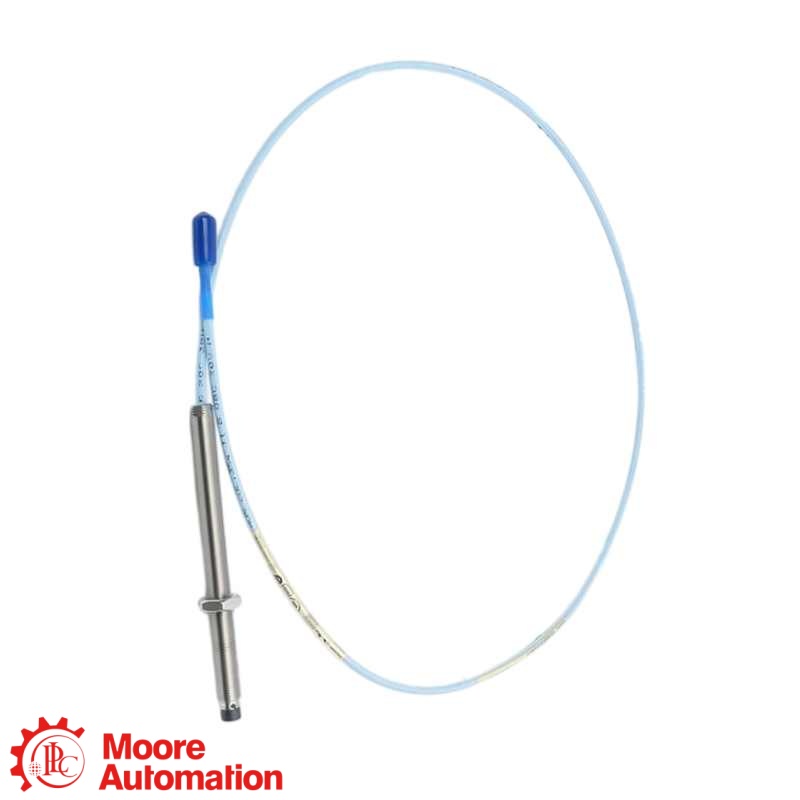

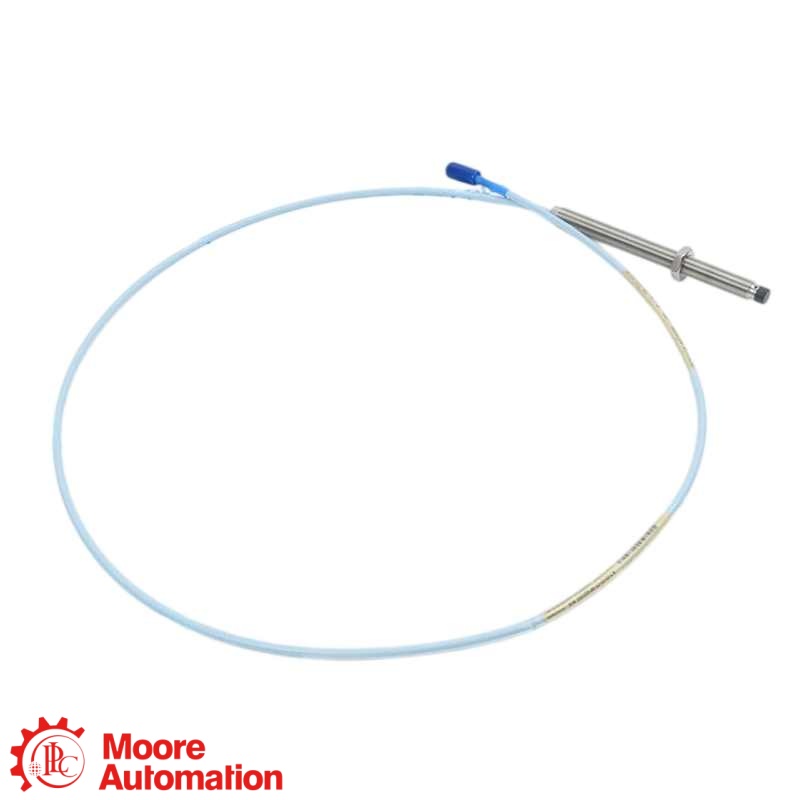

Bently Nevada 330103-00-12-10-12-05 3300 XL 8 mm Metric Proximity Probe
Bently Nevada 330103-00-12-10-12-05 3300 XL 8 mm Metric Proximity Probe
Bently Nevada 330103-00-12-10-12-05 3300 XL 8 mm Metric Proximity Probe

Bently Nevada 330103-00-12-10-12-05 3300 XL 8 mm Metric Proximity Probe

BENTLY NEVADA · 3300 XL 8 MM METRIC PROXIMITY PROBE

330103-00-12-10-12-05

The 330103-00-12-10-12-05 is a non-armored M10 × 1 probe with 0 mm unthreaded length, 120 mm case length, 1.0 m total length, FluidLoc cable, ClickLoc connector and multiple approvals. It must be used as part of a compatible 3300 XL 8 mm proximity transducer system.

THREADM10 × 1
CASE120 mm
LENGTH1.0 m
CABLEFluidLoc
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATIONProduct photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ↗3300 XL 8 MM METRIC PROXIMITY PROBE
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330103-00-12-10-12-05

330103

M10 × 1 · 120 mm case · 1.0 m FluidLoc lead · approvals

PRODUCT ROLE

330103-00-12-10-12-05 is a non-armored M10 × 1 metric proximity probe for non-contact measurement of shaft vibration, position, speed or Keyphasor reference when connected to a compatible 3300 XL 8 mm extension cable and Proximitor sensor.

CONFIGURATION NOTE

For 330103-00-12-10-12-05, the ordered fields specify 0 mm unthreaded length, 120 mm case length, 1.0 m total length, FluidLoc cable without connector protector and multiple approvals. Confirm every field, target material, total electrical length, cable route, connector option and hazardous-area approval before replacement.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆
ORDER NUMBER BREAKDOWN

How the 330103-00-12-10-12-05 reference is structured

330103
Probe familyM10 × 1 · without armor
00
Unthreaded length0 mm
12
Case length120 mm
10
Total length1.0 m
12
Cable / connectorFluidLoc · ClickLoc without protector
05
Approval optionMultiple approvals
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

BENTLY NEVADA DOCUMENT ↗
General Information＋
ManufacturerBently Nevada
Model330103-00-12-10-12-05
Product type3300 XL 8 mm Metric Proximity Probe
Transducer system3300 XL 8 mm
Measurement methodNon-contact eddy-current proximity measurement
ORDER NUMBER CHECK＋
Probe family330103 · M10 × 1 · without armor
Unthreaded length00 · 0 mm
Case length12 · 120 mm
Total length10 · 1.0 m
Cable / connector12 · FluidLoc · ClickLoc without protector
Approval option05 · Multiple approvals
SYSTEM & ELECTRICAL COMPATIBILITY＋
Compatible system3300 XL 8 mm probe, extension cable and Proximitor sensor
Nominal system lengthVerify the ordered total electrical length
ApplicationsRadial vibration, axial position, speed and Keyphasor reference
Target requirementConductive target material and calibrated system geometry
INSTALLATION & REPLACEMENT CHECK＋
Mechanical fitM10 × 1 non-armored body, 0 mm unthreaded length and 120 mm case length
Cable and connectorFluidLoc cable with ClickLoc connector and no connector protector
ApprovalsOption 05 · CSA, ATEX and IECEx selections per official ordering table
CommissioningVerify gap voltage and machine protection settings after installation
SYSTEM APPLICATIONS

Where 330103-00-12-10-12-05 fits

Machine Vibration

Measures dynamic shaft motion in a compatible monitoring system

Axial Position

Measures shaft position within the calibrated linear range

Speed / Keyphasor

Provides a phase or speed reference when correctly installed

Replacement Verification

Requires a complete code and installed-system match

FAQ

Questions Buyers Ask Most

What is 330103-00-12-10-12-05 used for?＋
330103-00-12-10-12-05 is non-armored M10 × 1 metric proximity probe used in a compatible 3300 XL 8 mm proximity transducer system to measure shaft vibration, position, speed or a Keyphasor reference without contacting the target.
How is the 330103-00-12-10-12-05 order number decoded?＋
The 330103-00-12-10-12-05 order number must be read in its original sequence. 330103 identifies the non-armored M10 × 1 family; 00 and 12 define the body; 10 is 1.0 m; 12 is FluidLoc without protector; 05 is approvals. These fields must not be reordered or merged because each identifies a separate mechanical, cable or approval selection.
Which cable and connector option is specified for 330103-00-12-10-12-05?＋
330103-00-12-10-12-05 uses FluidLoc cable with ClickLoc connector and no connector protector. The mating extension cable and Proximitor sensor must be selected for the same 3300 XL 8 mm system length and connector arrangement.
What total length is specified for 330103-00-12-10-12-05?＋
330103-00-12-10-12-05 specifies a 1.0 m total probe length. This is the ordered probe lead length, and the complete probe-plus-extension-cable electrical length must match the installed Proximitor system.
Which approvals apply to 330103-00-12-10-12-05?＋
330103-00-12-10-12-05 uses Option 05 · CSA, ATEX and IECEx selections per official ordering table. Confirm that the exact approval marking on the delivered nameplate satisfies the installation area and local certification requirements.
Can 330103-00-12-10-12-05 directly replace another 3300 XL 8 mm probe?＋
330103-00-12-10-12-05 can be considered only when thread, case geometry, unthreaded length, total length, cable/connector option, approvals and the connected 3300 XL 8 mm extension cable and Proximitor sensor all match.
What information should be supplied when ordering 330103-00-12-10-12-05?＋
For a 330103-00-12-10-12-05 inquiry, provide the complete order code, quantity, nameplate photo, machine application, mounting dimensions, target material, existing extension-cable and Proximitor numbers, hazardous-area requirements and required delivery date.
CONTACT PRODUCT SPECIALIST

Confirm your 330103-00-12-10-12-05 configuration with Frida

Share the complete model and application details for compatibility, availability and lead-time checking.

OFFICIAL DATASHEET

Manuals and Official References for 330103-00-12-10-12-05

Official Baker Hughes manufacturer-reference information for the 330103-00-12-10-12-05 3300 XL 8 mm proximity probe.

3300 XL 8 mm Metric Proximity Probe

Baker Hughes Datasheet 141194 identifies 330103-00-12-10-12-05 as a non-armored M10 × 1 probe with 0 mm unthreaded length, 120 mm case length, 1.0 m total length, FluidLoc cable, ClickLoc connector and multiple approvals and documents its ordered mechanical, lead-length, connector/cable and approval fields.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

Source: Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM RELATIONSHIP

How 330103-00-12-10-12-05 fits into the measurement system

Match the exact thread and case geometry, total electrical length, connector/cable option, approvals, extension cable and Proximitor sensor.

THREADM10 × 1
CASE120 mm
LENGTH1.0 m
CABLEFluidLoc
APPLICATION AND VERIFICATION

Machine Vibration

Measures dynamic shaft motion in a compatible monitoring system

Axial Position

Measures shaft position within the calibrated linear range

Speed / Keyphasor

Provides a phase or speed reference when correctly installed

Replacement Verification

Requires a complete code and installed-system match
