PROBE ELEMENT
8 mm Probe Tip
The rugged 8 mm probe tip supports non-contacting eddy-current measurement in the 3300 XL transducer system.

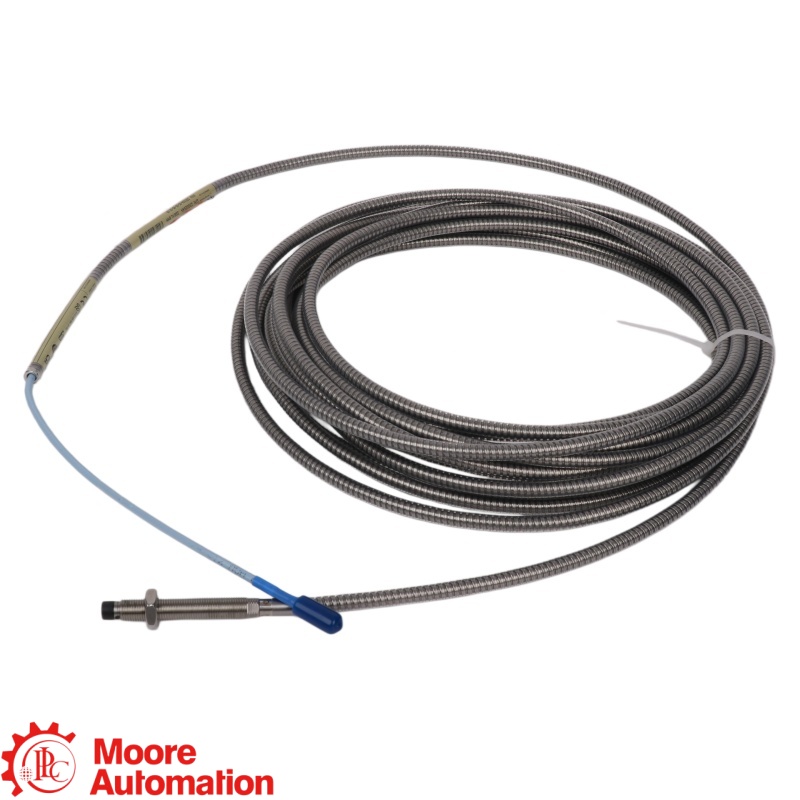

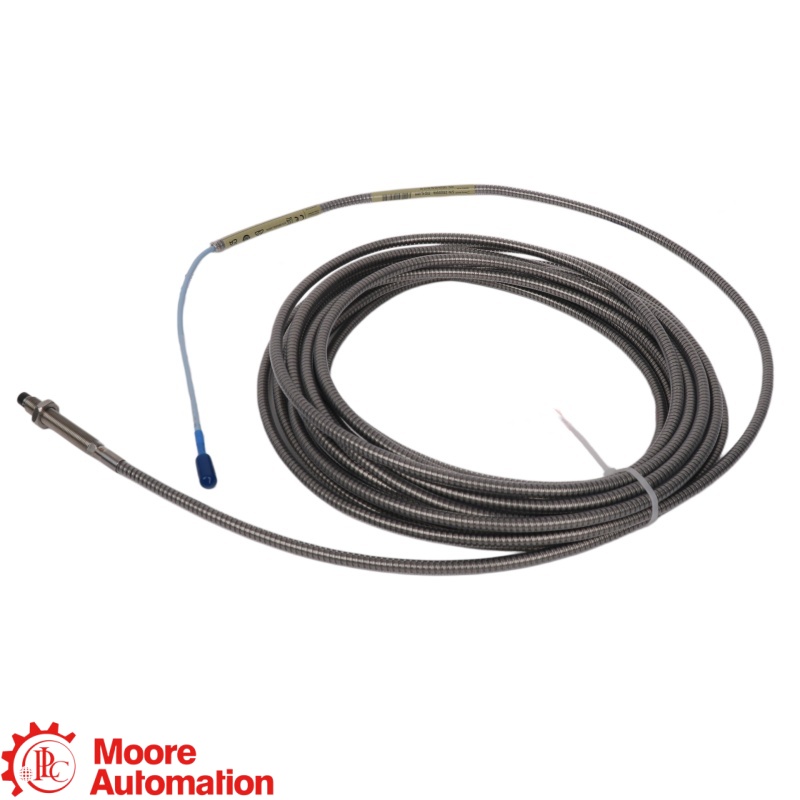

The 330104-00-06-90-02-05 is a Bently Nevada 3300 XL 8 mm standard-mount proximity probe with armor for non-contacting vibration and position measurement.
Click “+” to expand more specifications.
Official Baker Hughes Bently Nevada documentation for the 3300 XL 8 mm Proximity Transducer System.
Bently Nevada datasheet 141194 Rev. AM. Refer to the 330104 metric ordering information for armor, option decoding, total length, connector and cable type, M10 x 1 mounting thread and approvals.
OFFICIAL DATASHEETSend the complete model, quantity, and your technical or purchasing question.
Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. No third-party product sources were used.
Bently Nevada is the brand; the 3300 XL 8 mm Proximity Transducer System is the product family; and 330104-00-06-90-02-05 is a standard-mount M10 x 1 metric probe with armor, 0 mm unthreaded length, 60 mm case length and 9.0 m standard cable.
The rugged 8 mm probe tip supports non-contacting eddy-current measurement in the 3300 XL transducer system.
The 0 mm unthreaded length and 60 mm overall case length define the ordered metric standard-mount geometry.
The armored 9.0 m standard cable terminates in a miniature coaxial ClickLoc connector for compatible system integration.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete model, MOD number, quantity and delivery destination.
