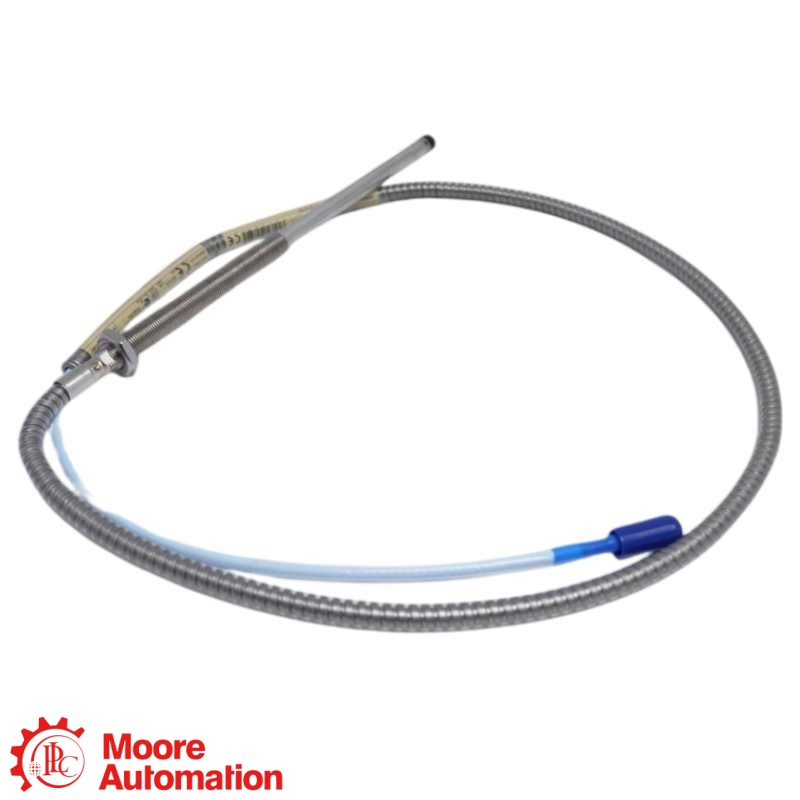

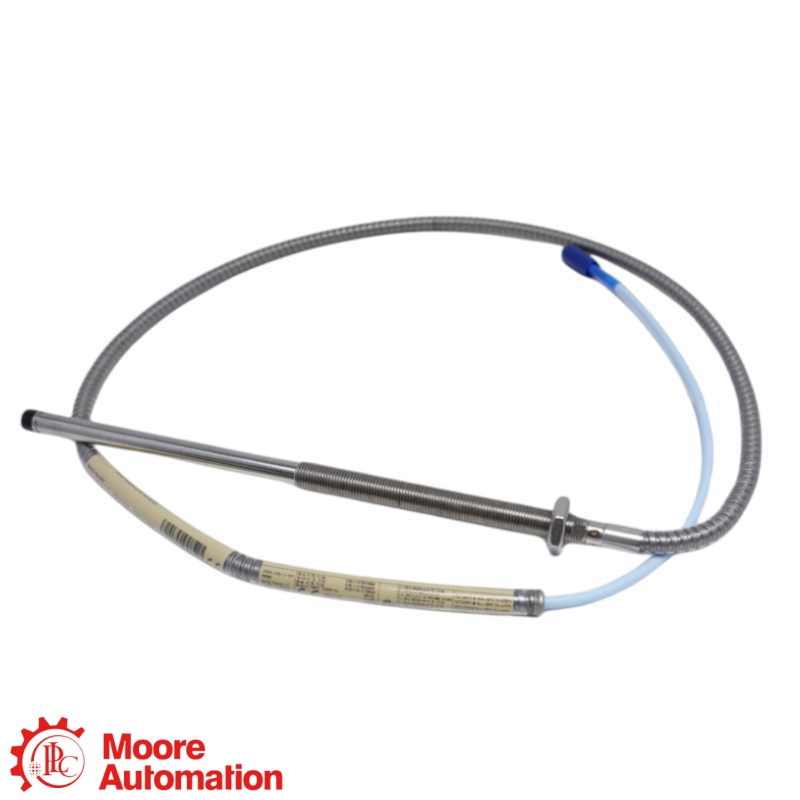

Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Armored Proximity Probe
Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Armored Proximity Probe
Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Armored Proximity Probe

Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Armored Proximity Probe

BENTLY NEVADA · 3300 XL 8 MM ARMORED METRIC PROXIMITY PROBE

330104-10-15-10-01-05

The 330104-10-15-10-01-05 is an armored M10 × 1 probe with 100 mm unthreaded length, 150 mm case length, 1.0 m total length, standard cable, connector protector and multiple approvals. It must be used as part of a compatible 3300 XL 8 mm proximity transducer system.

THREADM10 × 1
CASE150 mm
LENGTH1.0 m
CABLEArmored
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATIONProduct photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ↗3300 XL 8 MM ARMORED METRIC PROXIMITY PROBE
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330104-10-15-10-01-05

330104

M10 × 1 · 150 mm case · 1.0 m lead · armor and approvals

PRODUCT ROLE

330104-10-15-10-01-05 is a armored M10 × 1 metric proximity probe for non-contact measurement of shaft vibration, position, speed or Keyphasor reference when connected to a compatible 3300 XL 8 mm extension cable and Proximitor sensor.

CONFIGURATION NOTE

For 330104-10-15-10-01-05, the ordered fields specify 100 mm unthreaded length, 150 mm case length, 1.0 m total length, standard cable with connector protector and multiple approvals. Confirm every field, target material, total electrical length, cable route, connector option and hazardous-area approval before replacement.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆
ORDER NUMBER BREAKDOWN

How the 330104-10-15-10-01-05 reference is structured

330104
Probe familyM10 × 1 · with armor
10
Unthreaded length100 mm
15
Case length150 mm
10
Total length1.0 m
01
Cable / connectorStandard cable · ClickLoc with protector
05
Approval optionMultiple approvals
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

BENTLY NEVADA DOCUMENT ↗
General Information＋
ManufacturerBently Nevada
Model330104-10-15-10-01-05
Product type3300 XL 8 mm Armored Metric Proximity Probe
Transducer system3300 XL 8 mm
Measurement methodNon-contact eddy-current proximity measurement
ORDER NUMBER CHECK＋
Probe family330104 · M10 × 1 · with armor
Unthreaded length10 · 100 mm
Case length15 · 150 mm
Total length10 · 1.0 m
Cable / connector01 · Standard cable · ClickLoc with protector
Approval option05 · Multiple approvals
SYSTEM & ELECTRICAL COMPATIBILITY＋
Compatible system3300 XL 8 mm probe, extension cable and Proximitor sensor
Nominal system lengthVerify the ordered total electrical length
ApplicationsRadial vibration, axial position, speed and Keyphasor reference
Target requirementConductive target material and calibrated system geometry
INSTALLATION & REPLACEMENT CHECK＋
Mechanical fitM10 × 1 armored body, 100 mm unthreaded length and 150 mm case length
Cable and connectorStandard cable with ClickLoc connector and connector protector
ApprovalsOption 05 · CSA, ATEX and IECEx selections per official ordering table
CommissioningVerify gap voltage and machine protection settings after installation
SYSTEM APPLICATIONS

Where 330104-10-15-10-01-05 fits

Machine Vibration

Measures dynamic shaft motion in a compatible monitoring system

Axial Position

Measures shaft position within the calibrated linear range

Speed / Keyphasor

Provides a phase or speed reference when correctly installed

Replacement Verification

Requires a complete code and installed-system match

FAQ

Questions Buyers Ask Most

What is 330104-10-15-10-01-05 used for?＋
330104-10-15-10-01-05 is armored M10 × 1 metric proximity probe used in a compatible 3300 XL 8 mm proximity transducer system to measure shaft vibration, position, speed or a Keyphasor reference without contacting the target.
How is the 330104-10-15-10-01-05 order number decoded?＋
The 330104-10-15-10-01-05 order number must be read in its original sequence. 330104 identifies the armored M10 × 1 family; 10 and 15 define 100 mm and 150 mm body lengths; 10 is 1.0 m; 01 is standard cable with protector; 05 is approvals. These fields must not be reordered or merged because each identifies a separate mechanical, cable or approval selection.
Which cable and connector option is specified for 330104-10-15-10-01-05?＋
330104-10-15-10-01-05 uses Standard cable with ClickLoc connector and connector protector. The mating extension cable and Proximitor sensor must be selected for the same 3300 XL 8 mm system length and connector arrangement.
What total length is specified for 330104-10-15-10-01-05?＋
330104-10-15-10-01-05 specifies a 1.0 m total probe length. This is the ordered probe lead length, and the complete probe-plus-extension-cable electrical length must match the installed Proximitor system.
Which approvals apply to 330104-10-15-10-01-05?＋
330104-10-15-10-01-05 uses Option 05 · CSA, ATEX and IECEx selections per official ordering table. Confirm that the exact approval marking on the delivered nameplate satisfies the installation area and local certification requirements.
Can 330104-10-15-10-01-05 directly replace another 3300 XL 8 mm probe?＋
330104-10-15-10-01-05 can be considered only when thread, case geometry, unthreaded length, total length, cable/connector option, approvals and the connected 3300 XL 8 mm extension cable and Proximitor sensor all match.
What information should be supplied when ordering 330104-10-15-10-01-05?＋
For a 330104-10-15-10-01-05 inquiry, provide the complete order code, quantity, nameplate photo, machine application, mounting dimensions, target material, existing extension-cable and Proximitor numbers, hazardous-area requirements and required delivery date.
CONTACT PRODUCT SPECIALIST

Confirm your 330104-10-15-10-01-05 configuration with Frida

Share the complete model and application details for compatibility, availability and lead-time checking.

OFFICIAL DATASHEET

Manuals and Official References for 330104-10-15-10-01-05

Official Baker Hughes manufacturer-reference information for the 330104-10-15-10-01-05 3300 XL 8 mm proximity probe.

3300 XL 8 mm Armored Metric Proximity Probe

Baker Hughes Datasheet 141194 identifies 330104-10-15-10-01-05 as an armored M10 × 1 probe with 100 mm unthreaded length, 150 mm case length, 1.0 m total length, standard cable, connector protector and multiple approvals and documents its ordered mechanical, lead-length, connector/cable and approval fields.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

Source: Baker Hughes 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM RELATIONSHIP

How 330104-10-15-10-01-05 fits into the measurement system

Match the exact thread and case geometry, total electrical length, connector/cable option, approvals, extension cable and Proximitor sensor.

THREADM10 × 1
CASE150 mm
LENGTH1.0 m
CABLEArmored
APPLICATION AND VERIFICATION

Machine Vibration

Measures dynamic shaft motion in a compatible monitoring system

Axial Position

Measures shaft position within the calibrated linear range

Speed / Keyphasor

Provides a phase or speed reference when correctly installed

Replacement Verification

Requires a complete code and installed-system match
