 /Bently Nevada 330851-04-000-030-10-01-05 3300 XL 25 mm Side-Exit Proximity Probe

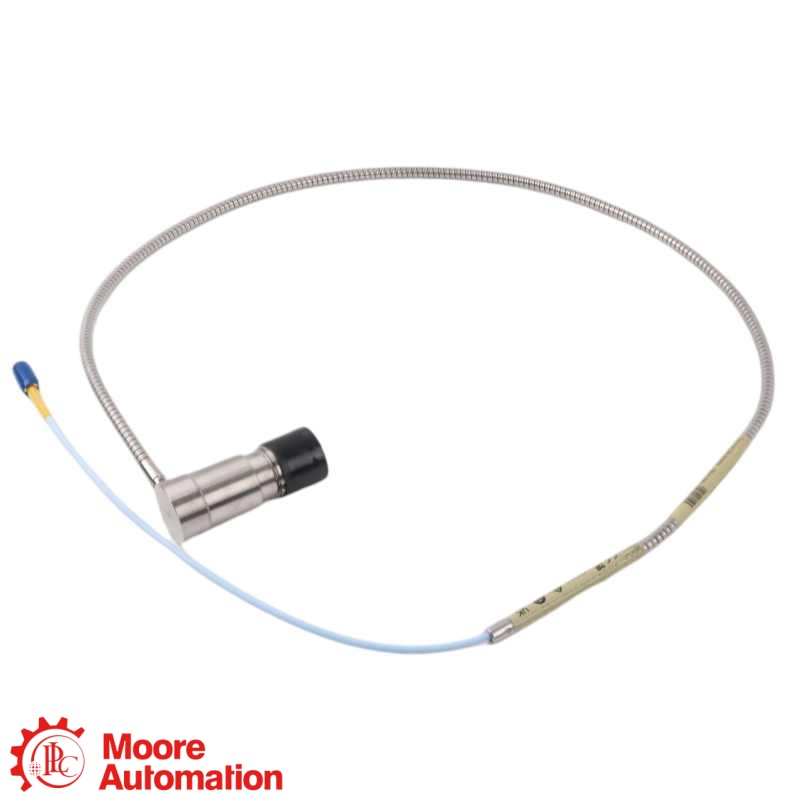

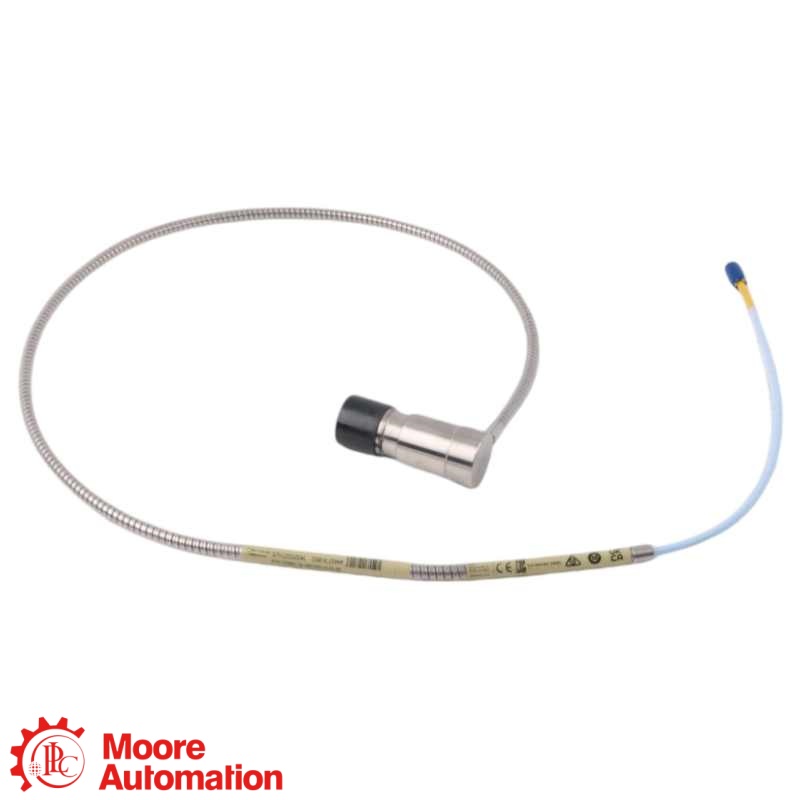

Bently Nevada 330851-04-000-030-10-01-05 3300 XL 25 mm Side-Exit Proximity Probe
Bently Nevada 330851-04-000-030-10-01-05 3300 XL 25 mm Side-Exit Proximity Probe
Bently Nevada 330851-04-000-030-10-01-05 3300 XL 25 mm Side-Exit Proximity Probe

Bently Nevada 330851-04-000-030-10-01-05 3300 XL 25 mm Side-Exit Proximity Probe

BENTLY NEVADA · 3300 XL 25 MM SIDE-EXIT PROXIMITY PROBE

330851-04-000-030-10-01-05

The 330851-04-000-030-10-01-05 is a smooth-body side-exit 3300 XL 25 mm probe with a 3.0 in case, 1.0 m total length, stainless steel armor and multiple approval option.

PROBE25 mm
OUTPUT0.787 V/mm
RANGE12.7 mm
EXITSide
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATIONProduct photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ↗3300 XL 25 MM SIDE-EXIT PROXIMITY PROBE
3300 XL 25 MM DIFFERENTIAL EXPANSION SYSTEM

330851-04-000-030-10-01-05

330851

25 mm · side exit · 1.0 m · stainless steel armor · approvals

PRODUCT ROLE

330851-04-000-030-10-01-05 is a 25 mm side-exit proximity probe for differential-expansion measurement on large steam turbine generators when used with the matching 3300 XL 25 mm extension cable and Proximitor sensor.

CONFIGURATION NOTE

For 330851-04-000-030-10-01-05, option 04 specifies a smooth 1.06 in diameter side-exit probe, 000 and 030 define the case geometry, 10 specifies 1.0 m total length, 01 specifies stainless steel armor and 05 specifies multiple approvals.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆
ORDER NUMBER BREAKDOWN

How the 330851-04-000-030-10-01-05 reference is structured

330851
Probe family3300 XL 25 mm proximity probe
04
Probe optionSmooth 1.06 in diameter · side exit
000
Unthreaded length0.0 in · smooth case
030
Case length3.0 in
10
Total length1.0 m
01
Cable armorStainless steel armor
05
Approval optionMultiple approvals
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

BENTLY NEVADA DOCUMENT ↗
General Information＋
ManufacturerBently Nevada
Model330851-04-000-030-10-01-05
Product type25 mm side-exit proximity probe
Primary applicationDifferential expansion
System3300 XL 25 mm
ORDER NUMBER CHECK＋
Probe family330851
Probe option04 · smooth 1.06 in diameter, side exit
Body000 unthreaded · 030 case length
Total length10 · 1.0 m
Armor / approvals01 stainless steel armor · 05 approvals
PERFORMANCE & SYSTEM＋
Nominal sensitivity0.787 V/mm · 20 mV/mil
Linear range12.7 mm · 500 mil
Compatible components3300 XL 25 mm extension cable and Proximitor sensor
TargetVerify target material and calibrated machine geometry
INSTALLATION & REPLACEMENT CHECK＋
Mechanical clearanceAllow for side-exit cable routing
Case geometrySmooth 1.06 in diameter · 3.0 in case
ApprovalsMatch the nameplate certification
CommissioningSet probe gap and verify differential-expansion channel scaling
SYSTEM APPLICATIONS

Where 330851-04-000-030-10-01-05 fits

Differential Expansion

Measures relative axial growth in large turbine generators

Side-Exit Mounting

Supports installations with radial cable routing

Long-Range Measurement

Provides a nominal 12.7 mm linear range in a complete system

Replacement Verification

Requires the exact seven-field order code

FAQ

Questions Buyers Ask Most

What is 330851-04-000-030-10-01-05 used for?＋
330851-04-000-030-10-01-05 is a 3300 XL 25 mm side-exit proximity probe used primarily for differential-expansion measurement on large steam turbine generators.
What does option 04 identify in 330851-04-000-030-10-01-05?＋
Option 04 identifies a smooth 1.06 in diameter probe with a side-exit cable. The installation must provide enough radial space for the cable and armor.
What case dimensions are specified by 000 and 030?＋
In 330851-04-000-030-10-01-05, 000 indicates a 0.0 in unthreaded length for the smooth case and 030 specifies a 3.0 in overall case length.
What cable configuration is ordered for 330851-04-000-030-10-01-05?＋
The 10 field specifies a 1.0 m total probe length, and option 01 specifies stainless steel armor. The matching extension cable must complete the required 3300 XL 25 mm system length.
What measurement range applies to 330851-04-000-030-10-01-05?＋
When used in a complete compatible 3300 XL 25 mm system, 330851-04-000-030-10-01-05 has a nominal 12.7 mm linear range and 0.787 V/mm sensitivity.
Can 330851-04-000-030-10-01-05 replace an 8 mm probe?＋
No direct substitution should be made. 330851-04-000-030-10-01-05 belongs to the 25 mm differential-expansion system and must use matching 25 mm extension cable, Proximitor sensor, geometry and channel scaling.
What should be supplied when ordering 330851-04-000-030-10-01-05?＋
Provide the full order code, quantity, machine and channel application, probe and sensor nameplates, existing extension-cable number, target material, side-exit clearance, approvals and delivery requirement.
CONTACT PRODUCT SPECIALIST

Confirm your 330851-04-000-030-10-01-05 configuration with Frida

Share the complete model and application details for compatibility, availability and lead-time checking.

OFFICIAL DATASHEET

Manuals and Official References for 330851-04-000-030-10-01-05

Official Baker Hughes manufacturer-reference information for the 330851-04-000-030-10-01-05 3300 XL 25 mm probe.

3300 XL 25 mm Side-Exit Proximity Probe

Baker Hughes Datasheet 163236 documents the 330851 ordering structure, 25 mm system performance and the exact mechanical, cable and approval selections represented by this complete code.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

Source: Baker Hughes 3300 XL 25 mm Proximity Transducer System Datasheet 163236 Rev. M.
3300 XL 25 MM DIFFERENTIAL EXPANSION SYSTEM RELATIONSHIP

How 330851-04-000-030-10-01-05 fits into the measurement system

Use only with the matching 3300 XL 25 mm extension cable, Proximitor sensor, target geometry and configured differential-expansion channel.

PROBE25 mm
OUTPUT0.787 V/mm
RANGE12.7 mm
EXITSide
APPLICATION AND VERIFICATION

Differential Expansion

Measures relative axial growth in large turbine generators

Side-Exit Mounting

Supports installations with radial cable routing

Long-Range Measurement

Provides a nominal 12.7 mm linear range in a complete system

Replacement Verification

Requires the exact seven-field order code
