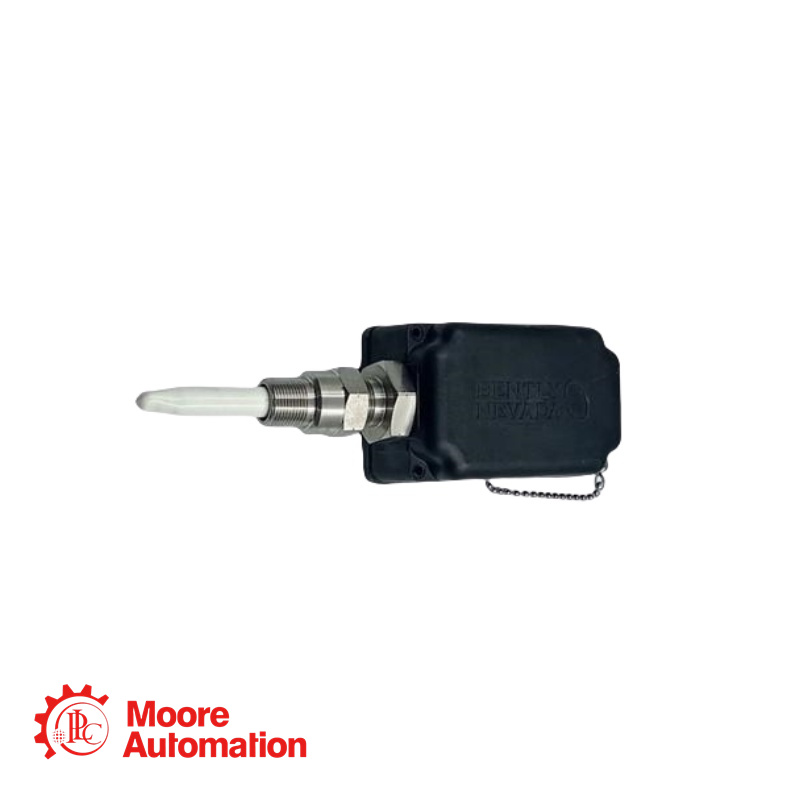

Conjunto de transdutor de proximidade Bently Nevada 330881-28-06-155-00-02 PROXPAC XL

Sales Manager

E-mail

WhatsApp

Chloe

plc@mvme.cn

+86 18030170117

Describtion

The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor. This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.

Information

Operating Temperature -52°C to +100°C (-62°F to +212°F)

Proxpac Storage Temperature -52°C to +105°C (-62°F to +221°F)
Output resistance 50 Ω
Standard 1 metre system Less than ±0.025mm (±1 mil) with components at 0 °C to +45 °C (+32 °F to +113 °F).
2 8 3300 XL 8 mm probe with Multiple Approvals

Order in increments of 10 mm. Minimum length: 40 mm Maximum length: 200 mm

For penetration lengths between 25 and 50 mm, counter bore may be required in machine case to reduce probe side view and/or rear view effects. Order in increments of 1 mm. Minimum length: 25 mm Maximum length: 760 mm
0 2 3/4-14 NPT (Required if ordering Standoff Adapter Option.)
