GE MARK V · EMERGENCY OVERSPEED BOARD

DS200TCEAG1B

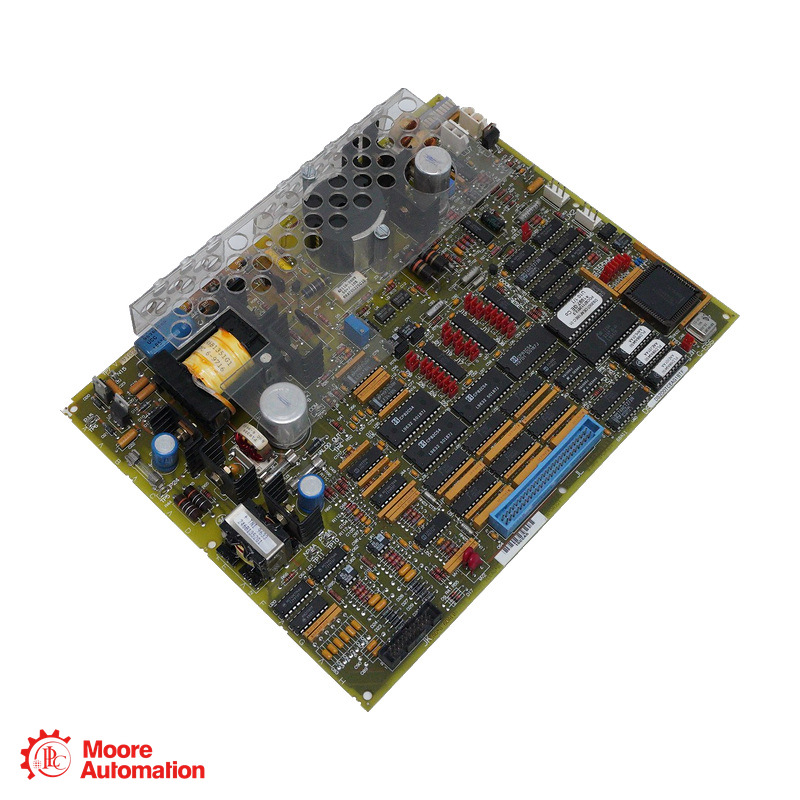

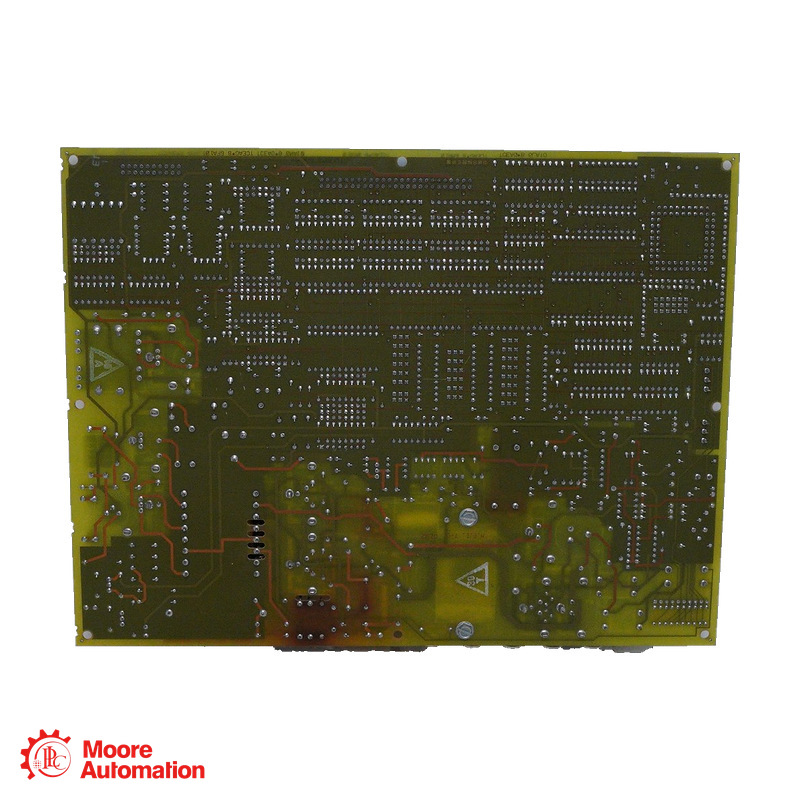

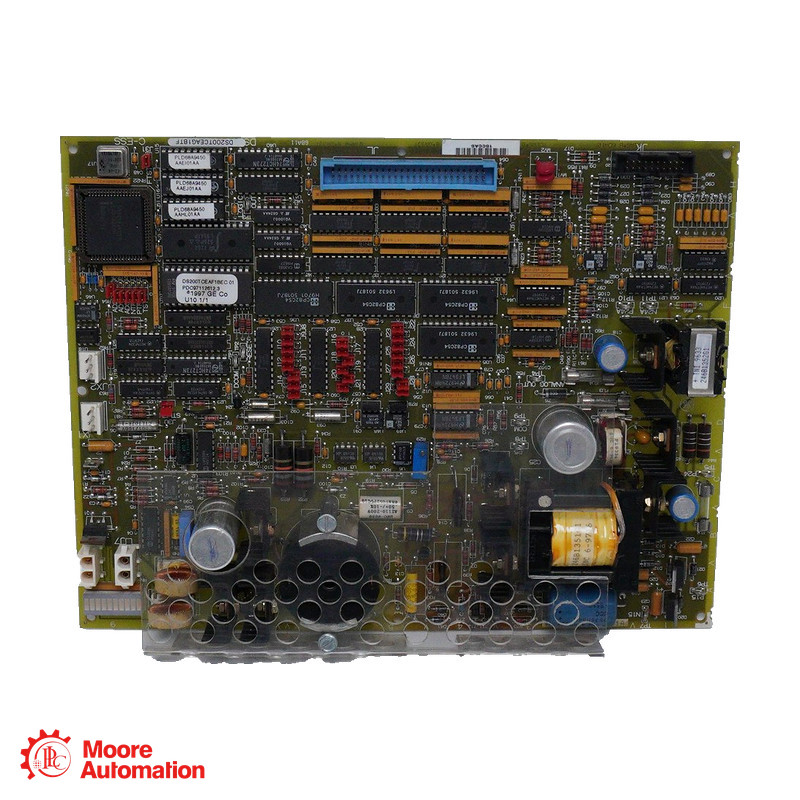

DS200TCEAG1B is a GE protective processor board for emergency overspeed monitoring, flame-detection signal processing and trip-signal generation in the Mark V turbine control system.

PRODUCT TYPEEMERGENCY OVERSPEED BOARD
PLATFORMMark V
FUNCTIONOverspeed
NETWORKIONET
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● EMERGENCY OVERSPEED BOARD
Mark V

DS200TCEAG1B

EMERGENCY OVERSPEED BOARD

MARK V · EMERGENCY OVERSPEED BOARD

MODULE ROLE
DS200TCEAG1B provides the protective-core processing path for shaft-speed, flame and synchronization inputs and transfers emergency-trip signals to the turbine trip board.
LONG DESCRIPTION
DS200TCEAG1B scales and conditions high- and low-shaft-speed, flame-detection and automatic-synchronization signals in the Mark V protective core. JK receives the input-signal paths from TCEB, while JL carries emergency-trip signals to TCTG. The JX1/JX2 IONET links exchange protective-core data with the I/O engine. Hardware jumpers confirm overspeed-frequency settings and select the IONET address; the installed I/O configuration defines the operating speed and protection values.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the DS200TCEAG1B Reference Is Structured

DS
ManufacturerGE, Salem, Virginia
200
Assembly levelBase-level board
TCEA
Functional acronymemergency overspeed board
G1
Group variationGroup 1
B
Functional revisionFirst functional revision B
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark V ↗
DS200TCEAG1B EMERGENCY OVERSPEED BOARD

Engineering data at a glance

Click “+” to expand more specifications.

FUNCTIONOverspeed
NETWORKIONET
INPUT PATHJK / TCEB
TRIP PATHJL / TCTG
Engineering functions and interfaces follow the referenced manufacturer documentation.
Configuration note Match the complete assemblyDS200TCEAG1B, installed system interfaces and application-specific configuration.
GENERAL INFORMATION −
BrandGE
Part numberDS200TCEAG1B
Product typeEmergency Overspeed Board
Protection roleEmergency turbine overspeed monitoring
Input signalsShaft speed, flame detection and synchronization
Trip interfaceTCTG through JL
PROTECTIVE INTERFACES ＋
JKInput signals received through TCEB
JLEmergency-trip output path to TCTG
JX1 / JX2Protective-core IONET connections
HARDWARE CONFIGURATION ＋
J2 / J3IONET termination-resistor selection
J4 / J5 / J6IONET address selection
Overspeed jumpersHardware confirmation of configured shaft-speed trip frequencies
FUNCTIONAL CONTEXT ＋
System role: The protective processors evaluate the configured overspeed conditions and send trip signals to separate turbine-trip relays. The documented TCTG relay arrangement performs the emergency-trip voting function; the board alone is not the entire protection system.
Source:GEH-6153, Chapter 4 pages 4-15–4-16 and Appendix A, TCEA
FAQ

Questions Buyers Ask Most

What is the role of DS200TCEAG1B?＋

DS200TCEAG1B is the TCEA emergency overspeed board used as a protective processor in the Mark V protective core. It evaluates speed-related protection signals and supplies the emergency-trip path to the turbine trip board.

Which signals are processed by DS200TCEAG1B?＋

DS200TCEAG1B processes high- and low-shaft-speed signals, flame-detection information and automatic-synchronization inputs. The protective-core data is scaled and conditioned before being transferred through the IONET path.

How does DS200TCEAG1B receive its protective input signals?＋

DS200TCEAG1B receives the relevant input paths from TCEB through JK. The TCEB interface distributes the field signals to the protective processors in the documented protective-core arrangement.

Where does DS200TCEAG1B send emergency-trip signals?＋

DS200TCEAG1B uses JL to send emergency-trip signals to the TCTG turbine trip board. The separate trip-relay arrangement performs the documented voting function before initiating the unit trip.

How does DS200TCEAG1B communicate protective data?＋

DS200TCEAG1B uses JX1 and JX2 for the daisy-chained IONET path. Protective-core information is exchanged with the associated I/O engine through this network connection.

How are the overspeed settings determined for DS200TCEAG1B?＋

DS200TCEAG1B uses installed I/O configuration values for shaft base speed and overspeed levels, with hardware jumpers confirming the trip-frequency settings. These settings are specific to the turbine protection configuration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
DS200TCEAG1B

Official manufacturer-documentation status for GE DS200TCEAG1B.

Official datasheet status

No current official DS200TCEAG1B product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

No working manufacturer-hosted instruction or datasheet PDF was confirmed; contact Frida for the applicable document.

GE MARK V SYSTEM RELATIONSHIP

How DS200TCEAG1B Fits Mark V

GE is the manufacturer brand; GE Mark V is the product family; and DS200TCEAG1B is the emergency overspeed board.

GE · BRAND
GE Mark VEmergency Overspeed Board
SYSTEM ROLE

Function

provides the protective-core processing path for shaft-speed, flame and synchronization inputs and transfers emergency-trip signals to the turbine trip board.

MODULE / CONFIGURATION

Protective Interfaces

Input signals received through TCEB

ASSEMBLY FORMAT

DS200TCEAG1B · TCEA Board

GE Mark V emergency overspeed board.

System relationship: provides the protective-core processing path for shaft-speed, flame and synchronization inputs and transfers emergency-trip signals to the turbine trip board.
APPLICATION AREAS

Application map for DS200TCEAG1B

Emergency OverspeedProcess protective shaft-speed inputs
Flame MonitoringCondition the protective flame-detection signal path
Mark V DS200TCEAG1B DS200TCEAG1B · Emergency Overspeed Board
Trip-System InterfaceTransmit emergency-trip commands to TCTG
Protective-Core DataExchange protective measurements through IONET
ABOUT MOORE AUTOMATION

A trusted industrial automation sourcing partner

Moore Automation Limited supplies industrial automation spare parts to customers worldwide, with dedicated sourcing, part-number verification, pre-shipment confirmation and responsive sales support.

Global sourcing Pre-shipment verification One-year warranty
