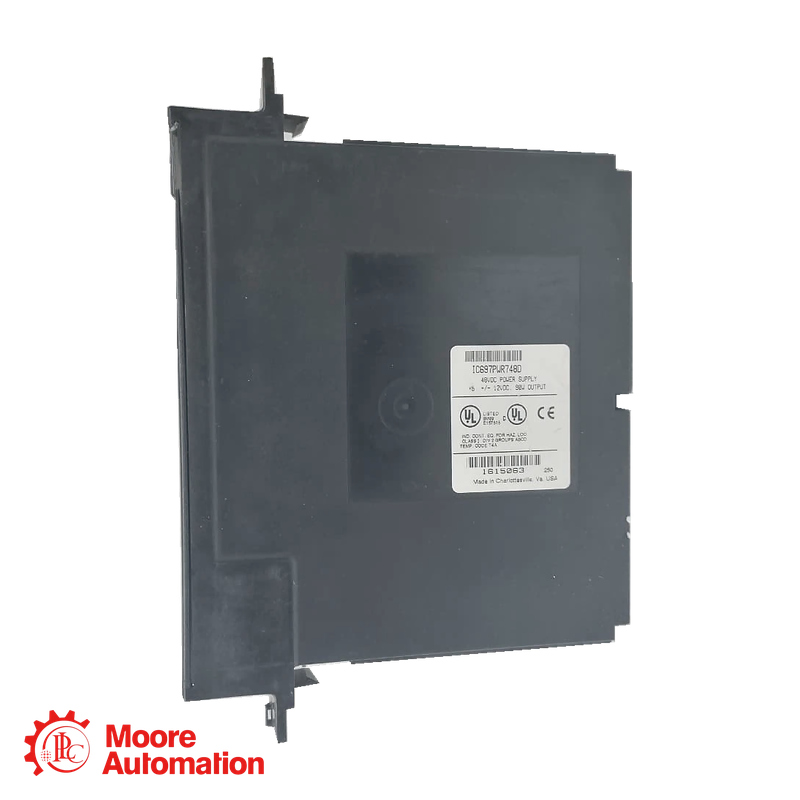

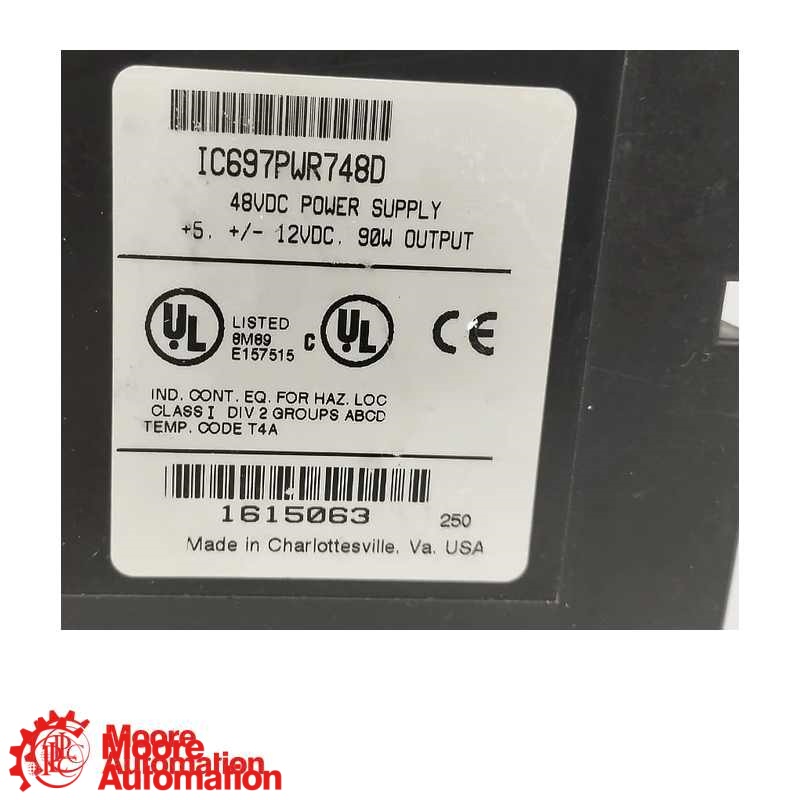

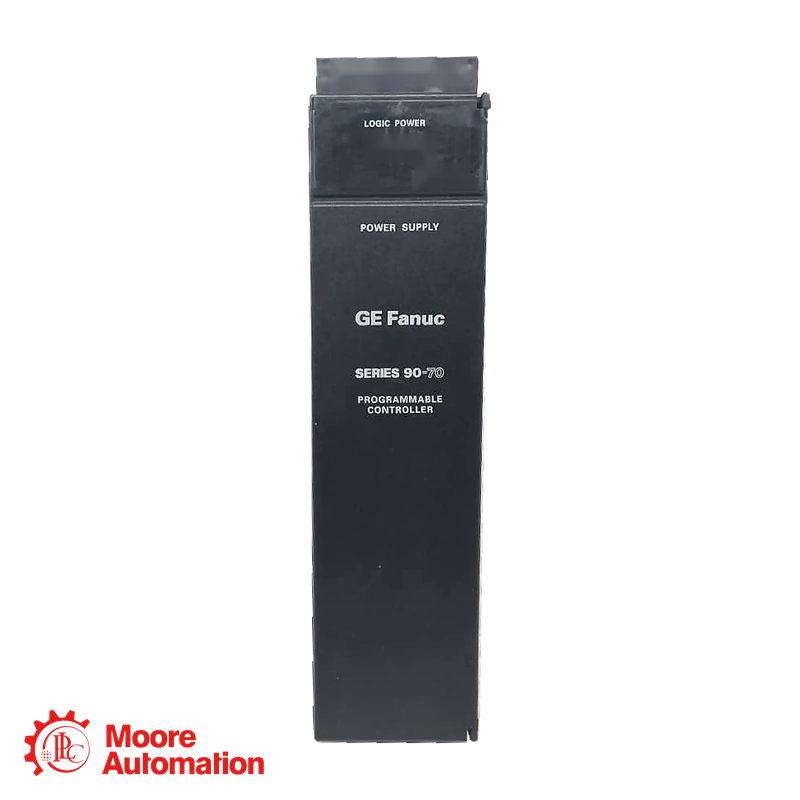

GE Fanuc IC697PWR748 Series 90-70 48 VDC 90 W Power Supply Module
GE Fanuc IC697PWR748 Series 90-70 48 VDC 90 W Power Supply Module
GE Fanuc IC697PWR748 Series 90-70 48 VDC 90 W Power Supply Module

GE Fanuc IC697PWR748 Series 90-70 48 VDC 90 W Power Supply Module

GE FANUC SERIES 90-70 · 48 VDC 90 W POWER SUPPLY

IC697PWR748

The IC697PWR748 is a GE Fanuc Series 90-70 48 VDC input power supply rated for 90 W total output. Verify the exact catalog number, 35–60 VDC input source, rack load, output-rail demand, wiring and second-rack connection before replacement.

PRODUCT TYPE48 VDC 90 W POWER SUPPLY MODULE
PLATFORMSeries 90-70
INPUT RANGE35–60 VDC
FUNCTION90 W MAXIMUM OUTPUT
MANUFACTURERGE Fanuc
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE Fanuc ● 48 VDC 90 W POWER SUPPLY MODULE
GE FANUC SERIES 90-70

IC697PWR748

48 VDC 90 W POWER SUPPLY MODULE

48 VDC NOMINAL INPUT · 35–60 VDC RANGE · 90 W OUTPUT

MODULE ROLE
IC697PWR748 is a GE Fanuc Series 90-70 48 VDC input power supply module that delivers up to 90 W total output to a compatible rack.
CONFIGURATION NOTE
IC697PWR748 is a Series 90-70 48 VDC, 90 W power supply module for providing rack backplane power to compatible CPU, communication and I/O modules. Its DC input source, wiring, grounding, rack load and installed power-supply arrangement must match the target Series 90-70 system.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Fanuc Series 90-70 ↗
IC697PWR748 48 VDC 90 W POWER SUPPLY MODULE

Engineering data at a glance

Click “+” to expand more specifications.

NOMINAL INPUT48 VDC
INPUT RANGE35–60 VDC
TOTAL OUTPUT90 W maximum
OUTPUT RAILS+5 VDC / +12 VDC / −12 VDC
The input, output and ride-through values follow the GE Fanuc Series 90-70 power-supply documentation for IC697PWR748.
Official product configuration Confirm the complete model IC697PWR748, input source, rack load, output-rail demand, wiring and any IC697CBL700 second-rack connection before ordering.
GENERAL INFORMATION −
BrandGE Fanuc
Part numberIC697PWR748
Product type48 VDC 90 W POWER SUPPLY MODULE
Product familyGE Fanuc Series 90-70
Nominal input48 VDC
PlatformSeries 90-70
INPUT & POWER ＋
Input range35–60 VDC input range
Catalog numberIC697PWR748
System checkMatch the exact catalog number, input source, rack load, wiring and second-rack connection
OUTPUTS & RACK ＋
Total output90 W maximum total output
Input power160 W at full load
Output rails+5 VDC 18 A; +12 VDC 1.5 A; −12 VDC 1.0 A
Rack positionLeftmost rack slot
Second-rack connectionIC697CBL700 may feed a second rack within load limits
PROTECTION & INSTALLATION ＋
Protection and ride-through 10 ms ride-through with overcurrent and overvoltage protection
Source: GE Fanuc Series 90-70 power-supply documentation identifies IC697PWR748 as a 48 VDC input, 90 W module with +5 VDC, +12 VDC and −12 VDC outputs.
FAQ

Questions Buyers Ask Most

What is the role of IC697PWR748 in Series 90-70?＋

IC697PWR748 supplies regulated backplane power to compatible Series 90-70 rack modules.

What input voltage does IC697PWR748 accept?＋

IC697PWR748 accepts a nominal 48 VDC input over a 35–60 VDC operating range.

What total output power does IC697PWR748 provide?＋

IC697PWR748 provides up to 90 W total output across its regulated +5 VDC, +12 VDC and −12 VDC rails.

Which output rails are provided by IC697PWR748?＋

IC697PWR748 provides +5 VDC at 18 A, +12 VDC at 1.5 A and −12 VDC at 1.0 A.

What should be checked before replacing IC697PWR748?＋

Confirm the exact catalog number, 35–60 VDC input source, rack load, rail demand, wiring and any second-rack connection before replacing IC697PWR748.

Other Available Revisions for the IC697PWR748?＋

No other exact IC697PWR748 revision was confirmed in the current public manufacturer material reviewed. Confirm the complete catalog number and hardware revision on the installed power supply before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IC697PWR748

Official manufacturer-reference information for GE Fanuc IC697PWR748.

Official documentation status

GE Fanuc Series 90-70 power-supply documentation identifies IC697PWR748 as a 48 VDC input, 90 W power supply with regulated +5 VDC, +12 VDC and −12 VDC outputs. A direct official PDF URL was not verified for this exact model.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

The product identification on this page follows GE Fanuc Series 90-70 power-supply documentation for IC697PWR748. Contact Frida for the exact applicable official document and revision.

GE FANUC SERIES 90-70 POWER SUPPLY

How IC697PWR748 Powers a Series 90-70 Rack

GE Fanuc is the manufacturer brand; Series 90-70 is the product family; and IC697PWR748 is a 48 VDC input power supply module rated for 90 W total output.

GE Fanuc · BRAND
Series 90-7048 VDC input · 90 W total output
MODULE ROLE

48 VDC input · 90 W total output

Converts the external 48 VDC source into regulated backplane power for compatible Series 90-70 modules.

MODULE / CONFIGURATION

35–60 VDC input · three regulated output rails

The module accepts 35–60 VDC and supplies +5 VDC, +12 VDC and −12 VDC rails; verify rack load, wiring and any second-rack connection before replacement.

ORDER DATA

IC697PWR748 · 48 VDC 90 W Series 90-70 Power Supply

Do not substitute another power supply without checking the exact catalog number, input source, rack load, output-rail demand, wiring and Series 90-70 compatibility.

System relationship: verify the exact catalog number, 35–60 VDC input source, rack load, +5 V/+12 V/−12 V demand, wiring and any IC697CBL700 second-rack connection.
APPLICATION AREAS

Application map for IC697PWR748

Series 90-70 Main Rack PowerSupply regulated backplane power to compatible Series 90-70 modules
Industrial Control CabinetsIntegrate a 48 VDC-powered Series 90-70 rack in a protected enclosure
APPLICATION CENTER IC697PWR748 IC697PWR748 · 48 VDC 90 W Series 90-70 Power Supply
Dual-Rack Power ArrangementPower a second rack through IC697CBL700 when total load limits permit
Rack Load and WiringMatch output-rail demand, input wiring and second-rack load before replacement.
