 /GE Fanuc IS215UCCCH4A Mark VIe UCCC Controller Board

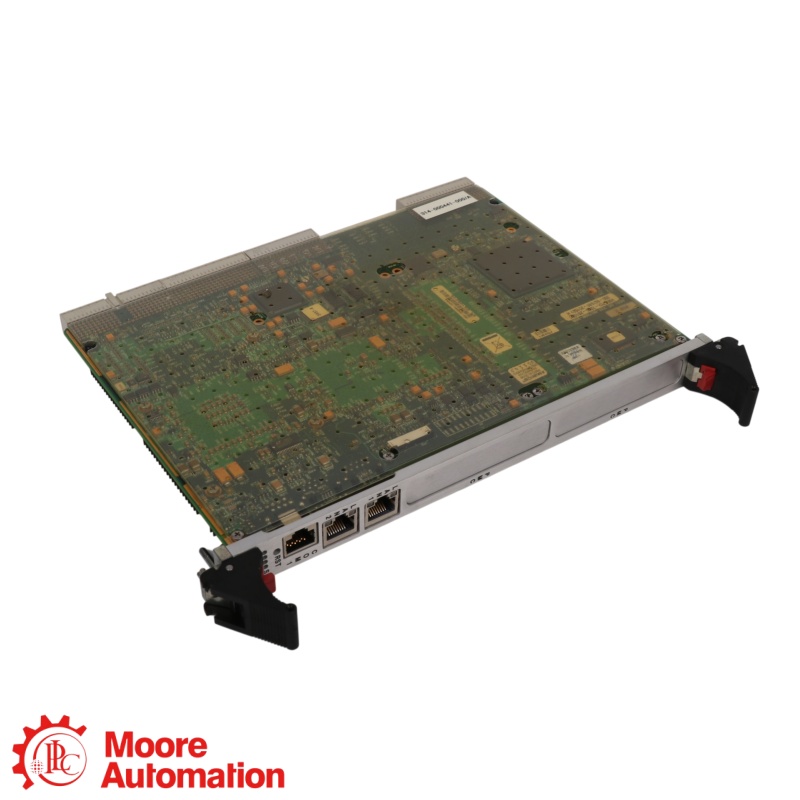

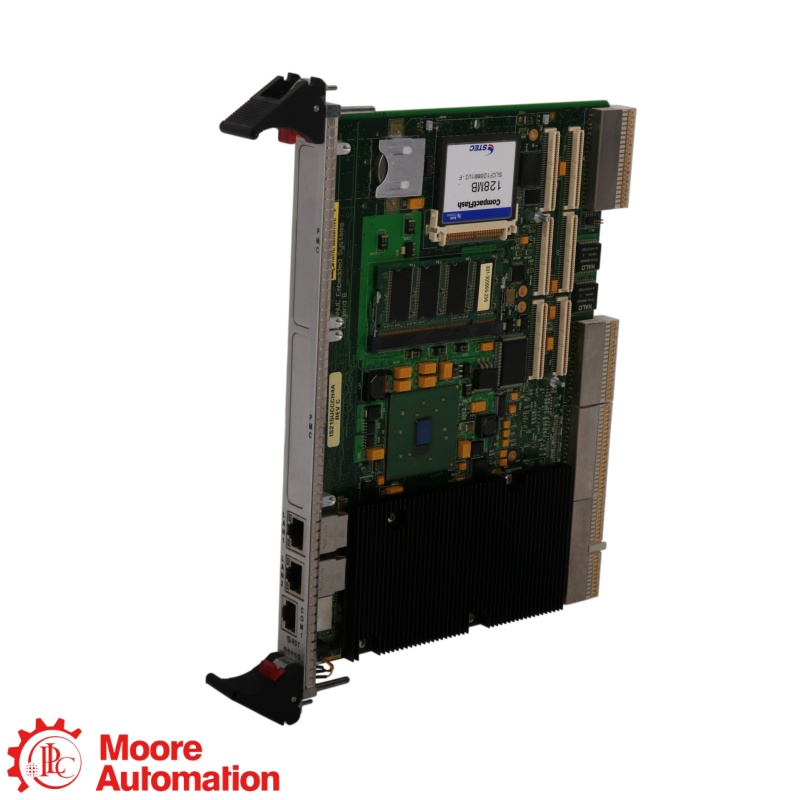

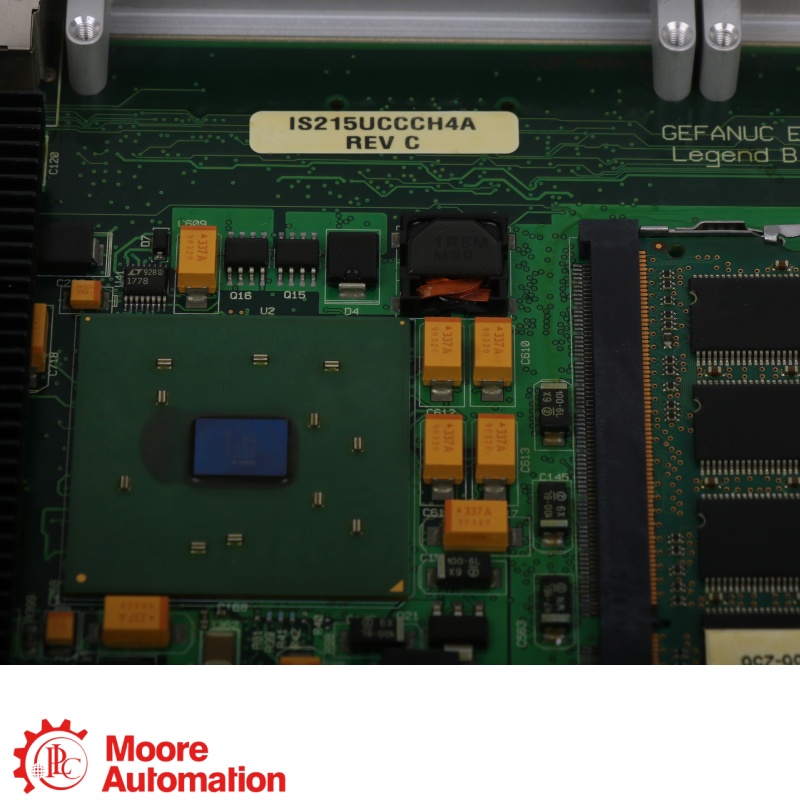

GE Fanuc IS215UCCCH4A Mark VIe UCCC Controller Board
GE Fanuc IS215UCCCH4A Mark VIe UCCC Controller Board
GE Fanuc IS215UCCCH4A Mark VIe UCCC Controller Board

GE Fanuc IS215UCCCH4A Mark VIe UCCC Controller Board

GE FANUC MARK VIe · UCCC CONTROLLER

IS215UCCCH4A

The IS215UCCCH4A is identified as a GE Fanuc Mark VIe UCCC controller board. GE Vernova’s UCCC-family reference lists a 1.6 GHz Intel Pentium M processor, five 100 MB Ethernet ports and a 20–36 Vdc input range for the legacy UCCC controller platform.

PRODUCT TYPEMARK VIe UCCC CONTROLLER BOARD
PROCESSOR1.6 GHz Pentium M
ETHERNET5 × 100 MB
INPUT RANGE20–36 Vdc
MANUFACTURERGE Fanuc
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE Fanuc● MARK VIe UCCC CONTROLLER BOARD
GE FANUC MARK VIe

IS215UCCCH4A

UCCC CONTROLLER BOARD

MARK VIe · 1.6 GHz PROCESSOR · FIVE 100 MB ETHERNET PORTS

PRODUCT ROLE
IS215UCCCH4A is identified as a controller board in the GE Fanuc Mark VIe UCCC platform.
TECHNICAL CONTEXT
GE Vernova’s legacy-controller comparison lists the UCCC family with a 1.6 GHz Intel Pentium M processor, 128 MB DDR memory, 128 MB CompactFlash and five 100 MB Ethernet ports.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Fanuc Mark VIe ↗
IS215UCCCH4A MARK VIe UCCC CONTROLLER BOARD

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT389 mm
WIDTH131 mm
DEPTH235 mm
MAX POWER50 W
The values shown are from GE Vernova’s official UCCC-family comparison. Confirm the complete IS215UCCCH4A catalog number and installed revision before replacement.
Installation contextInstall IS215UCCCH4A vertically in the compatible Mark VIe controller arrangement. Verify the complete catalog number, power input, network assignment and mechanical fit before commissioning.
GENERAL INFORMATION −
BrandGE Fanuc
Part numberIS215UCCCH4A
Product typeMark VIe UCCC controller board
Controller familyMark VIe UCCC
System roleLegacy controller core
PROCESSOR & MEMORY ＋
ProcessorIntel Pentium M
CPU frequency1.6 GHz
CPU cores1
Memory128 MB DDR
Flash storage128 MB CompactFlash
NETWORK & INTERFACES ＋
Ethernet ports5 total
Ethernet speed5 × 100 MB
ConsoleRJ-45; adapter sold separately
Additional portsNone listed
POWER & INSTALLATION ＋
Input voltage20 V minimum · 28 V nominal · 36 V maximum
Maximum power consumption50 W
OrientationVertical
Dimensions389 × 131 × 235 mm (H × W × D)
Operating systemQNX 6.5
Source: GE Vernova GEA35665 Mark VIe UCSE datasheet, legacy-controller comparison for the UCCC family. No exact-model manufacturer PDF for IS215UCCCH4A was confirmed publicly.
FAQ

Questions Buyers Ask Most

What is IS215UCCCH4A?＋

IS215UCCCH4A is identified as a GE Fanuc Mark VIe UCCC controller board for industrial control-system use.

What processor is associated with IS215UCCCH4A?＋

For IS215UCCCH4A, GE Vernova’s UCCC-family comparison lists a 1.6 GHz Intel Pentium M single-core processor.

How many Ethernet ports are listed for IS215UCCCH4A?＋

For IS215UCCCH4A, the official family comparison lists five 100 MB Ethernet ports.

What power input applies to IS215UCCCH4A?＋

For IS215UCCCH4A, the official family data lists 20 V minimum, 28 V nominal and 36 V maximum, with maximum power consumption of 50 W.

What should be verified before ordering IS215UCCCH4A?＋

Confirm the full IS215UCCCH4A catalog number, installed controller revision, network arrangement and mechanical compatibility before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS215UCCCH4A

Documentation support for the GE Fanuc IS215UCCCH4A Mark VIe UCCC Controller Board.

Official datasheet status

No direct exact-model manufacturer-hosted IS215UCCCH4A PDF was confirmed in the public documentation. For the exact applicable manual, revision compatibility and ordering support, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

UCCC-family technical statements on this page are based on GE Vernova’s official legacy-controller comparison; contact Frida for exact IS215UCCCH4A documentation.

GE FANUC MARK VIe RELATIONSHIP

How IS215UCCCH4A Fits into the Mark VIe Platform

GE Fanuc is the manufacturer brand; Mark VIe is the control platform; and IS215UCCCH4A is identified as a UCCC controller board.

GE Fanuc · BRAND
GE Fanuc Mark VIeUCCC Controller Board
SYSTEM ROLE

Mark VIe Controller Core

Supports controller processing and communications in a compatible Mark VIe arrangement.

PROCESSOR / NETWORK

1.6 GHz · 5 Ethernet Ports

GE Vernova’s UCCC-family comparison lists a 1.6 GHz Pentium M processor and five 100 MB Ethernet ports.

ORDER DATA

IS215UCCCH4A · Complete Model

Match the complete catalog number and confirm controller revision, power, network and mechanical compatibility.

System relationship: verify the complete IS215UCCCH4A identity and the installed Mark VIe controller arrangement before ordering.
APPLICATION AREAS

Application map for IS215UCCCH4A

Mark VIe Controller CoreController processing within a compatible GE Mark VIe control arrangement
Plant and Turbine ControlExecution of configured industrial control and sequencing functions
APPLICATION CENTERIS215UCCCH4AMark VIe UCCC Controller Board
Ethernet Control NetworksFive UCCC-family 100 MB Ethernet ports support controller network connections
Vertical Controller InstallationUse in the compatible vertical controller mounting arrangement
