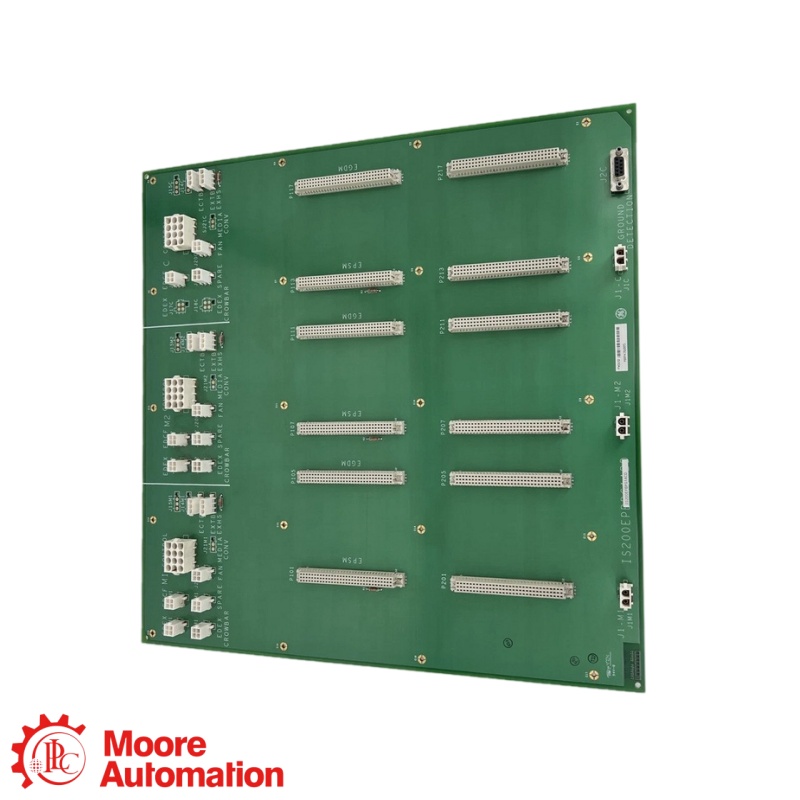

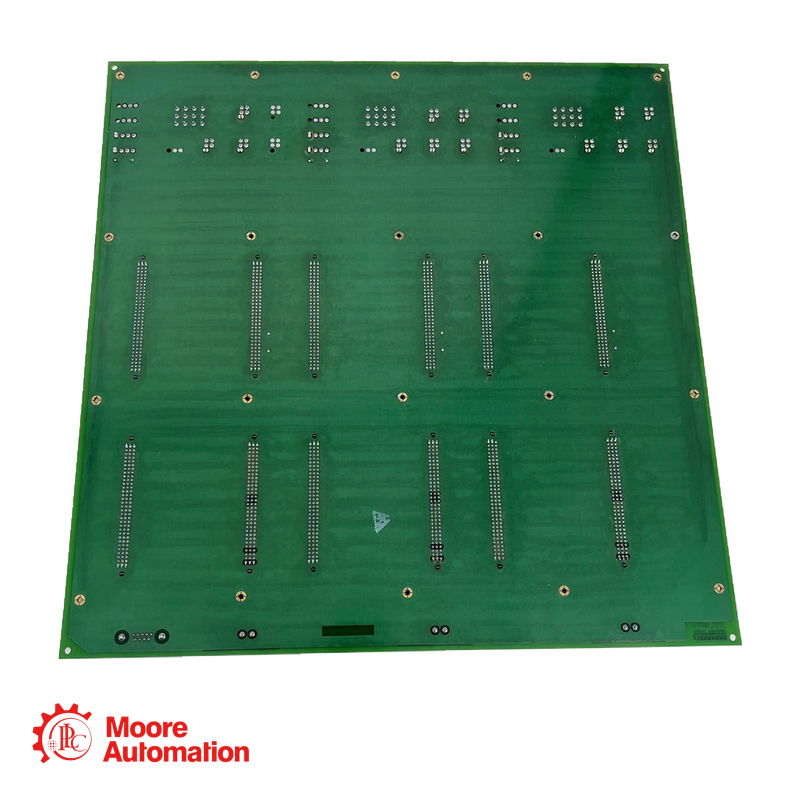

 /GE IS200EPBPG1ACD EX2100 Exciter Power Backplane
GE IS200EPBPG1ACD EX2100 Exciter Power Backplane
GE IS200EPBPG1ACD EX2100 Exciter Power Backplane
GE IS200EPBPG1ACD EX2100 Exciter Power Backplane

GE IS200EPBPG1ACD EX2100 Exciter Power Backplane

GE EX2100 · EPBP POWER BACKPLANE

IS200EPBPG1ACD

The IS200EPBPG1ACD is a GE EX2100 Exciter Power Backplane. It provides the physical and electrical distribution platform for independent EPSM power supplies and EGDM ground-detector modules while routing control-level and terminal-board power within the excitation system.

PRODUCT TYPEEX2100 EPBP BACKPLANE
FUNCTIONPOWER DISTRIBUTION
MODULE SUPPORTM1 · M2 · C SECTIONS
POWER PATHEPDM + EPSM INTERFACE
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE● EX2100 EXCITER POWER BACKPLANE
GE EX2100

IS200EPBPG1ACD

EX2100 EXCITER POWER BACKPLANE

EX2100 · EPSM MODULE SUPPORT · CONTROL POWER DISTRIBUTION

PRODUCT ROLE
IS200EPBPG1ACD is the GE EX2100 exciter power backplane that supports the excitation-control power modules.
TECHNICAL CONTEXT
IS200EPBPG1ACD provides the backplane structure and distribution paths for the EX2100 excitation-control power section. The EPBP accepts the 125 V dc source from the adjacent EPDM and carries three electrically isolated EPSM modules assigned to the M1, M2 and C controller sections. It also provides positions for three EGDM ground-detector modules, distributes logic-level supply rails from each EPSM to its controller section, and routes 70 V dc contact-wetting power and 24 V dc auxiliary power toward the connected terminal-board circuits.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE EX2100 ↗
IS200EPBPG1ACD EX2100 EXCITER POWER BACKPLANE

Engineering data at a glance

Click “+” to expand more specifications.

BOARD ROLEPower Backplane
DISTRIBUTIONPower Distribution
SECTIONSM1 · M2 · C
INTERFACESEPDM + EPSM
The values shown summarize GE Industrial Systems GEI-100463 EPBP instructions and the GEH-6632 EX2100 system description. Confirm the complete IS200EPBPG1ACD catalog number and installed power-rack configuration before replacement.
System contextUse IS200EPBPG1ACD with the approved EX2100 EPDM, EPSM and EGDM hardware for the installed M1, M2 and C control arrangement. Verify the complete suffix and system drawings before commissioning.
GENERAL INFORMATION −
BrandGE
Part numberIS200EPBPG1ACD
Product typeExciter Power Backplane
Excitation systemEX2100 Excitation Control
System roleBackplane for excitation-control power distribution
POWER-BACKPLANE FUNCTIONS ＋
Board functionPower-supply mounting and distribution
Input source125 V dc from adjacent EPDM
Controller sectionsM1, M2 and C
Power modulesUp to three EPSM modules
Ground detectionUp to three EGDM modules
DISTRIBUTED POWER PATHS ＋
Logic-level powerLogic-level power,From each EPSM to its controller,Terminal-board power,70 V dc and 24 V dc distribution,Module connection,EPSM DIN connectors,Section isolation,Independent controller power sections,Manual reference,GEI-100463
Terminal-board power70 V dc and 24 V dc distribution
Module connectionEPSM DIN connectors
Section isolationIndependent controller power sections
HARDWARE & SYSTEM INTERFACE ＋
Board familyEPBP
Upstream moduleEPDM power distribution module
Mounted modulesEPSM and EGDM
System platformEX2100 Excitation Control
Selection basisComplete model and rack configuration
Source: GE Industrial Systems GEI-100463, Exciter Power Backplane EPBP, and GEH-6632 EX2100 system documentation. No direct manufacturer-hosted exact-model PDF was confirmed publicly.
FAQ

Questions Buyers Ask Most

What is IS200EPBPG1ACD?＋

IS200EPBPG1ACD is the GE EX2100 Exciter Power Backplane used to mount and interconnect excitation-control power modules.

What modules are supported by IS200EPBPG1ACD?＋

IS200EPBPG1ACD provides positions for up to three EPSM power-supply modules and three EGDM ground-detector modules.

How does IS200EPBPG1ACD distribute control power?＋

IS200EPBPG1ACD accepts the 125 V dc source from the EPDM and routes logic-level outputs from each EPSM to the M1, M2 and C controller sections.

Which auxiliary supplies are routed by IS200EPBPG1ACD?＋

IS200EPBPG1ACD distributes 70 V dc contact-wetting power and 24 V dc auxiliary power toward connected terminal-board circuits.

What should be verified before ordering IS200EPBPG1ACD?＋

IS200EPBPG1ACD requires verification of the complete ACD suffix, EPDM connection, EPSM/EGDM population and installed EX2100 rack arrangement before ordering.

Other Available Revisions for the IS200EPBPG1ACD＋

IS200EPBPG1ACD has no interchangeable revision identified in current public manufacturer documentation. Contact Frida with the complete nameplate and installed-system details.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200EPBPG1ACD

Documentation support for the GE IS200EPBPG1ACD EX2100 Exciter Power Backplane.

Official datasheet status

No direct exact-model manufacturer-hosted IS200EPBPG1ACD PDF was confirmed in the public documentation. For the applicable GE board instructions, revision compatibility and ordering support, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Board-level statements on this page follow the applicable GE Industrial Systems EX2100 board instructions; contact Frida for the exact IS200EPBPG1ACD document package.

GE EX2100 EPBP RELATIONSHIP

How IS200EPBPG1ACD Fits into the EX2100 Excitation System

GE is the manufacturer brand; EX2100 is the excitation-control system; and IS200EPBPG1ACD is the Exciter Power Backplane.

GE · BRAND
GE EX2100Exciter Power Backplane
SYSTEM ROLE

M1 · M2 · C Power Platform

Supports independent power modules for the three EX2100 controller sections and the associated ground-detection modules.

FUNCTION / INTERFACES

EPDM · EPSM · EGDM

Accepts the EPDM source, carries EPSM and EGDM modules, and routes logic and auxiliary power through the excitation-control cabinet.

ORDER DATA

IS200EPBPG1ACD · Complete Model

Match the complete catalog number and confirm the ACD suffix, module population and installed EX2100 power-rack arrangement.

System relationship: verify the complete IS200EPBPG1ACD identity and the installed EX2100 power-distribution configuration before ordering.
APPLICATION AREAS

Application map for IS200EPBPG1ACD

Controller Power DistributionDistribution of EPSM logic-level supplies to the M1, M2 and C controller sections
EPSM Module SupportMechanical and electrical connection platform for up to three isolated exciter power supplies
APPLICATION CENTERIS200EPBPG1ACDEX2100 Exciter Power Backplane
Ground-Detector SupportBackplane positions and connections for up to three EGDM modules
Terminal-Board Power RoutingDistribution paths for 70 V dc contact-wetting and 24 V dc auxiliary supplies
