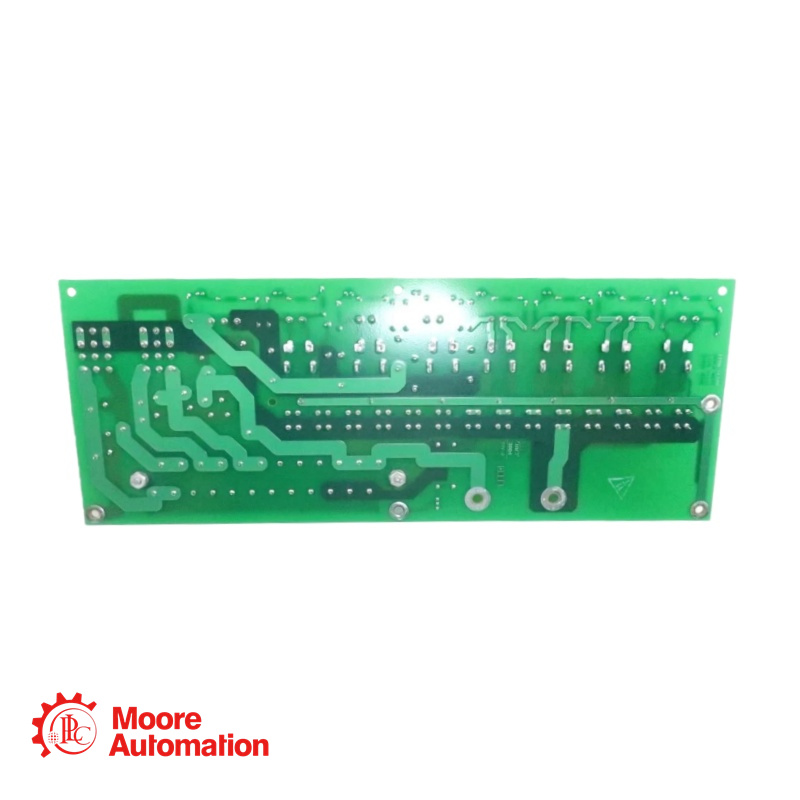

The GE IS200EPDMG1A is an Exciter Power Distribution Module for the EX2100 Series Excitation Control System in GE turbine applications.
Marca :
GENúmero da peça :
IS200EPDMG1APeso :
1.1 kgDimensão :
8x18.6x26.1cmPaís de origem :
USACódigo SH :
8537101190Descrição :
Exciter Power Distribution ModuleGet Price Immediately
◆Frida (★★★★★ Sales Manager)
◆Phone: +86 15359408275
Product Overview
→

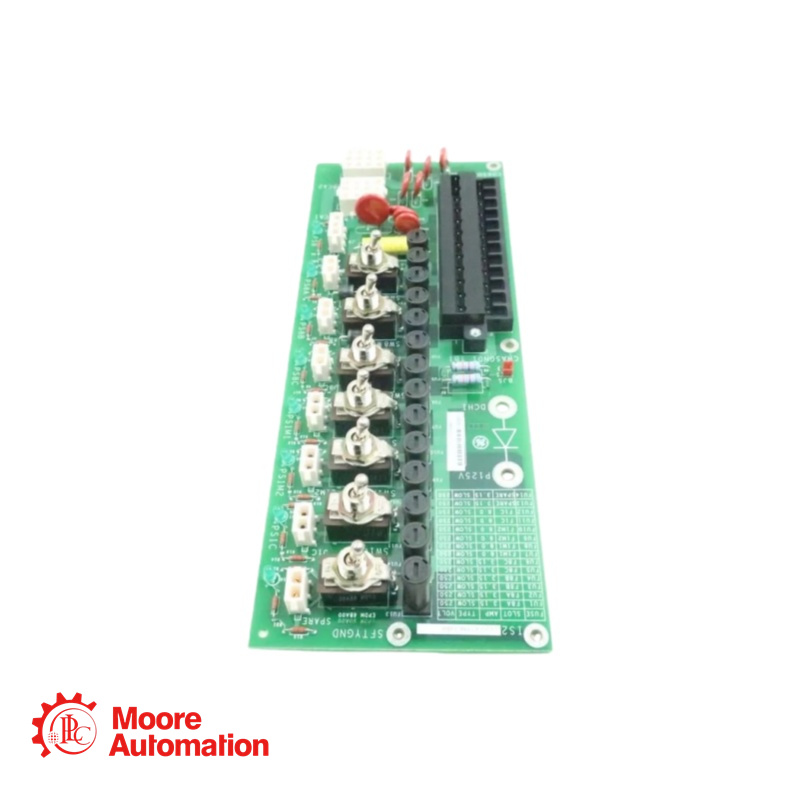

The GE IS200EPDMG1A serves as the central power distribution hub for the entire exciter control cabinet. It receives primary 125 V DC power from the station battery and can accept one or two 120 V AC backup inputs. The AC inputs are rectified to 125 V DC via external AC-to-DC Converters (DACA), and all DC sources are diode-coupled to form a redundant DC bus (P125V and R125V). The EPDM filters, fuses, and switches individual power outputs to each critical exciter board, including Gate Pulse Amplifiers, Terminal Boards, and Controller Power Supply Modules. Each output is equipped with a toggle switch and a green LED indicator for power availability monitoring.
→
Primary Input: 125 V DC (station battery)
Backup Inputs: 1 or 2 channels of 120 V AC (rectified via external DACA units)
DC Bus Configuration: Diode-coupled redundant DC bus (P125V / R125V), center-grounded (±62.5 V to ground)
Output Channels: 12 individually fused and switched power outputs
Input Terminal Block: TB1 (for AC and DC input connections)
Relay Channels: 12 (for power control/switching)
Control Power Supply: 28 V DC
Operating Temperature: -35°C to +65°C
