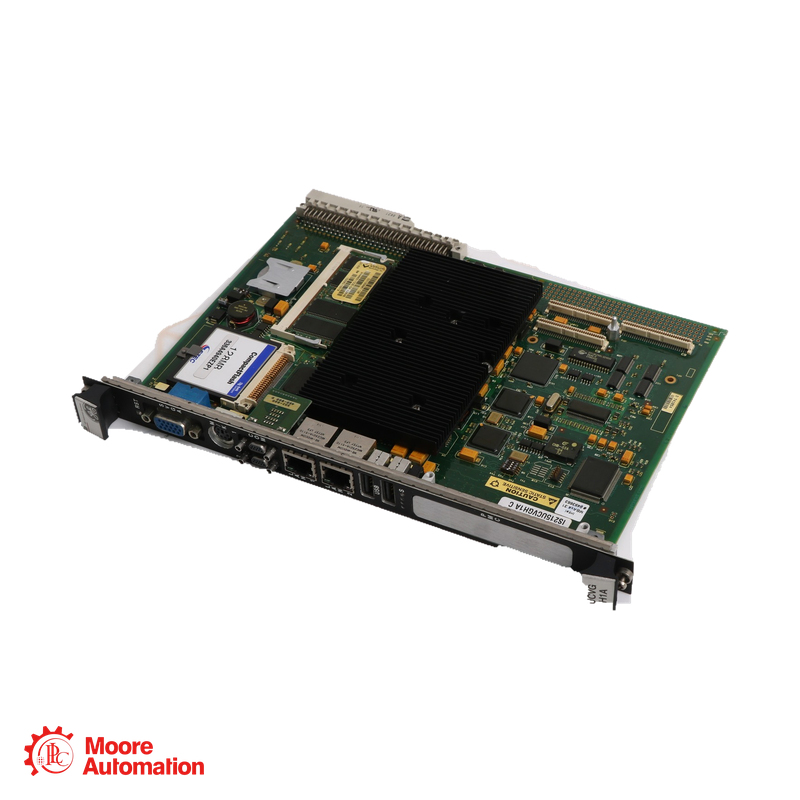

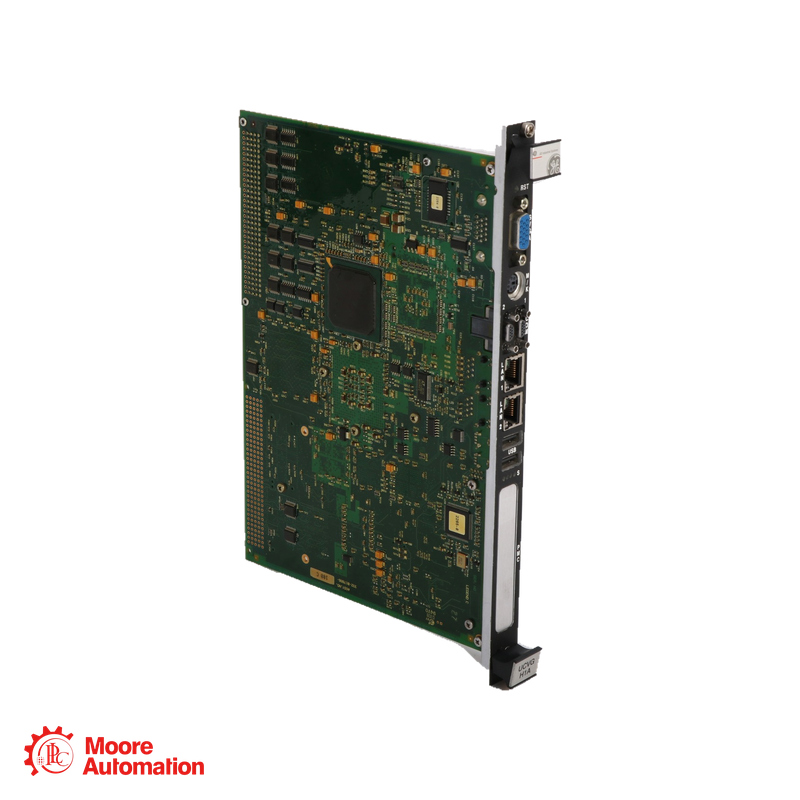

GE IS215UCVGH1A Mark VI UCVG Controller
GE IS215UCVGH1A Mark VI UCVG Controller
GE IS215UCVGH1A Mark VI UCVG Controller

GE IS215UCVGH1A Mark VI UCVG Controller

GE MARK VI · SINGLE-SLOT UCVG CONTROLLER

IS215UCVGH1A

IS215UCVGH1A is a GE Mark VI UCVG controller that runs turbine application software in a single VME rack slot. Its Intel Ultra Low Voltage Celeron processor operates at 650 MHz, with 128 MB SDRAM, 128 MB flash storage and two 10/100 Ethernet ports.

PRODUCT TYPEUCVG CONTROLLER
PLATFORMMark VI
PROCESSOR650 MHz
ETHERNET2 × 10/100
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● SINGLE-SLOT UCVG CONTROLLER
MARK VI

IS215UCVGH1A

UCVG CONTROLLER

MARK VI · VME CONTROLLER · UCVG

MODULE ROLE
IS215UCVGH1A is a single-slot UCVG controller for GE Mark VI turbine control systems. It executes application software and exchanges control-system data with the I/O hardware through the VME bus and VCMI communication board.
LONG DESCRIPTION
IS215UCVGH1A combines a 650 MHz Intel Ultra Low Voltage Celeron processor, 128 MB SDRAM and 128 MB flash storage. Its first Ethernet port connects to the Unit Data Highway; the second supports a separate logical subnet for Ethernet Modbus or private EGD. QNX schedules real-time application execution, while the serial interfaces provide diagnostic and Modbus communication paths.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS215UCVGH1A Reference Is Structured

IS
Issuing organizationGE Power, Salem, Virginia
2
Substance designationLegacy non-RoHS designation
15
Assembly levelPCBA with application firmware and/or daughterboards
UCVG
Controller mnemonicUCVG controller hardware
H
Technology codeIncludes surface-mount components
1
Assembly variantUCVG H1 hardware variant
A
Compatibility versionBackward-compatibility version A
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VI ↗
IS215UCVGH1A UCVG CONTROLLER

Engineering data at a glance

Click “+” to expand more specifications.

CPU650 MHz
SDRAM128 MB
FLASH128 MB
ETHERNET2 ports
UCVG H1 controller data: 650 MHz processor, 128 MB SDRAM, 128 MB flash and two 10/100 Ethernet ports.
Controller configuration The complete controller reference IS215UCVGH1A identifies the UCVG H1 assembly and revision A. Match the installed application, VME rack and network configuration before replacement.
GENERAL INFORMATION −
BrandGE
Part numberIS215UCVGH1A
Product typeUCVG Controller
ProcessorIntel Ultra Low Voltage Celeron, 650 MHz
SDRAM128 MB
Flash storage128 MB Compact Flash module
NETWORK INTERFACES ＋
Ethernet hardwareTwo RJ-45 ports, 10BaseT/100BaseTX
LAN1 roleUDH connection for toolbox, HMI and peer communication
LAN2 roleSeparate IP subnet for Ethernet Modbus or private EGD
POWER & OPERATING DATA ＋
+5 Vdc supply4 A typical; 5.4 A maximum
+12 Vdc supplyLess than 1 mA typical
−12 Vdc supplyLess than 1 mA typical
Operating systemQNX real-time operating system
Operating temperature0 to 70 °C (32 to 158 °F)
SERIAL COMMUNICATION ＋
Serial ports: COM1 diagnostics: 9600 baud, 8 data bits, no parity, 1 stop bit. COM2 serial Modbus: 9600 or 19200 baud. Both use micro-miniature 9-pin D connectors.
Source: GEH-6421M, Volume II, UCV Controller, pages 13–17: UCVG controller description, interfaces and UCVGH1 specifications.
FAQ

Questions Buyers Ask Most

What does IS215UCVGH1A do in a Mark VI system?＋

IS215UCVGH1A runs the turbine application program as a single-slot VME controller. It exchanges process data through the VCMI communication board and uses QNX for real-time execution within the configured Mark VI control system.

Which processor and memory are used by IS215UCVGH1A?＋

IS215UCVGH1A uses an Intel Ultra Low Voltage Celeron processor at 650 MHz. The UCVG specification lists 128 MB SDRAM and a 128 MB Compact Flash module; these values should not be confused with earlier UCVE hardware.

How are the two Ethernet ports on IS215UCVGH1A used?＋

IS215UCVGH1A provides two RJ-45 10BaseT/100BaseTX ports. LAN1 connects to the Unit Data Highway for configuration and system communication; LAN2 uses a separate logical IP subnet for Ethernet Modbus or private EGD networking.

What supply loading is specified for IS215UCVGH1A?＋

IS215UCVGH1A has a documented UCVGH1 load of 4 A typical and 5.4 A maximum on the +5 Vdc rail. Each +12 Vdc and −12 Vdc rail draws less than 1 mA typically.

What serial interfaces are available on IS215UCVGH1A?＋

IS215UCVGH1A has two micro-miniature 9-pin D serial connectors. COM1 is reserved for diagnostics at 9600 baud, while COM2 supports serial Modbus at 9600 or 19200 baud, according to the UCVG controller specification.

Other Available Revisions for the IS215UCVGH1A＋

No other exact revision was confirmed as an interchangeable replacement for IS215UCVGH1A. Ask Frida to check the complete controller reference, application configuration and installed Mark VI hardware before selecting another revision.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS215UCVGH1A

Official manufacturer-manual PDF status for GE IS215UCVGH1A.

Official datasheet status

A direct GE-hosted instruction-manual PDF covering IS215UCVGH1A was not confirmed in the public manufacturer library. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEH-6421M, Volume II, UCV Controller, pages 13–17: UCVG controller description, interfaces and UCVGH1 specifications.

GE MARK VI CONTROLLER RELATIONSHIP

How IS215UCVGH1A Fits Mark VI Control

GE is the manufacturer brand; GE Mark VI is the product family; and IS215UCVGH1A is the single-slot UCVG controller for turbine application execution.

GE · BRAND
GE Mark VIUCVG Controller
SYSTEM ROLE

UCVG Controller

Executes the configured turbine application using a QNX real-time operating system and exchanges process data through the VME control module.

MODULE / CONFIGURATION

650 MHz · 128 MB SDRAM

The UCVG hardware also provides 128 MB flash storage and two RJ-45 10BaseT/100BaseTX Ethernet ports.

NETWORK ROLE

IS215UCVGH1A · UCVG Controller

LAN1 connects to the UDH; LAN2 operates on a separate logical subnet for Ethernet Modbus or private EGD communication.

System relationship: the UCVG controller runs application software, while the VCMI communication board transfers process data between the controller and the Mark VI I/O boards over the VME bus.
APPLICATION AREAS

Application map for IS215UCVGH1A

Turbine Application ControlRun the configured gas or steam turbine control program
Process I/O ExchangeExchange process data through VCMI and the VME bus
MARK VI UCVG CONTROL IS215UCVGH1A IS215UCVGH1A · UCVG Controller
UDH CommunicationConnect engineering and operator communication through LAN1
DCS CommunicationUse the configured Ethernet or serial Modbus interface for communication with external control equipment.
