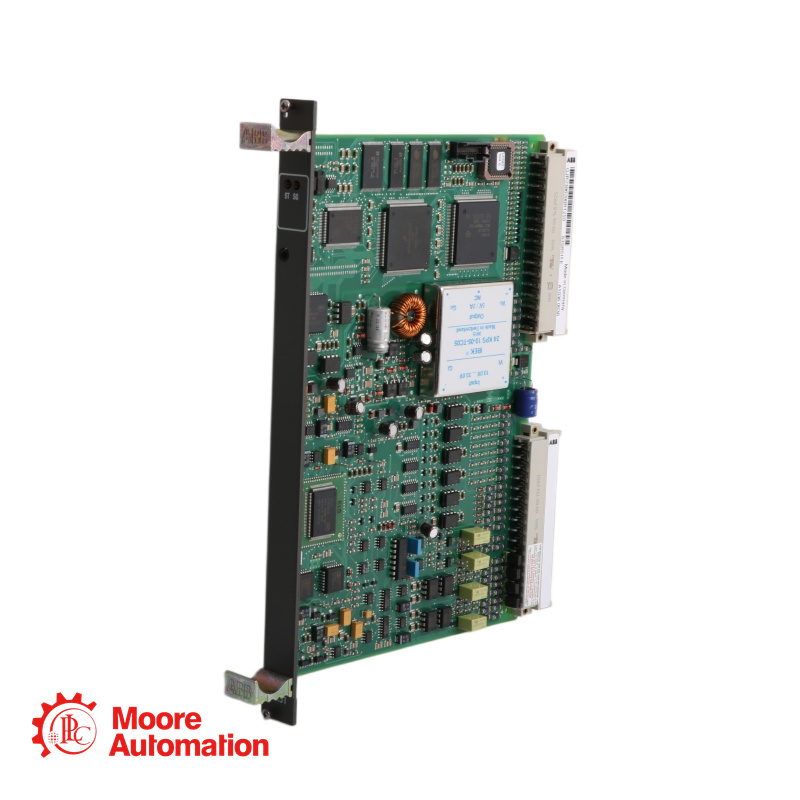

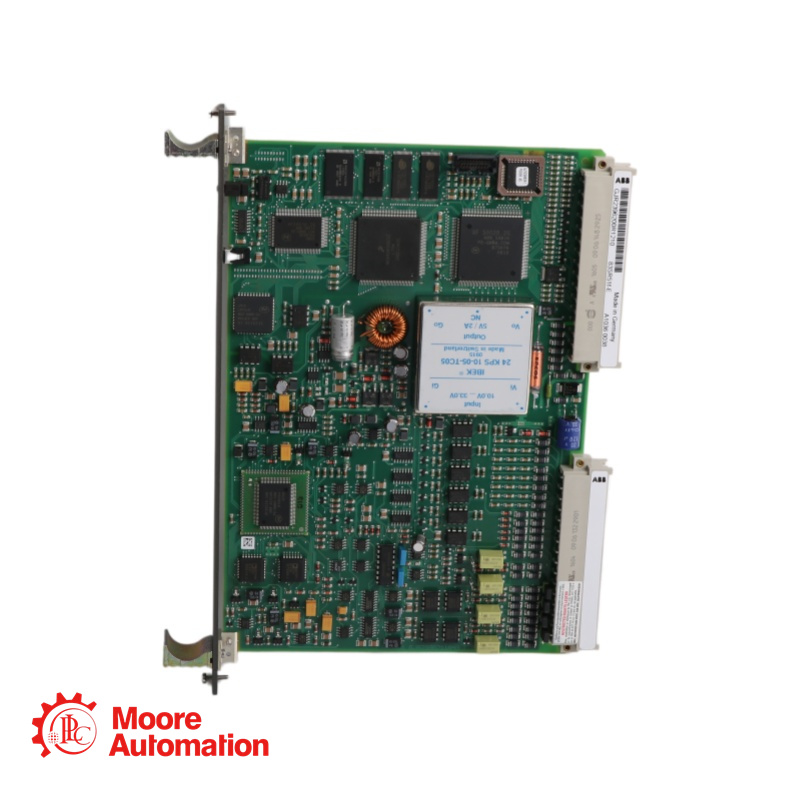

GJR2396200R1210 83SR51F-E Control Module - ABB

Parameter

Specification

Manufacturer

ABB

Model Number

83SR51F-E

Order Code / Part No.

GJR2396200R1210

Product Type

Multi-Channel Binary & Analog Control Module

System Compatibility

Procontrol P14 Series

I/O Configuration

2 channels for binary and analog control

Digital Inputs (DI)

4 per channel

Digital Outputs (DO)

1 per channel

Analog Inputs (AI)

2 per channel

Analog Outputs (AO)

1 per channel

Total I/O Count

8 DI, 2 DO, 4 AI, 2 AO

Actuator Compatibility

Electrohydraulic, Electropneumatic, Electric motor-driven actuators

Communication Protocol

MODBUS, CANopen, RS485

Protection Class

IP54 (Dust & Splash Resistant)

Efficiency

Up to 98%

What types of actuators are compatible with the ABB 83SR51f-E?

The module is engineered for three actuator categories: electrohydraulic actuators (for heavy-duty positioning), electropneumatic actuators (for flow and pressure regulation), and electric motor-driven actuators (for motorized valves and dampers). This versatility makes it suitable for applications ranging from hydraulic presses to HVAC damper control.

How many I/O points does the 83SR51f-E support?

The module features 2 independent channels. Each channel provides 4 digital inputs (DI), 1 digital output (DO), 2 analog inputs (AI), and 1 analog output (AO) . This totals 8 DI, 2 DO, 4 AI, and 2 AO per module, enabling comprehensive control of multiple actuators from a single unit.

Can this module be used to replace an existing GJR2396200R1210?

Yes. The 83SR51f-E is the functional equivalent of the GJR2396200R1210 order code. It is a direct drop-in replacement for Procontrol P14 systems, maintaining identical mounting dimensions, wiring schematics, and electrical specifications.

What communication protocols does the module support for integration with other parts?

The module supports MODBUS RTU/TCP, CANopen, and RS485. This allows seamless integration with major platforms including Siemens SIMATIC, and Schneider Electric Modicon series, making it ideal for mixed-vendor automation environments.

What are the typical applications for this control module?

Valve Positioning: Control of electrohydraulic and electric motor-driven valve actuators in oil & gas and chemical processing.
Pump & Flow Control: Integration with electropneumatic actuators for precise flow regulation in water treatment.
Automated Assembly: Coordinated control of pneumatic cylinders and electric drives in manufacturing lines.
HVAC Systems: Damper and valve actuation for building automation systems.
