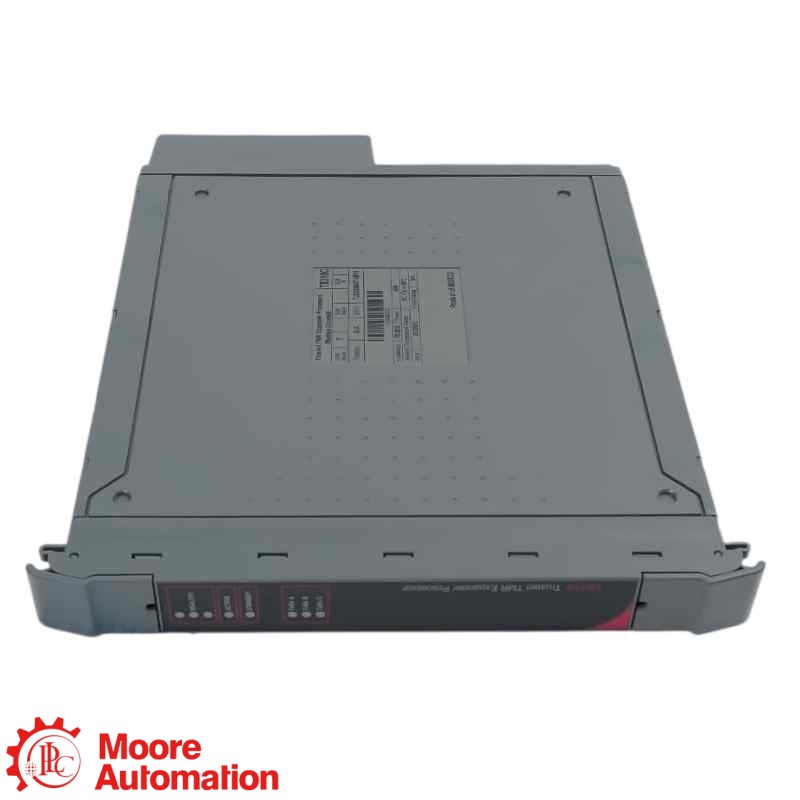

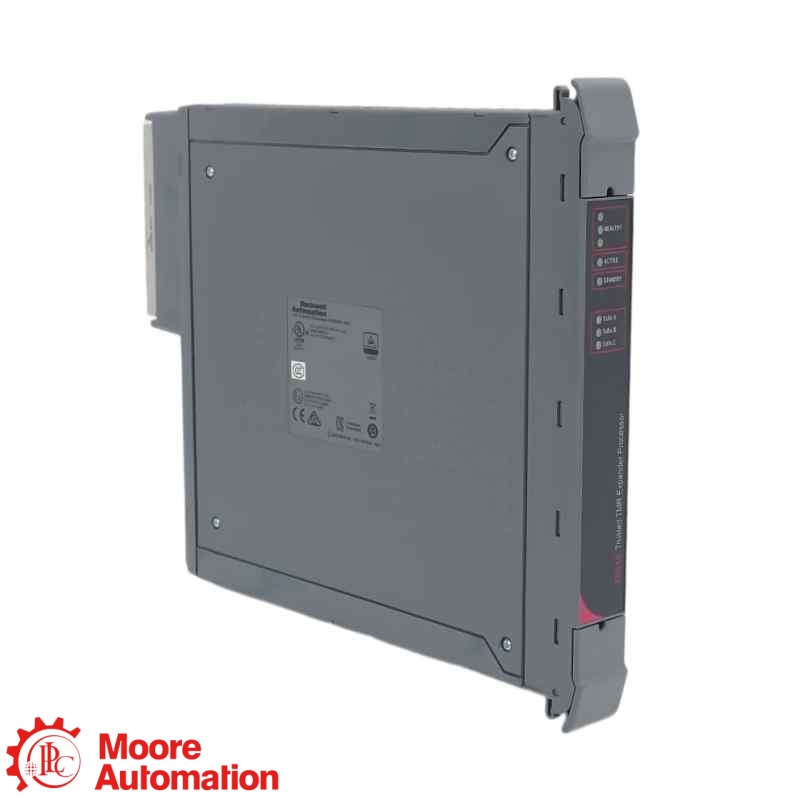

ICS Triplex T8310 Trusted TMR Expander Processor
ICS Triplex T8310 Trusted TMR Expander Processor
ICS Triplex T8310 Trusted TMR Expander Processor

ICS Triplex T8310 Trusted TMR Expander Processor

ICS TRIPLEX TRUSTED SYSTEM · TMR EXPANDER PROCESSOR

T8310

The T8310 is a Trusted TMR Expander Processor that links the triplicated Expander Bus to the Inter-Module Bus in a Trusted Expander Chassis.

PRODUCT TYPETRUSTED TMR EXPANDER PROCESSOR
PLATFORMTrusted Expander System
CONFIGURATION20 Vdc to 32 Vdc
APPLICATIONTMR I/O Expansion
MANUFACTURERICS Triplex / Rockwell Automation
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ICS Triplex ● TRUSTED TMR EXPANDER PROCESSOR
ICS TRIPLEX TRUSTED SYSTEM

T8310

TRUSTED TMR EXPANDER PROCESSOR

TRUSTED SYSTEM · triplicated Expander Bus · T8300 chassis

MODULE ROLE
T8310 is a fault-tolerant TMR Expander Processor. It communicates with the TMR Processor through the triplicated Expander Bus and with I/O modules through the chassis IMB.
CONFIGURATION NOTE
For T8310, confirm the T8300 Expander Chassis, processor-slot position, companion processor arrangement and TC-301 or T8314 link configuration before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Rockwell Automation PD-T8310 ↗
T8310 TRUSTED TMR EXPANDER PROCESSOR

Engineering data at a glance

Click “+” to expand more specifications.

MODELT8310
PLATFORMTrusted Expander System
CONFIGURATION20 Vdc to 32 Vdc
APPLICATIONLocal Expander Processing
Rockwell Automation Publication PD-T8310 identifies T8310 as the Trusted TMR Expander Processor for a Trusted Expander Chassis.
Official product verification Verify the complete model T8310, T8300 processor-slot position, companion processor arrangement and local or remote expander cabling before ordering.
GENERAL INFORMATION −
BrandICS Triplex / Rockwell Automation
Part numberT8310
Product typeTrusted TMR Expander Processor
Product familyTrusted Expander System
System roleTMR communications processor for a Trusted Expander Chassis
PlatformTrusted Expander System
MODULE CONFIGURATION ＋
ArchitectureTriple Modular Redundant, lock-step
Module locationT8300 Expander Chassis processor slot
Compatibility checkConfirm T8300 chassis and TC-301 or TC-303 cabling
POWER & COMMUNICATIONS ＋
Backplane supply20 Vdc to 32 Vdc
Power dissipation45 W backplane supply
Local copper distance30 m using TC-301
Remote fibre distance10 km using T8314
Dimensions / weight266 x 31 x 303 mm / 1.33 kg
DOCUMENTATION & ORDER CHECK ＋
Reference: Verify the complete model T8310, T8300 processor-slot position, companion processor arrangement and local or remote expander cabling before ordering.
Source: Rockwell Automation Publication PD-T8310, Issue 15 identifies T8310 as the Trusted TMR Expander Processor variant.
FAQ

Questions Buyers Ask Most

What is T8310 used for?＋

T8310 is a fault-tolerant TMR Expander Processor that links the triplicated Expander Bus to the Inter-Module Bus in a T8300 Trusted Expander Chassis.

Where must T8310 be installed?＋

T8310 installs only in a designated Expander Processor slot of the T8300 Trusted Expander Chassis.

Does T8310 support local and remote expander links?＋

T8310 supports a 30 m TC-301 copper link or a 10 km remote link using T8314 Fibre TX/RX Units.

Which chassis is specified for T8310?＋

T8310 is specified for the T8300 Trusted Expander Chassis and must not be installed in other module locations.

What should be checked before replacing T8310?＋

For T8310, confirm T8300 chassis compatibility, processor-slot position, companion module arrangement, cable type and local or remote link distance.

What official manual covers T8310?＋

T8310 is covered by Rockwell Automation Publication PD-T8310, Issue 15, Trusted Expander System.

What information should be supplied when ordering T8310?＋

When ordering T8310, provide the exact catalog number, quantity, T8300 chassis details, companion processor arrangement, cable type and installed-system configuration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
T8310

Official Rockwell Automation documentation for Trusted T8310.

Trusted Expander System

Rockwell Automation Publication PD-T8310, Issue 15 describes T8310 as the Trusted TMR Expander Processor that links the triplicated Expander Bus to the chassis Inter-Module Bus.

OFFICIAL MANUAL ↗

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page follow Rockwell Automation Publication PD-T8310, Issue 15 for the Trusted TMR Expander Processor.

TRUSTED TMR EXPANDER PROCESSOR RELATIONSHIP

How T8310 Fits into the Trusted Expander System

Rockwell Automation publishes the Trusted product documentation; T8310 is the fault-tolerant TMR Expander Processor; and T8310 provides the TMR processing link between the Expander Bus and chassis IMB.

ICS Triplex · BRAND
Trusted Expander Systemtrusted TMR expander processor
SYSTEM ROLE

trusted TMR expander processor

Supports local Expander Bus links up to 30 m using TC-301 cable and remote links up to 10 km using T8314 fibre units.

NETWORK / POWER

20 to 32 Vdc · 30 m copper / 10 km fibre

Confirm the T8300 processor slot, companion processor arrangement and TC-301 or T8314 link.

ORDER DATA

T8310 · Trusted TMR Expander Processor

Do not substitute another processor without checking the T8300 slot, companion module, power and local or remote Expander Bus link.

System relationship: verify the exact processor catalog number, T8300 chassis, slot position, companion module and expander cabling.
APPLICATION AREAS

Application map for T8310

Local Expander Processing45 W backplane supply
Remote Expander ProcessingUse T8314 Fibre TX/RX Units and TC-303 cabling for remote chassis
APPLICATION CENTER T8310 T8310 · Trusted TMR Expander Processor
T8300 Chassis IntegrationInstall only in a designated Expander Processor slot
Replacement VerificationCheck the exact T8310 model, slot position, companion processor and link cabling before replacement.
