Material number:
PCS 950 PG960.202.2150503

Description:

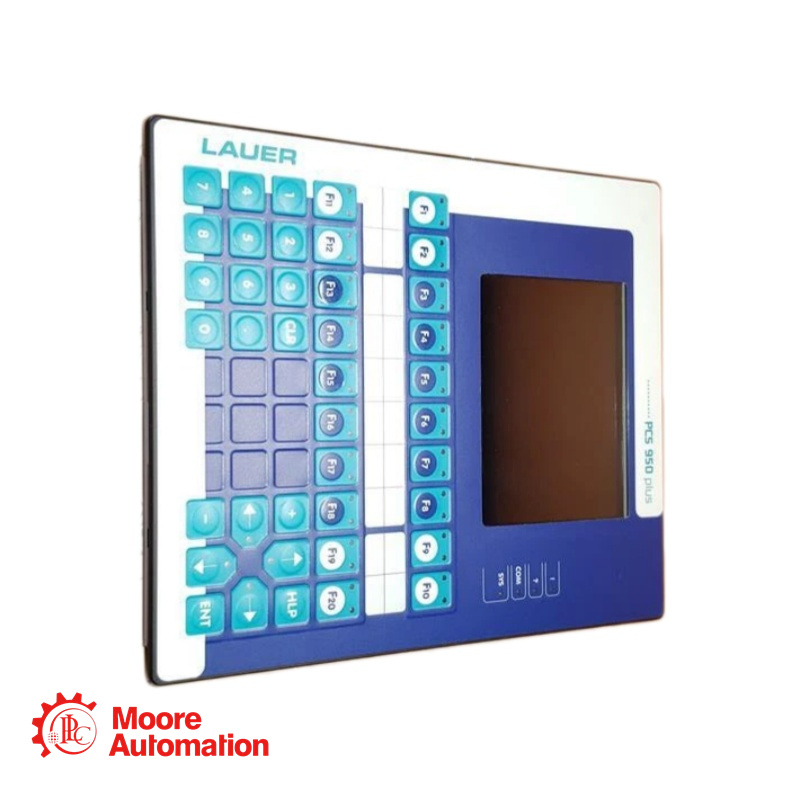

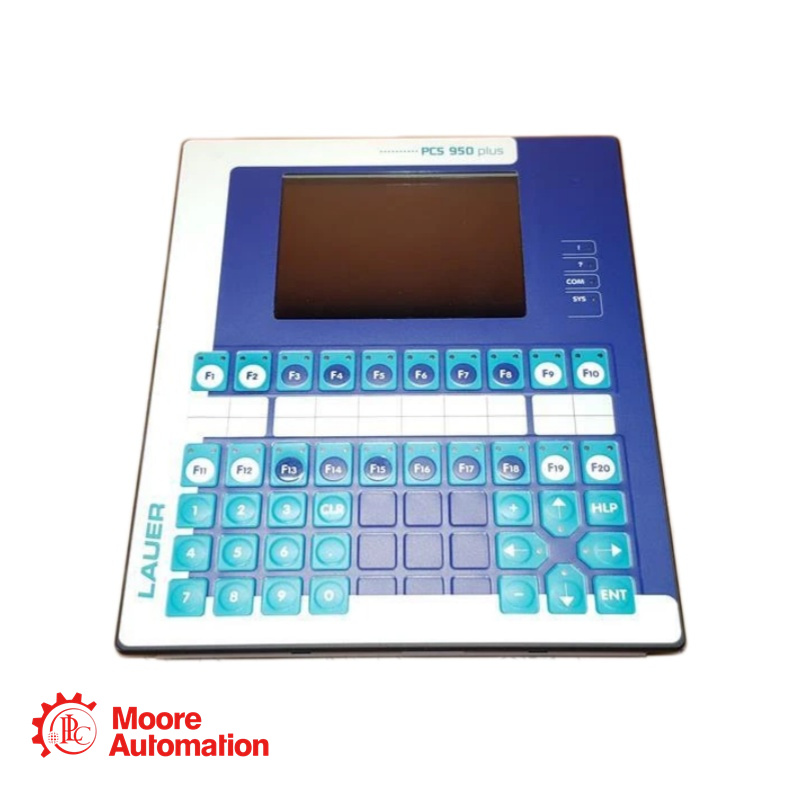

Operating console for the PCS 950 / PCS 950c / PCS 950e
Graphic LCD display, 320 × 240 pixels, 24 lines × 40 characters
20 freely assignable function keys with dual (green/yellow) LEDs
Numeric keypad for preset values, 8 control keys with cursor LEDs
Intelligent soft-key actions, logging, statistics, reporting, RecipeManager
Operating & monitoring in color (PCS 950c)
Fan-free, robust design for industrial environments

The PCS 950 is a programmable operating console offering a wide range of ready-to-use operating functions. It supports up to 1024 message pages with 3 priority levels, 255 recipe blocks with 255 forms each, and 8 timers with 8 daily repeating ON/OFF switching points. Communication with various is possible via RS232, RS422, RS485, or TTY interfaces.

Technical Data:

Display: Graphic LCD, 320 × 240 pixels, CFL backlight, 24 lines × 40 characters (5 × 8 matrix)
Function keys: F1 … F20, each with green and yellow LED (OFF, ON, FLASHING, INVERSE FLASHING)
Additional keys: Numeric keypad (0…9), control keys (+, -, arrows, CLR, ENTER, HELP)
External dimensions (W × H): 224 mm × 270 mm
Mounting depth: 65 mm (without connector)
Front panel cutout: 204 mm × 259 mm
Operating voltage: +24 VDC ±20%, polarity reversal protected
Current consumption: typ. 800 mA @ 24 VDC, max. 1.0 A @ 19 VDC (+100 mA with cassette)
Data storage: Flash EEPROM, min. 10,000 write cycles; battery-backed RAM (2 × 128 kByte)
Additional cassette slot: supports PCS 802, 803, 804, 805, 806, 807, 808, 891

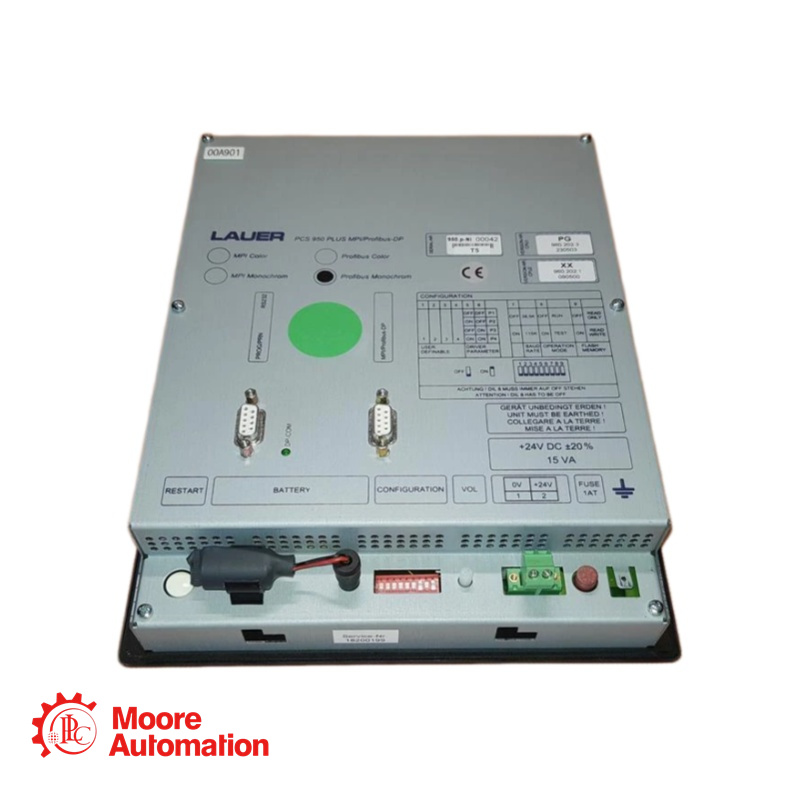

Interfaces: COM (RS232/TTY or RS485/RS422), PRN (RS232/TTY), configuration cable PCS 733
Protection class: front IP 65, rear IP 20 (IEC 529)
Humidity: 0…75%, min. 48 hours continuous test
Vibration resistance: 3 g @ 50 Hz (5 hours), 3 g @ 100 Hz (1 hour) in all directions
Temperature: operating 0…+50 °C, storage -25…+70 °C
Front foil: polyester
Pushbuttons: mechanical with tactile touch
Fuse: 1.25 A, slow-blow, includes 1 spare fuse
Alarm output: relay contact (NO), 24 V / 0.5 A max.

Accessories:

PCS 802 – Memory cassette 64 kByte Flash-EEPROM
PCS 803 – Memory cassette 32 kByte + 6 analog outputs + 6 digital inputs
PCS 804 – Interbus-S connection
PCS 805 – AEG bit bus cassette
PCS 806 – Memory cassette 128 kByte Flash-EEPROM
PCS 807 – Profibus-DP connection
PCS 808 – Arnet connection
PCS 891 – Additional keyboard with 28 keys and 28 LEDs
PCS 733 – Configuration cable (PC to PCS)
