Marca :
MOTOROLANúmero da peça :
MVME162P-244LPeso :
1.36kgDimensão :
27.4x21.3x6cmPaís de origem :
USACódigo SH :
8537101190Descrição :

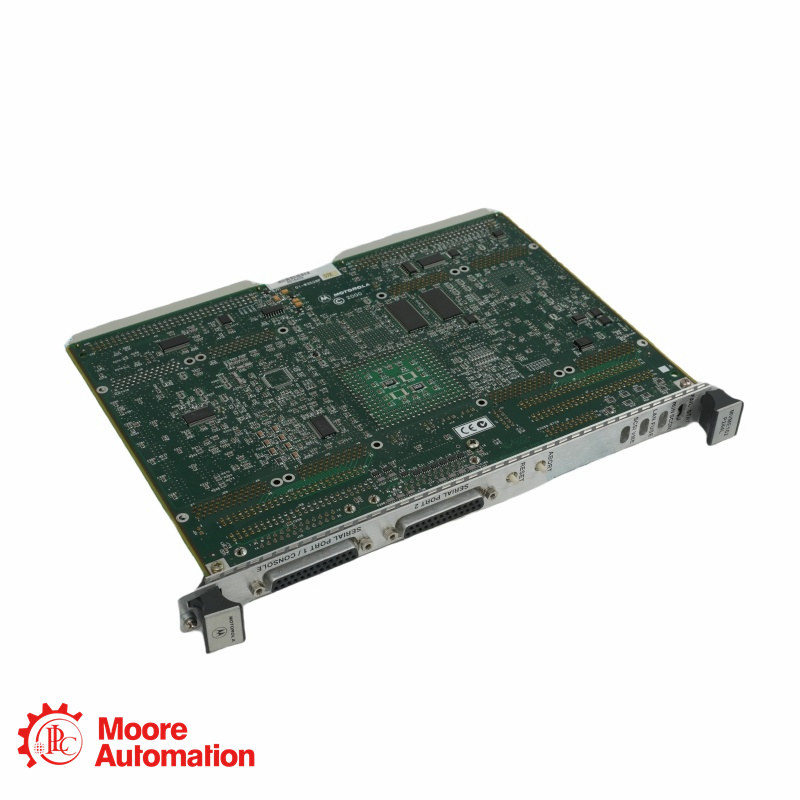

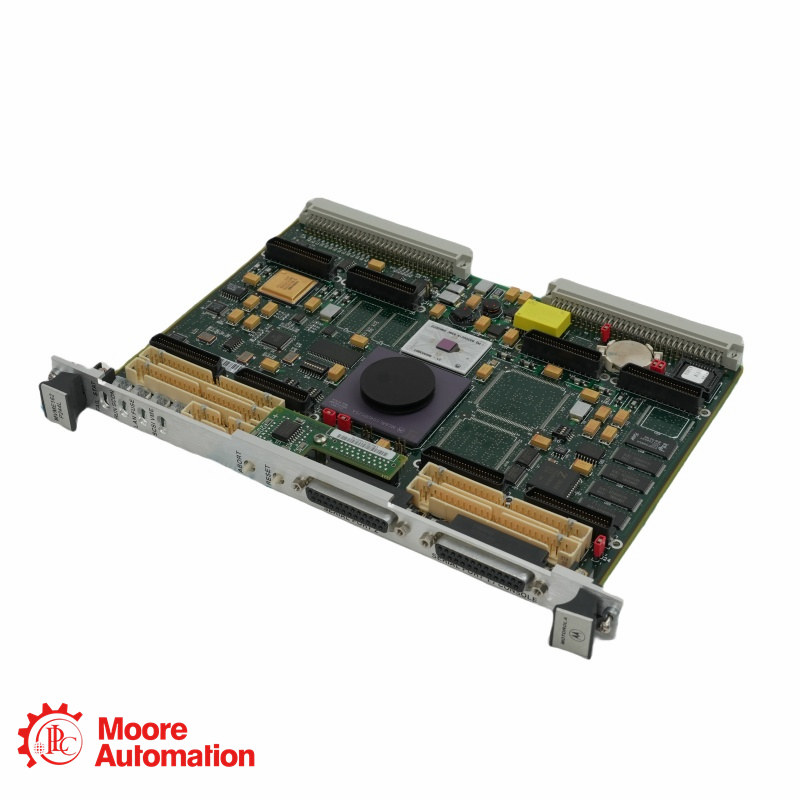

VME BOARD
Contact ：Chloe
Our Company
|
Moore Automation is a high-tech company specializing in the sales of industrial automation components dedicated to enhancing the world's supply of automation components. No matter where your customers are, no matter how rare moles they need, accessories are available to customers all over the world, allowing them to connect closely with their products. |
Product Specifications
|
Power requirements (with EPROM; without IPs)
+5Vdc (±5%), 2.0A typical, 2.5A maximum
+12 Vdc (± 5%), 100 mA maximum
–12 Vdc (± 5%), 100 mA maximum
Operating temperature 0°C to 55°C exit air with forced-air cooling (refer also to Cooling Requirements and Special Considerations for Elevated-Temperature Operation)
Storage temperature –40°C to +85° C
Relative humidity 5% to 90% (noncondensing)
Vibration (operating) 2 Gs RMS, 20Hz-2000Hz random
Altitude (operating) 5000 meters (16,405 feet)
|
Product Information
|
MVME162P4 VME Embedded Controller Installation and Use provides
instructions for hardware preparation and installation; a board-level
hardware overview; and firmware-related general information and startup
instructions for the MVME162P-244 and -344 series of embedded
controllers, known collectively as the ‘‘MVME162P4’’ because they are
equipped with the “Petra” chip and accommodate up to four IP modules.
|
