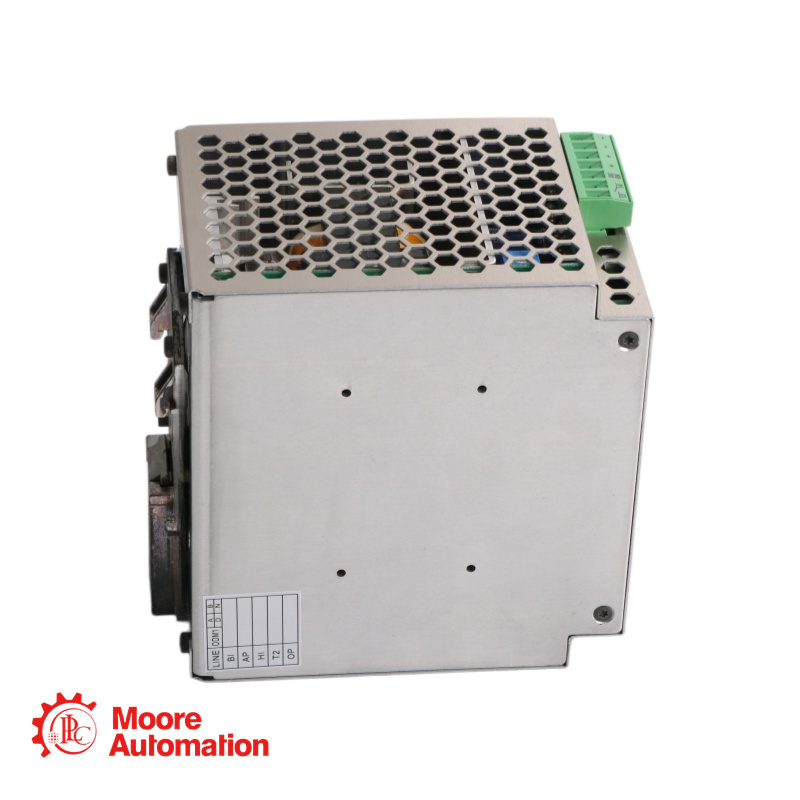

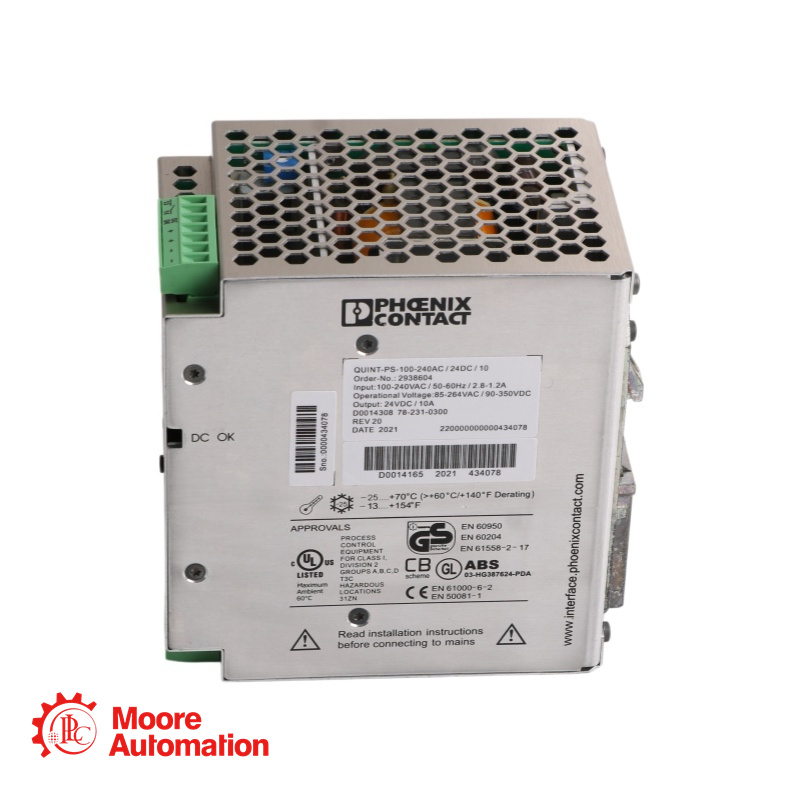

Phoenix QUINT-PS100-240AC/24DC/10 2938604 Power Supply Unit

Inquire for Special Pricing

To Know QUINT-PS100-240AC/24DC/10 2938604

Nominal input voltage range:100 V AC ... 240 V AC
Input voltage range:85 V AC ... 264 V AC, 90 V DC ... 350 V DC
Input voltage range:AC 85 V AC ... 264 V AC
Input voltage range:DC 90 V DC ... 350 V DC
AC frequency range:45 Hz ... 65 Hz
Nominal output current (IN):10 A (up to 60 °C)
Feedback voltage resistance:35 V DC
Output power:240 W
Maximum switching voltage:≤ 24 V
Insulation voltage input/output:4 kV AC (type test)
Insulation voltage output / PE:500 V DC (routine test)

QUINT-PS100-240AC/24DC/10 2938604 power supply units for plant and special engineering reliably start heavy loads with high inrush currents using the POWER BOOST. Thanks to the wide-range input and extensive package of approvals, they can be used in all sectors of industry the world over. The switching output or floating relay contact are used for remote diagnostics.

Features:

▻Provides a static power reserve that allows the unit to deliver up to 15 A (1.5 times the nominal current) permanently to start heavy loads with high inrush currents.
▻Operates with an efficiency of > 91%, minimizing power dissipation and heat generation within the control cabinet.
▻Supports a flexible input voltage range from 85 V AC to 264 V AC or 90 V DC to 350 V DC, making it suitable for worldwide use.
▻Includes capacitors that ensure power failure bypass for more than 50 ms at full load, protecting against brief voltage dips.
