Marca :
PLCNúmero da peça :
1771-OAPeso :
0.68kgDimensão :
2.8x15.2x25.8cmPaís de origem :
USACódigo SH :
8537101190Descrição :

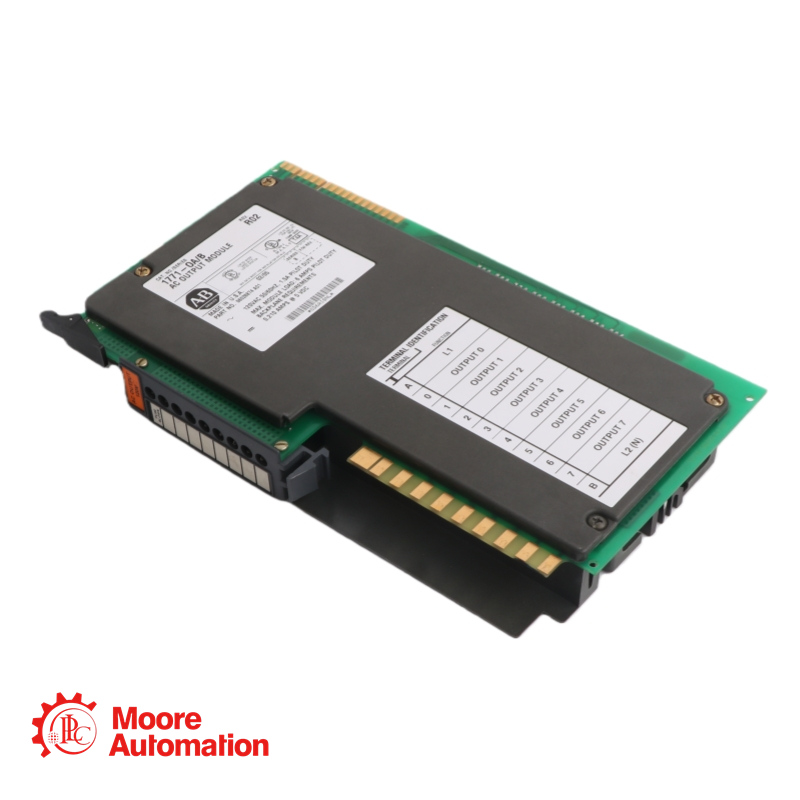

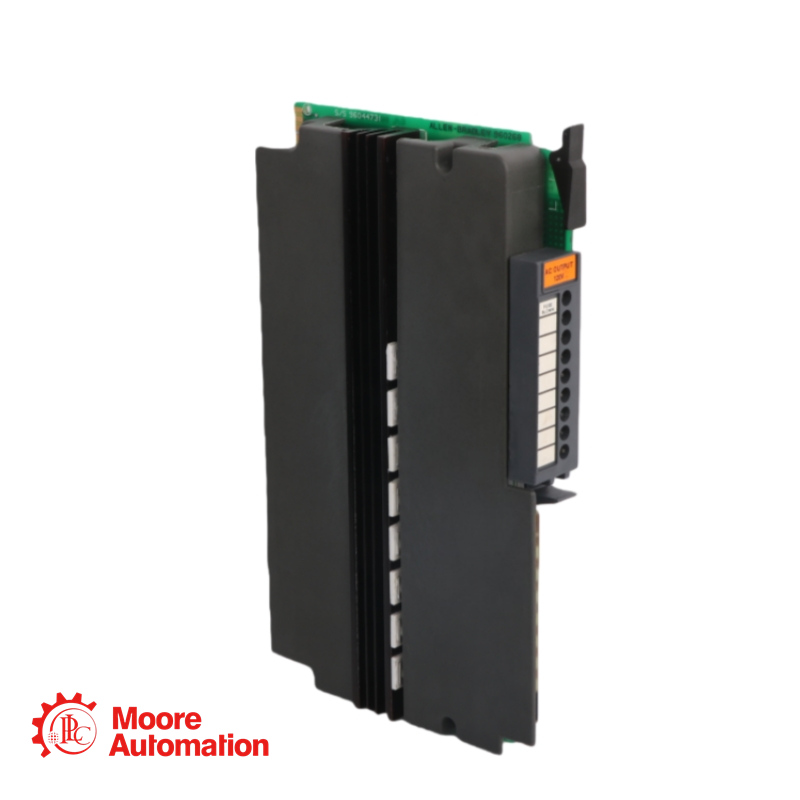

Point Digital Output Module
|
Welcome to Contact |
|
Sales Manager: Frida |
|
Specification |
|
Catalog Number: 1771-OA/B
Module Type: AC Output Module Outputs per Module: 8 Module Location: 1771 I/O chassis Output Voltage Range: 92 to 138V AC Output Voltage Frequency: 47 - 63Hz Output Current Rating (Maximum per output): 1.5A Output Current Rating (Maximum per module): 6A (total, not to be exceeded) Surge Current (Maximum): 4A per output for 8.3ms at 120V AC, repeatable every 1 second Load Current (Minimum): 50mA per output at 120V AC, 60Hz On-State Voltage Drop: 2V at 100mA Off-State Leakage Current (Maximum): 5mA per output at 120V AC Signal Delay (Off to On): 1.0ms Signal Delay (On to Off): 8.3ms at 60Hz Power Dissipation: 10.7 Watts (maximum), 1.1 Watts (minimum) Thermal Dissipation: 36.6 BTU/hr (maximum), 3.4 BTU/hr (minimum) Backplane Current: 210mA at 5V DC ±5% Operational Temperature: 0° to 60°C (32° to 140°F) Storage Temperature: -40° to 85°C (-40° to 185°F) Relative Humidity: 5 to 95% (without condensation) Wire Size (Conductors): 14 gauge (2mm²) stranded maximum Insulation Thickness (Maximum): 3/64 inch (1.2mm) Conductor Category: 1 Keying Positions: Between 4 and 6, and between 12 and 14 Wiring Arm Screw Torque: 7-9 inch-pounds Installation Instructions: Publication 1771-2.5 |
|
Best Service for Our Clients |
|
Products: 100% full New! & Original! |
|
Package: Original packing with cartons. |
|
Payment Term: T/T |
|
Warranty:12 month |
|
Shipment:DHL,UPS,TNT,CHIRLINE,FEDEX |
|
Delivery Time: Shipped in 3 days after payment. |
|
MOQ:1 |
|
