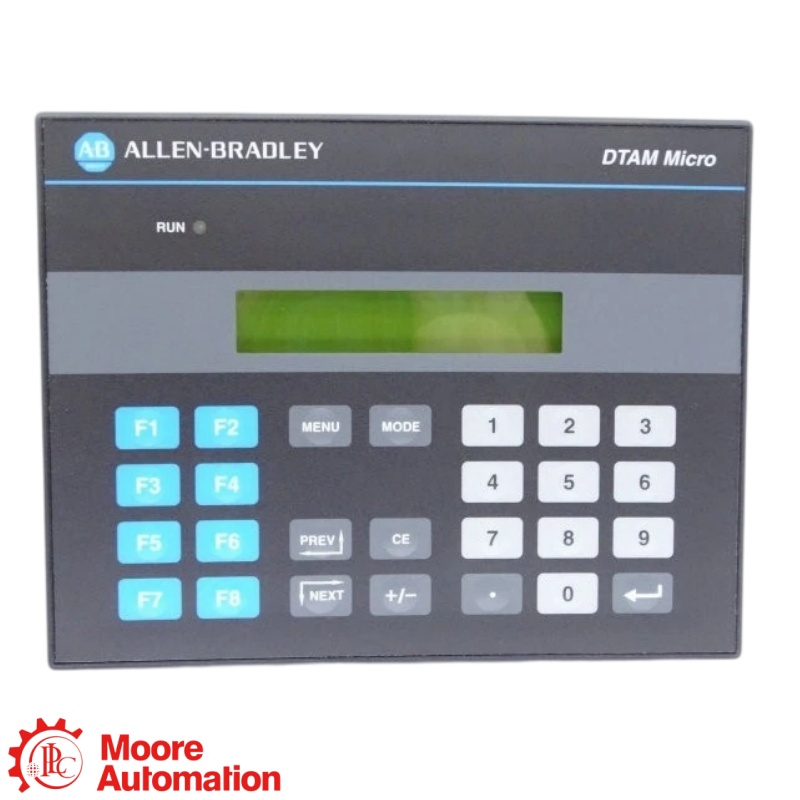

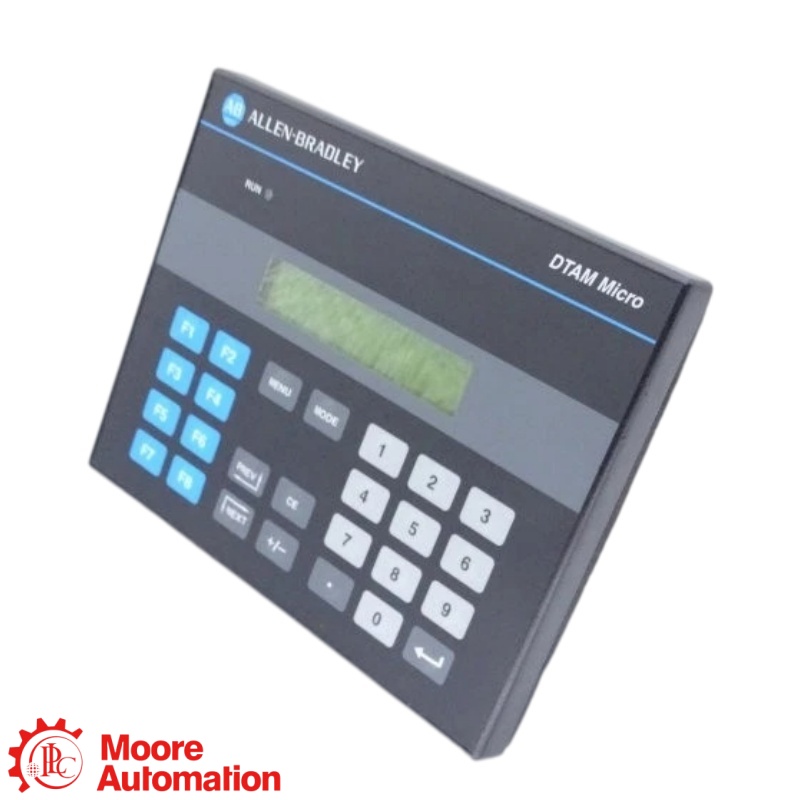

The 2707-M485P3 is a DTAM Micro operator interface with a two-line, 20-character LCD and an RS-485 communication port for a compatible industrial controller network.
Marca :
PLCNúmero da peça :
2707-M485P3Peso :
1.0 lb (0.45 kg) maximumDimensão :
3.9 × 5.4 × 1.8 in bodyPaís de origem :
USACódigo SH :
DTAM Micro Operator InterfaceDescrição :
2707-M485P3 is a DTAM Micro operator interface with a two-line, 20-character LCD and an RS-485 communication port for a compatible industrial controller network.Click “+” to expand more specifications.
Source: Official publication 2707-UM002 covers 2707-M485P3. Verify the nameplate, saved application, wiring and host configuration before replacement.
The 2707-M485P3 is a DTAM Micro operator interface with a two-line, 20-character LCD and an RS-485 communication port for a compatible industrial controller network.
2707-M485P3 uses RS-485, so it is not a direct communication substitute for an RS-232 terminal unless the host port, cable, addressing and application configuration are changed and verified.
2707-M485P3 requires 18–30 V DC, 200 mA maximum. The installed supply voltage, grounding and connector wiring must be verified before energizing the replacement unit.
2707-M485P3 uses RS-485 network interface. The host protocol, port type, addressing, cable and maximum link distance must match the saved controller application.
2707-M485P3 replacement requires confirmation of the full nameplate, hardware series, panel cutout or mounting, power input, serial cable and a recoverable copy of the operator application.
2707-M485P3 inquiries should include clear nameplate photographs, quantity, hardware series, power code, installed controller, communication cable, panel dimensions and the application backup status.
Official manufacturer-reference information for the 2707-M485P3 DTAM Micro Operator Interface.
Official publication 2707-UM002 covers configuration, installation, communication and operating requirements for this catalog variant.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official publication 2707-UM002. No third-party product sources were used.
PLC is the product-family reference. 2707-M485P3 must be matched to the complete nameplate, power code, display type, serial interface, panel cutout and saved application.
Record the installed controller model, host protocol, device address, panel position and adjacent equipment.
Photograph the host serial port, printer port, cable, connector and wiring before disconnecting the unit.
Verify the nameplate supply and grounding. The P3 unit uses an 18–30 V DC input.
Do not select a substitute until the hardware series, cutout, supply, cable and recoverable application backup are confirmed. Confirm the RS-485 cable, termination and link distance up to 4000 ft.
Match 2707-M485P3 and its complete suffix to the full nameplate and installed-system documentation.
Create a recoverable copy of the operator application and record the communication parameters before removal.
Record the host protocol, address, serial cable, power input and panel cutout used by the installed application.
Confirm display, memory, ports, power code, mounting and application compatibility before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
