The 2711P-T15C22D9PK is a PanelView Plus 7 Performance terminal with a 15-inch analog resistive-touch TFT color display, 1024 x 768 XGA resolution, dual 10/100Base-T Ethernet ports and 24 V DC input.
Marca :
PLCNúmero da peça :
2711P-T15C22D9PKDimensão :
318 mm x 381 mm x 69.6 mm (H x W x D); 3.69 kg approx.Código SH :
PanelView Plus 7 Performance TerminalDescrição :
The 2711P-T15C22D9PK is a 15-inch analog resistive-touch PanelView Plus 7 Performance terminal with 1024 x 768 XGA resolution, dual 10/100Base-T Ethernet ports, 24 V DC input, Windows 10 IoT Core and conformal coating.Click “+” to expand more specifications.
Source: Official publication 2711P-TD009 lists 2711P-T15C22D9PK and supports the 15-inch XGA display, touch input, 24 V DC power, dual Ethernet, dimensions, cutout and environmental data shown here.
2711P-T15C22D9PK is a PanelView Plus 7 Performance terminal for operator visualization and touch control in industrial automation systems.
2711P-T15C22D9PK uses a 15-inch color TFT LCD with 1024 x 768 XGA resolution and analog resistive touch input.
2711P-T15C22D9PK uses a 24 V DC nominal supply and two 10/100Base-T Ethernet ports supporting DLR, linear or star topologies.
2711P-T15C22D9PK has a 304 x 228 mm viewing area and requires a 290 x 353 mm panel cutout.
2711P-T15C22D9PK is panel mounted and is specified for operation from 0 to 55 °C.

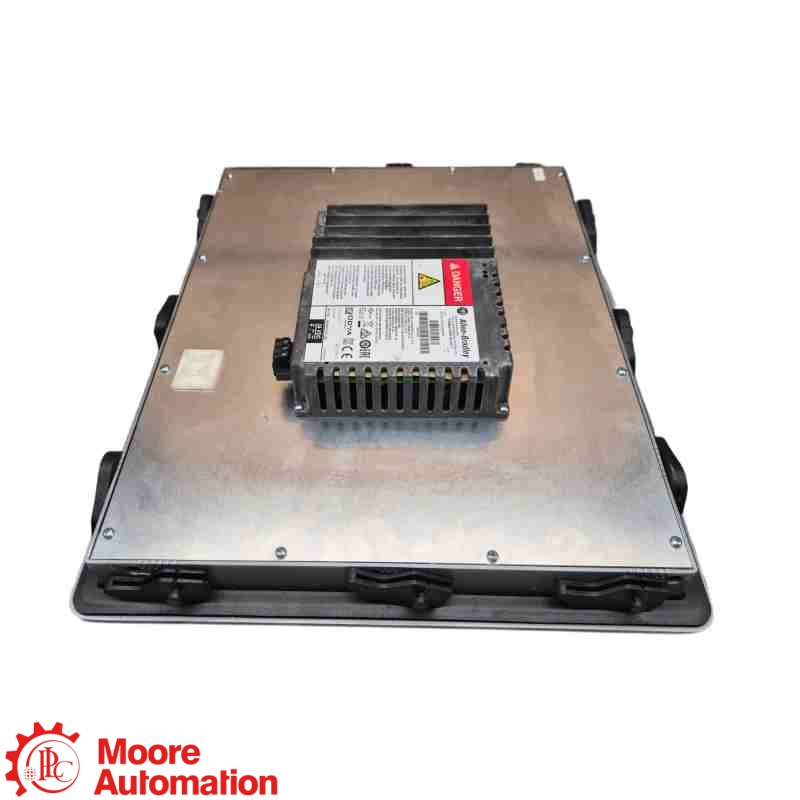

2711P-T15C22D9PK measures 318 mm high, 381 mm wide and 69.6 mm overall depth, with an approximate weight of 3.69 kg.
For 2711P-T15C22D9PK, provide the complete catalog number, quantity, panel cutout, power supply, Ethernet topology, connected controller and application requirements.
Official manufacturer-reference information for the 2711P-T15C22D9PK PanelView Plus 7 Performance terminal.
Official publication 2711P-TD009 lists 2711P-T15C22D9PK and documents its 15-inch XGA display, 24 V DC power, dual Ethernet, dimensions, cutout and environmental specifications.
OPEN OFFICIAL TECHNICAL DATA PDFSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this product page are limited to official publication 2711P-TD009 and the exact official product record for 2711P-T15C22D9PK.
2711P identifies the PanelView Plus 7 Performance terminal family; T identifies touch input; 15C identifies the 15-inch TFT color display; 22 identifies the dual-Ethernet configuration; D identifies 24 V DC power; and 9PK identifies the Windows 10 IoT Performance conformal-coated variant.
PanelView Plus 7 Performance terminal.
Analog resistive touch input.
15-inch color TFT display.
Two 10/100Base-T Ethernet ports supporting DLR, linear or star topologies.
24 V DC nominal input, 18...30 V DC operating range.
Windows 10 IoT Core Performance model with conformal coating.
290 x 353 mm panel cutout and 304 x 228 mm viewing area.
The terminal presents machine status, commands and production information on a 15-inch touch display.
Touch input and dual Ethernet connectivity support operator control along production lines.
The color TFT display supports process status, alarm and diagnostic visualization.
The panel-mounted terminal is used in suitably protected industrial control panels.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
