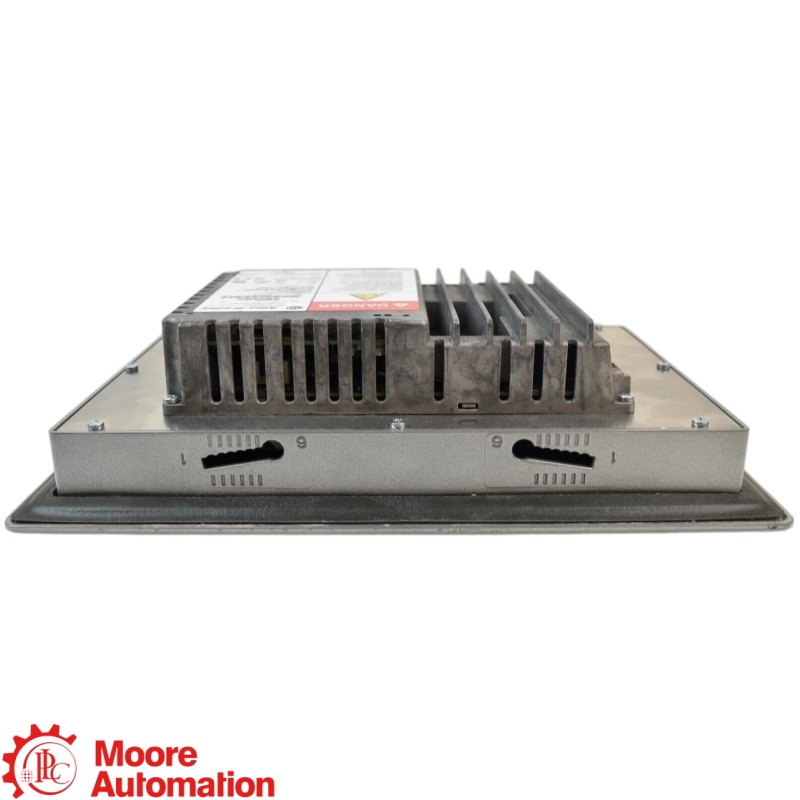

PLC 2715P-T15CD-K 15-inch Operator Terminal
PLC 2715P-T15CD-K 15-inch Operator Terminal
PLC 2715P-T15CD-K 15-inch Operator Terminal

PLC 2715P-T15CD-K 15-inch Operator Terminal

15-INCH OPERATOR TERMINAL

2715P-T15CD-K

The 2715P-T15CD-K is a 15-inch, 4:3 resistive-touch operator terminal with 1024 × 768 XGA resolution, two 10/100Base-T Ethernet ports and 24 V DC input. The K suffix identifies the conformal-coated version.

CATALOG2715P-T15CD-K
RESOLUTION1024 × 768 XGA
ETHERNET2 × 10/100Base-T
POWER24 V DC
BRANDPLC
PRODUCT TYPE15-inch Operator Terminal
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONPhotos and video after inquiry

  • Marca :

    PLC

  • Número da peça :

    2715P-T15CD-K

  • Descrição :

    15-inch Operator Terminal
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION● OFFICIAL OPERATOR TERMINAL DATA
15-INCH OPERATOR TERMINAL

2715P-T15CD-K

15-INCH OPERATOR TERMINAL

2715P FAMILY · 15-INCH XGA TOUCH · DUAL ETHERNET · 24 V DC

PRODUCT ROLE
2715P-T15CD-K is a 15-inch, 4:3 resistive-touch operator terminal with 1024 × 768 XGA resolution, two 10/100Base-T Ethernet ports and 24 V DC input. The K suffix identifies the conformal-coated version.
INSTALLATION CHECK
Confirm the complete 2715P-T15CD-K label, installed chassis or panel, hardware revision, wiring, power and saved application before installation or replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 2715P-T15CD-K reference is structured

2715P
Bulletin identifier2715P product family
T15CD-K
Exact module identifierKeep the complete suffix and sequence when ordering
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

2715P-T15CD-K TECHNICAL DATA ↗
2715P-T15CD-K

Engineering data at a glance

Click “+” to expand the model-specific information.

DISPLAY15-inch touch
RESOLUTION1024 × 768 XGA
ETHERNET2 × 10/100Base-T
POWER24 V DC
Verified configuration

Official manufacturer documentation identifies 2715P-T15CD-K is a 15-inch, 4:3 resistive-touch operator terminal with 1024 × 768 XGA resolution, two 10/100Base-T Ethernet ports and 24 V DC input. The K suffix identifies the conformal-coated version.

General Information −
BrandPLC
Model2715P-T15CD-K
Product type15-inch operator terminal
Display15-inch 4:3 resistive touch
Resolution1024 × 768 XGA
Supply24 V DC; operating range 18–30 V DC
EthernetTwo 10/100Base-T ports
Memory1 GB RAM and 1 GB project storage
Front protectionIP66 and NEMA 4X/12/13 when properly mounted
Mounting cutout290 × 353 mm
Option suffixK conformal-coated version
Display and Electrical Specifications ＋
Display size15 in.
Viewing area304 x 228 mm (12 x 9 in.)
Display resolution1024 x 768 XGA, 4:3
Color depth24-bit (16.7 million colors)
Memory1 GB RAM; 1 GB nonvolatile project storage
Input voltage24V DC nominal (18…30V DC)
Power consumption33 W maximum; 27 W typical
Weight, approximate3.69 kg (8.14 lb)
Environmental Specifications ＋
Operating temperature0…55 °C (32…131 °F)
Nonoperating temperature-25…+70 °C (-13…+158 °F)
Relative humidity5…95% without condensation
Operating altitudeSea level to 2000 m (6562 ft)
Vibration0.012 in. peak-to-peak at 10…57 Hz; 2 g peak at 57…500 Hz
Operating shock15 g at 11 ms
Nonoperating shock30 g at 11 ms
Corrosive atmosphere ratingG3 (ANSI/ISA 71.04.2013); CX (IEC 60721-3-3:2019)
Source: official 2715P technical data publication 2715P-TD001 and the exact manufacturer product page.
FAQ

Questions Buyers Ask Most

What is 2715P-T15CD-K used for?＋

2715P-T15CD-K is a 15-inch industrial operator terminal used to display and control a configured machine or process application through compatible controller and network connections.

What display and resolution does 2715P-T15CD-K provide?＋

2715P-T15CD-K provides a 15-inch 4:3 resistive-touch display with 1024 × 768 XGA resolution. The saved application must be designed for that display format.

Which power supply is required for 2715P-T15CD-K?＋

2715P-T15CD-K requires a nominal 24 V DC supply with an official operating range of 18–30 V DC, and the branch protection, grounding and conductor sizing must match the installation.

What does the K suffix mean on 2715P-T15CD-K ?＋

2715P-T15CD-K uses the K suffix for the conformal-coated version, so the complete suffix and environmental requirement must be retained when ordering a replacement.

Which network connections are available on 2715P-T15CD-K?＋

2715P-T15CD-K provides two 10/100Base-T Ethernet ports. IP settings, device names, controller communication, managed-switch configuration and the saved application must match.

What must be checked before installing 2715P-T15CD-K?＋

2715P-T15CD-K requires a 290 × 353 mm panel cutout, adequate clearance, proper sealing, 24 V DC wiring, grounding, network connections and an application backup.

What information should be supplied when ordering 2715P-T15CD-K?＋

For 2715P-T15CD-K, provide the complete catalog number including K, screen size, power and network details, application-backup status, mounting cutout, quantity and delivery destination.

CONTACT PRODUCT SPECIALIST

Check 2715P-T15CD-K configuration with Frida

Share the exact model, installed hardware, wiring, application record and quantity for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 2715P-T15CD-K

Official technical data for 2715P terminals documents the 15-inch resistive-touch display, XGA resolution, dual Ethernet ports, 24 V DC supply, enclosure ratings and mounting dimensions. 2715P-T15CD-K

2715P-T15CD-K Technical Data

Official technical data for 2715P terminals documents the 15-inch resistive-touch display, XGA resolution, dual Ethernet ports, 24 V DC supply, enclosure ratings and mounting dimensions.

OPEN OFFICIAL TECHNICAL DATA ↗

Contact to Get Support

Send the exact model, quantity, complete label, installed system details and your technical or purchasing question.

Source: official 2715P technical data publication 2715P-TD001 and the exact manufacturer product page.

MODEL IDENTIFICATION

How the 2715P-T15CD-K reference should be verified

2715P-T15CD-K is the complete product reference. Do not install or substitute the product until the exact model, revision, wiring and system compatibility are verified.

PLATFORM / TYPE2715P family · 15-inch operator terminal
→
COMPLETE MODEL2715P-T15CD-K
→
CONFIGURATION / SYSTEM15-inch XGA resistive touch · 24 V DC · conformal coated
Installed System

Record the panel cutout, enclosure rating, controller connection, network topology and saved application.

Signal Evidence

Record both Ethernet ports, IP settings, connected controller, USB use and peripheral connections.

Power Evidence

Confirm the 18–30 V DC supply, branch protection, grounding and conductor size.

Replacement Limit

Do not install or substitute the product until the exact model, revision, wiring and system compatibility are verified.

VERIFICATION EVIDENCE

Evidence needed to verify 2715P-T15CD-K correctly

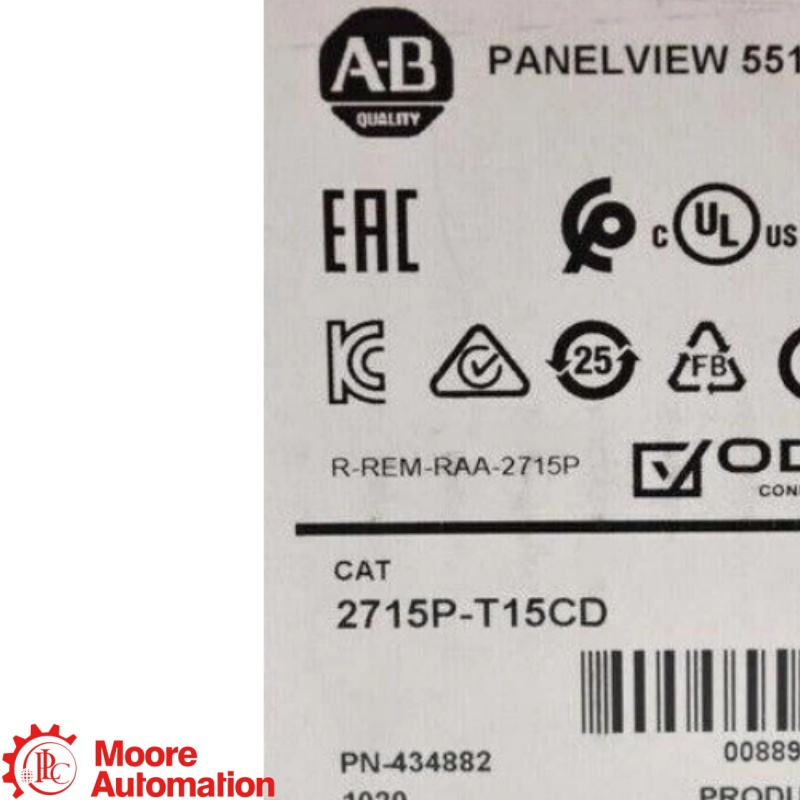

Product Identity
