 /Schneider Electric ATV31H075M2 Altivar 31 0.75 kW Variable Speed Drive

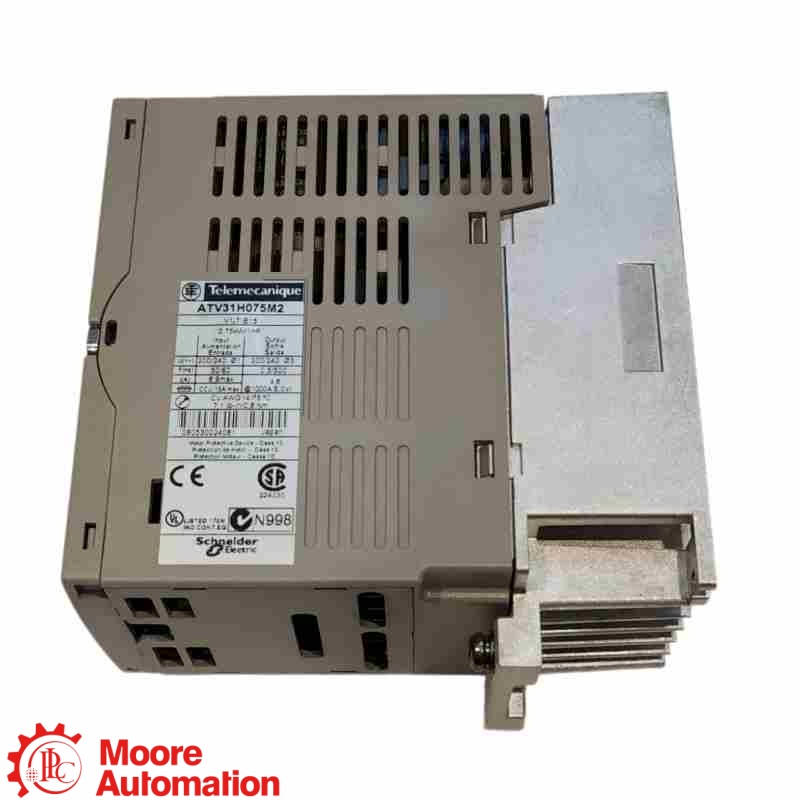

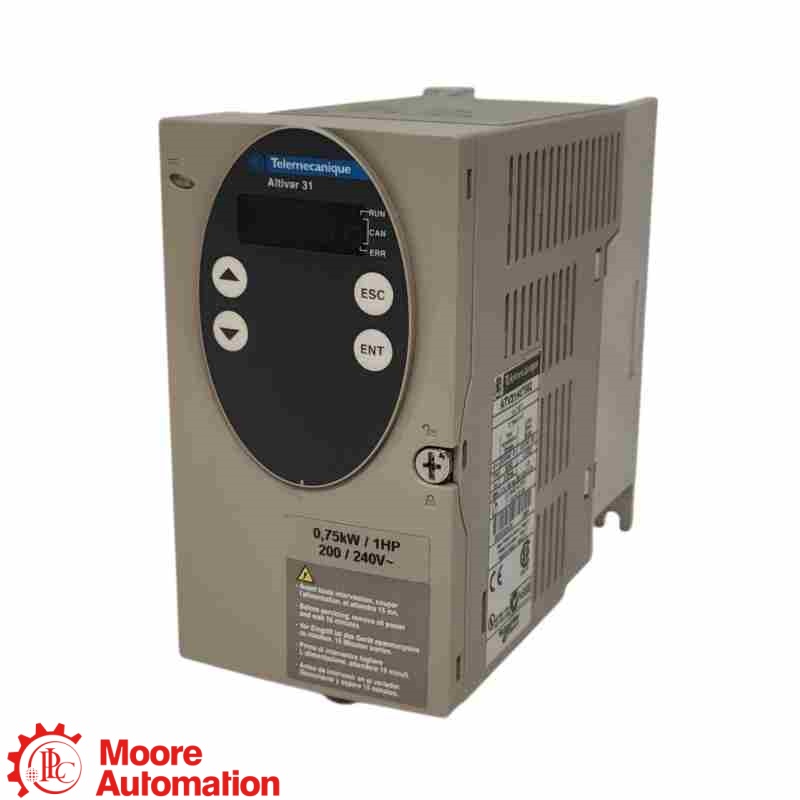

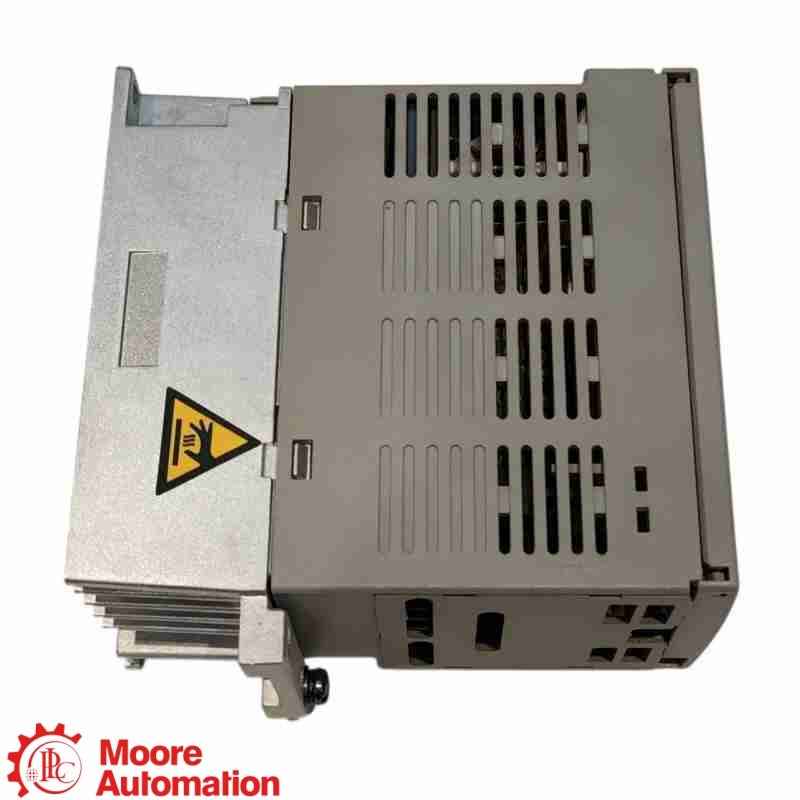

Schneider Electric ATV31H075M2 Altivar 31 0.75 kW Variable Speed Drive
Schneider Electric ATV31H075M2 Altivar 31 0.75 kW Variable Speed Drive
Schneider Electric ATV31H075M2 Altivar 31 0.75 kW Variable Speed Drive

Schneider Electric ATV31H075M2 Altivar 31 0.75 kW Variable Speed Drive

ALTIVAR 31 · VARIABLE SPEED DRIVE

ATV31H075M2

The Schneider Electric ATV31H075M2 is a Altivar 31 variable speed drive. Schneider Electric identifies this exact model as 0.75 kW / 1 hp for 200...240 V AC, 1 phase. Confirm the complete type code, motor data and installed application before replacement.

POWER0.75 kW / 1 hp
SUPPLY200...240 V AC, 1 phase
OUTPUT4.8 A
STATUSDiscontinued
MANUFACTURERSchneider Electric
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SCHNEIDER ELECTRIC ● ALTIVAR 31 VARIABLE SPEED DRIVE
VARIABLE SPEED DRIVE

ATV31H075M2

OFFICIAL SCHNEIDER ELECTRIC REFERENCE

0.75 kW / 1 hp · 200...240 V AC, 1 phase

PRODUCT ROLE
ATV31H075M2 is a Schneider Electric Altivar 31 variable speed drive rated 0.75 kW / 1 hp for 200...240 V AC, 1 phase.
LIFECYCLE AND REPLACEMENT
ATV31H075M2 is listed as discontinued. Schneider Electric identifies ATV320U07M2C as the recommended replacement; confirm the motor, mains supply, wiring, enclosure and installed-system compatibility before substitution.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the ATV31H075M2 order number is structured

ATV31
Platform familySchneider Electric Altivar 31 drive family
H075
Construction and powerHeatsink drive, 0.75 kW / 1 hp code
M2
Voltage class200...240 V AC single-phase supply class
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

SCHNEIDER ↗
ATV31H075M2

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCT TYPEVariable Speed Drive
SUPPLY200...240 V AC, 1 phase
OUTPUT CURRENT4.8 A
STATUSDiscontinued
Official Schneider Electric product record.
Replacement verificationSchneider Electric lists ATV320U07M2C as the recommended replacement. Confirm the motor, mains supply, wiring, enclosure and installed-system compatibility before substitution.
General Information −
BrandSchneider Electric
Catalog numberATV31H075M2
Product designationAltivar 31 VSD 0.75 kW
Product typeVariable speed drive
Product familyAltivar 31
Output current4.8 A
Electrical Data ＋
Input supply200...240 V AC, 1 phase
Nominal output current4.8 A
Maximum transient current7.2 A
Lifecycle and Replacement ＋
Commercial statusDiscontinued
Recommended replacementATV320U07M2C
Replacement checkVerify drive ratings and enclosure
CompatibilityVerify motor, wiring and installed system
Source: Schneider Electric official ATV31 product record and Altivar 31 catalog. Verify the complete type code, motor data, mains supply and installed-system compatibility before replacement.
FAQ

Questions Buyers Ask Most

What type of product is ATV31H075M2?＋

ATV31H075M2 is a Schneider Electric Altivar 31 variable speed drive rated 0.75 kW / 1 hp for 200...240 V AC, 1 phase.

What power and supply ratings apply to ATV31H075M2?＋

Schneider Electric identifies ATV31H075M2 as a 0.75 kW / 1 hp drive for 200...240 V AC, 1 phase, with 4.8 A nominal output current.

Is ATV31H075M2 discontinued?＋

Yes. Schneider Electric lists ATV31H075M2 as discontinued.

Which replacement does Schneider Electric list for ATV31H075M2?＋

Schneider Electric lists ATV320U07M2C as the recommended replacement for ATV31H075M2.

What must be checked before replacing ATV31H075M2?＋

Confirm the complete type code, motor data, 200...240 V AC supply, wiring, enclosure and installed-system compatibility before replacing ATV31H075M2.

CONTACT PRODUCT SPECIALIST

Check ATV31H075M2 with Frida

Share the complete ATV31H075M2 type code, motor data, mains supply, application, quantity and a clear nameplate photo for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
ATV31H075M2

Official Schneider Electric product-record and Altivar 31 catalog status for ATV31H075M2.

Official datasheet status

No public product-specific official datasheet was located for ATV31H075M2. Schneider Electric's official ATV31 product record and catalog confirm a 0.75 kW / 1 hp variable speed drive for 200...240 V AC, 1 phase, with 4.8 A nominal output current, discontinued status and ATV320U07M2C as the recommended replacement.

CONTACT FRIDA

Contact to Get Support

Send the complete type code, motor data, mains supply, wiring, enclosure, quantity, nameplate photo and your technical or purchasing question.

Technical statements on this product page are limited to Schneider Electric manufacturer documentation. No third-party product sources were used.

MODEL IDENTIFICATION

How the ATV31H075M2 order number is structured

ATV31H075M2 is a Schneider Electric Altivar 31 variable speed drive reference. Its three catalog segments identify the drive family, heatsink and power code, and 200...240 V AC single-phase voltage class.

DRIVE FAMILYATV31 · Altivar 31 variable speed drive family
→
CONSTRUCTION / POWERH075 · heatsink drive, 0.75 kW / 1 hp
→
VOLTAGE CLASSM2 · 200...240 V AC single-phase supply
Family Segment

ATV31 identifies the Schneider Electric Altivar 31 variable speed drive family.

Construction / Power Segment

H075 identifies the heatsink drive construction and 0.75 kW / 1 hp power code.

Voltage Segment

M2 identifies the 200...240 V AC single-phase supply class.

Interpretation Limit

Use the complete ATV31H075M2 catalog number for identification; do not infer undocumented characteristics from individual digits.

VERIFICATION EVIDENCE

Evidence needed to verify ATV31H075M2 correctly

Product Identity

Match ATV31H075M2 to the complete drive nameplate and Schneider Electric type code.

Installation Context

Document the installed motor, mains supply, wiring, enclosure and application.

PRODUCT REFERENCEATV31H075M2Altivar 31 variable speed drive
Configuration Evidence

Use the full nameplate, installed-system records and Schneider official product data to verify identity and compatibility.

Replacement Check

Confirm motor rating, mains supply, wiring, enclosure and installed-system compatibility before using ATV320U07M2C as the replacement.
