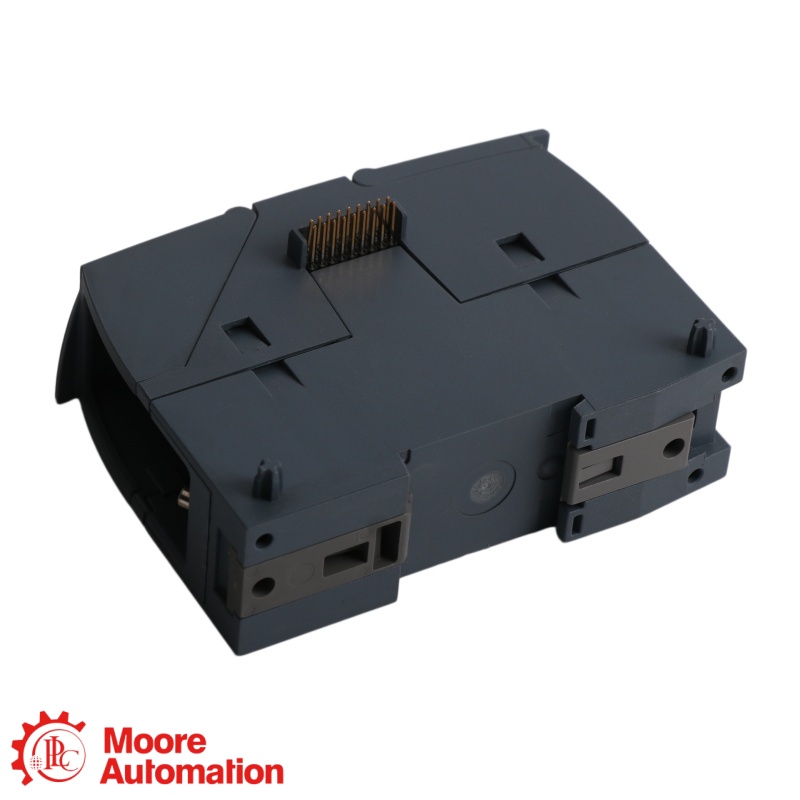

Siemens 6ES7241-1AH32-0XB0 SIMATIC S7-1200 CM 1241 RS232 Communication Module
Siemens 6ES7241-1AH32-0XB0 SIMATIC S7-1200 CM 1241 RS232 Communication Module
Siemens 6ES7241-1AH32-0XB0 SIMATIC S7-1200 CM 1241 RS232 Communication Module

Siemens 6ES7241-1AH32-0XB0 SIMATIC S7-1200 CM 1241 RS232 Communication Module

SIMATIC S7-1200 · CM 1241 RS232

6ES7241-1AH32-0XB0

The 6ES7241-1AH32-0XB0 is a Siemens SIMATIC S7-1200 CM 1241 communication module with one RS232 interface and Freeport support.

INTERFACERS232
CONNECTOR9-pin D-sub
PROTOCOLFreeport
MODULE TYPECM 1241
MANUFACTURERSiemens
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SIEMENS ● RS232 COMMUNICATION MODULE
SIMATIC S7-1200 CM 1241

6ES7241-1AH32-0XB0

CM 1241 · RS232

9-pin D-sub · Freeport

MODULE ROLE
6ES7241-1AH32-0XB0 is a SIMATIC S7-1200 CM 1241 point-to-point communication module for connecting serial RS232 devices through a 9-pin D-sub interface.
CONFIGURATION NOTE
For 6ES7241-1AH32-0XB0, Siemens specifies one RS232 interface with a 9-pin male D-sub connector and Freeport support; confirm cable pinout, baud rate and device protocol.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the order number identifies this module

6ES7241
Product familySIMATIC S7-1200
COMMUNICATION MODULE
1AH32
CM 1241 RS232
0XB0
Order suffix
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

SIMATIC S7-1200 ↗
CM 1241 RS232 COMMUNICATION MODULE

Engineering data at a glance

Click “+” to expand more specifications.

PACK LENGTH8.8 cm
PACK WIDTH11.0 cm
PACK HEIGHT5.7 cm
NET WEIGHT0.152 kg
Official Siemens product data.
Official product verification Verify the complete order number 6ES7241-1AH32-0XB0and RS232 connector, cable pinout, serial parameters, protocol and CPU compatibility against the current official Siemens datasheet before ordering.
General Information −
BrandSiemens
Part number6ES7241-1AH32-0XB0
Product typeCM 1241 RS232 Communication Module
Product familySIMATIC S7-1200
Mounting styleDIN rail
Engineering softwareSTEP 7 in TIA Portal
Serial Interface Data ＋
InterfaceRS232 point-to-point
Connector9-pin D-sub, male
Protocol supportFreeport
Module and Ordering Data ＋
Communication roleSerial device connection
Product familyCM 1241 communications module
Article statusActive Product; phase-out from 01.11.2026
Packaging quantity1 piece
Lifecycle statusActive Product
Environment and Certification ＋
Packaging dimensions and net weight: 8.8 cm × 11.0 cm × 5.7 cm; 0.152 kg.
Source: Siemens official SiePortal product data and technical datasheet for 6ES7241-1AH32-0XB0.
FAQ

Questions Buyers Ask Most

What is 6ES7241-1AH32-0XB0 used for?＋

6ES7241-1AH32-0XB0 adds one RS232 point-to-point port to a SIMATIC S7-1200 station for serial devices such as scanners, printers, meters and protocol converters.

Which serial interface does 6ES7241-1AH32-0XB0 provide?＋

6ES7241-1AH32-0XB0 provides one RS232 interface through a 9-pin male D-sub connector.

Which communication mode is supported by 6ES7241-1AH32-0XB0 ?＋

6ES7241-1AH32-0XB0 supports Freeport serial communication; the application must set matching data format, baud rate and handshake parameters.

Can 6ES7241-1AH32-0XB0 connect directly to an RS485 device?＋

6ES7241-1AH32-0XB0 uses RS232 electrical signaling, so an RS485 device requires the correct Siemens RS422/485 module or an external converter.

What are the packaging dimensions and net weight of 6ES7241-1AH32-0XB0 ?＋

6ES7241-1AH32-0XB0 has official packaging dimensions of 8.8 × 11.0 × 5.7 cm and a net weight of 0.152 kg.

Is 6ES7241-1AH32-0XB0 still an active Siemens product?＋

6ES7241-1AH32-0XB0 is listed by Siemens as an Active Product, with product phase-out effective 01.11.2026.

What information is needed to quote 6ES7241-1AH32-0XB0 ?＋

6ES7241-1AH32-0XB0 should be quoted with the full order number, connected device type, RS232 pinout, cable length, serial settings, CPU model, quantity and destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
6ES7241-1AH32-0XB0

Official Siemens documentation for the SIMATIC S7-1200 CM 1241 RS232 communication module.

SIMATIC S7-1200 CM 1241 RS232

Siemens technical datasheet for 6ES7241-1AH32-0XB0, including interface, connector, communication functions, lifecycle, packaging dimensions and net weight.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this product page are based on publicly available official Siemens manufacturer documentation.

S7-1200 SERIAL COMMUNICATION RELATIONSHIP

How CM 1241 RS232 Fits into the SIMATIC S7-1200 System

Siemens is the brand; SIMATIC S7-1200 is the product family; and 6ES7241-1AH32-0XB0 is the CM 1241 RS232 communication module.

Siemens · BRAND
SIMATIC S7-1200PLC FAMILY · AUTOMATION SYSTEM
RS232 COMMUNICATION MODULE

CM 1241 · RS232

CM 1241 adds one RS232 point-to-point channel to a SIMATIC S7-1200 station.

ENGINEERING

STEP 7 in TIA Portal

STEP 7 in TIA Portal is used to configure the module, serial data format, baud rate and Freeport communication.

SERIAL INTERFACE

RS232 · 9-PIN D-SUB

The module connects one compatible RS232 device using a 9-pin male D-sub interface.

System relationship: verify connector pinout, cable type, baud rate, protocol and CPU compatibility.
APPLICATION AREAS

Application mind map for the SIMATIC S7-1200 CM 1241 RS232

Barcode and Code ReadersExchange serial records with compatible RS232 identification devices
Meters and InstrumentsCollect measurements from serial laboratory or process instruments
APPLICATION CENTER CM 1241 RS232 communication module
Legacy Device IntegrationConnect equipment that provides a documented RS232 protocol
Freeport MessagingImplement application-specific serial telegram exchange in the PLC program
