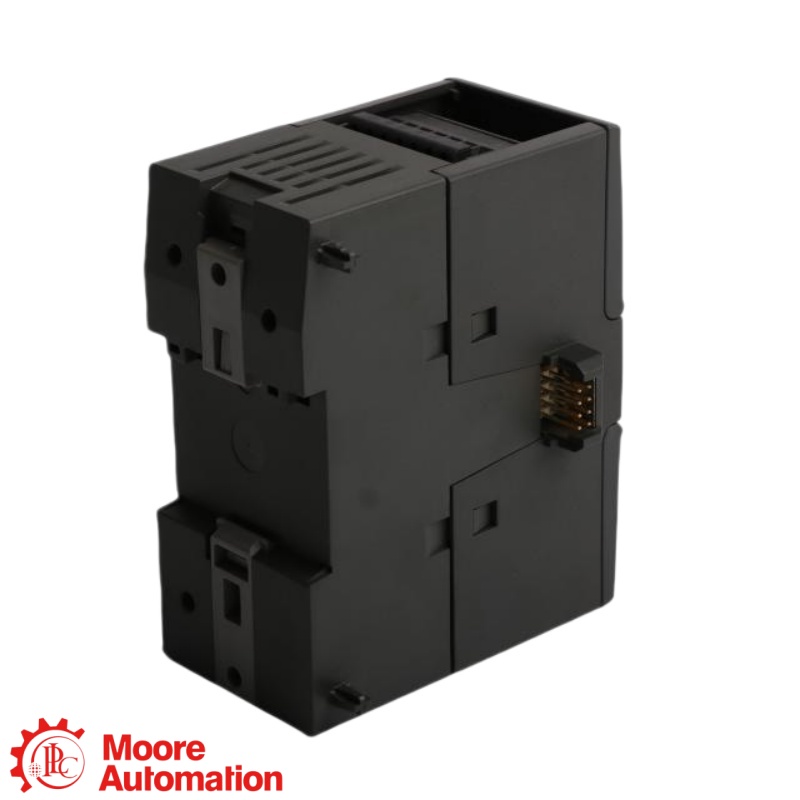

The 6ES7288-2DR32-0AA0 is a Siemens SIMATIC S7-200 SMART EM DR32 mixed digital I/O module with 16 digital inputs and 16 relay outputs.
Mixed Digital I/O · 16 DI / 16 Relay DQ
Click “+” to expand more specifications.
6ES7288-2DR32-0AA0 is a 32-point S7-200 SMART expansion module for machines requiring 16 digital inputs and 16 relay outputs in one module.
6ES7288-2DR32-0AA0 provides 16 digital inputs at 24 V DC and 16 relay outputs, for 32 mixed digital I/O expansion points.
6ES7288-2DR32-0AA0 supports suitable AC or DC loads at up to 2 A per relay point and has an 8 A per-common limit.
6ES7288-2DR32-0AA0 measures about 70 × 100 × 81 mm and weighs approximately 295 g; allow room for terminals, wiring and ventilation.
6ES7288-2DR32-0AA0 requires approximately 180 mA from the S7-200 SMART backplane bus and has about 10 W maximum power loss.
6ES7288-2DR32-0AA0 uses relay contacts; protect inductive coils with correctly selected suppression and verify switching inrush before commissioning.
For 6ES7288-2DR32-0AA0, provide the CPU model, 24 V DC input wiring, relay load voltage, steady and inrush current, output grouping, quantity and destination.
Share the complete order number and application details for compatibility, availability and lead-time checking.
Official Siemens documentation for the SIMATIC S7-200 SMART EM DR32 module.
Siemens technical datasheet for 6ES7288-2DR32-0AA0, including channel configuration, relay ratings, environmental limits, dimensions and weight.
OFFICIAL DATASHEETSend the complete model, quantity, and your technical or purchasing question.
Technical statements on this product page are based on publicly available official Siemens manufacturer documentation.
Siemens is the brand; SIMATIC S7-200 SMART is the PLC family; and 6ES7288-2DR32-0AA0 is the EM DR32 mixed digital I/O expansion model with 16 inputs and 16 relay outputs.
EM DR32 expands an S7-200 SMART station with 16 digital inputs and 16 relay outputs.
STEP 7 Micro/WIN SMART is used to configure the CPU station and commission the S7-200 SMART expansion module.
The module exchanges process data and receives logic power through the S7-200 SMART backplane bus.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
