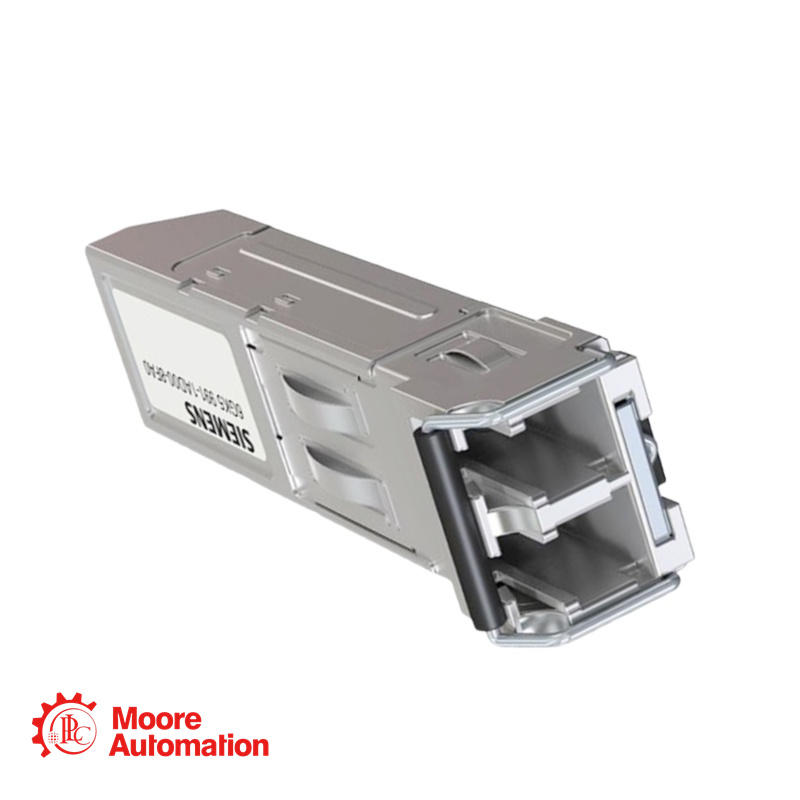

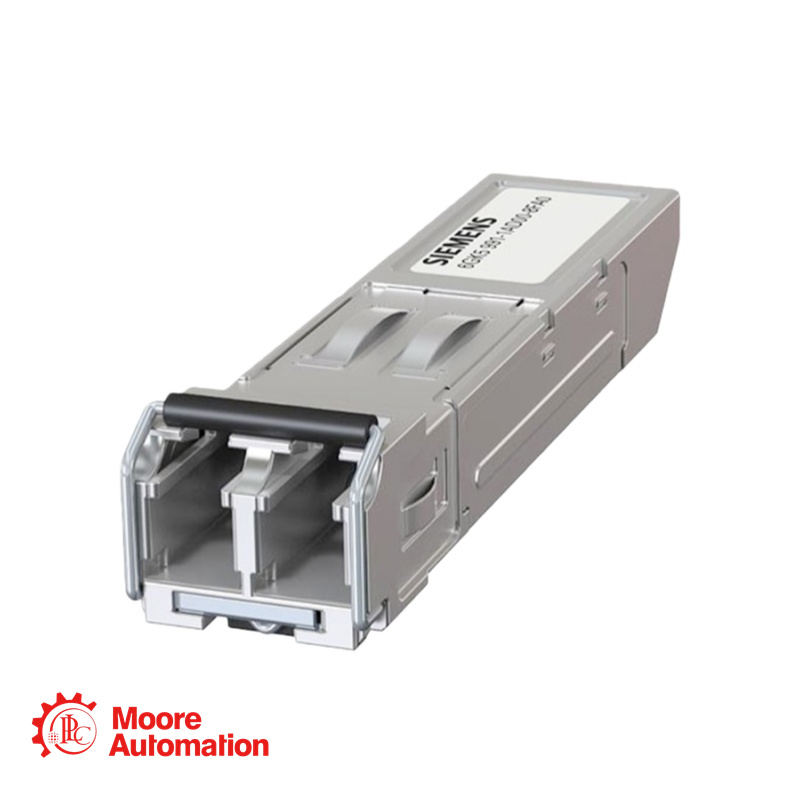

SCALANCE X accessory; SFP991-1LD; 1x 100 Mbit/s LC port, optical; single-mode optical up to max. 26 km.
Marca :
SiemensNúmero da peça :
6GK5991-1AF00-8AA0Peso :
0,034 KgDimensão :
100,00 x 60,00 x 22,00 mmPaís de origem :
GermanyCódigo SH :
8537101190Descrição :
Fibre Optic Transceiver
Want to inquire? Contact us now
Sales Manager: Frida
Phone: +86 15359408275
Email: sales5@mooreplc.com
Product Details
Wavelength: 1310 nm
Transmission Distance: Up to 26 km (typical, up to 25km guaranteed)
Data Rate: 100 Mbps (also compatible with 155 Mbps)
Operating Temperature Range: -40°C to +85°C (Industrial Grade)
Supply Voltage (Vcc): 3.3 V (Range: 3.15 V to 3.45 V)
Maximum Supply Current (Icc): 300 mA (typical)
Differential Impedance: 100 Ω typical (Range: 85 Ω to 120 Ω)
Input/Output Differential Voltage Swing (Vin/Vout): 400 mVpp to 2000 mVpp (AC coupled)
Average Output Power (Po): -5 dBm to 0 dBm
Center Wavelength (λ): 1310 nm typical (Range: 1275 nm to 1350 nm)
Spectral Width (RMS, Δλ): Max. 3 nm
Rise/Fall Time (tr/tf): Max. 2 ns (20% to 80%)
Extinction Ratio (ER): Min. 10 dB
Receiver Sensitivity (Pmin): -34.5 dBm (BER < 1E-12 with PRBS 2²³-1)
Receiver Overload (Pmax): 0 dBm
Receiver Wavelength Range (λC): 1270 nm to 1600 nm
Loss of Signal (LOS) Assert Level (LOSA): -45 dBm (max)
Loss of Signal (LOS) De-Assert Level (LOSD): -35 dBm (typical)
LOS Hysteresis: 1 dB (typical)
Storage Temperature: -40°C to +85°C
Operating Humidity (RH): 5% to 85% (non-condensing)
Maximum Supply Voltage (Vcc): 4.0 V
Storage Temperature (Ts): -40°C to +85°C
Operating Case Temperature (Tc): -40°C to +85°C
