 /Siemens 6SL3210-1PH31-4AL0 SINAMICS PM240-2 132 kW Power Module
Siemens 6SL3210-1PH31-4AL0 SINAMICS PM240-2 132 kW Power Module
Siemens 6SL3210-1PH31-4AL0 SINAMICS PM240-2 132 kW Power Module
Siemens 6SL3210-1PH31-4AL0 SINAMICS PM240-2 132 kW Power Module

Siemens 6SL3210-1PH31-4AL0 SINAMICS PM240-2 132 kW Power Module

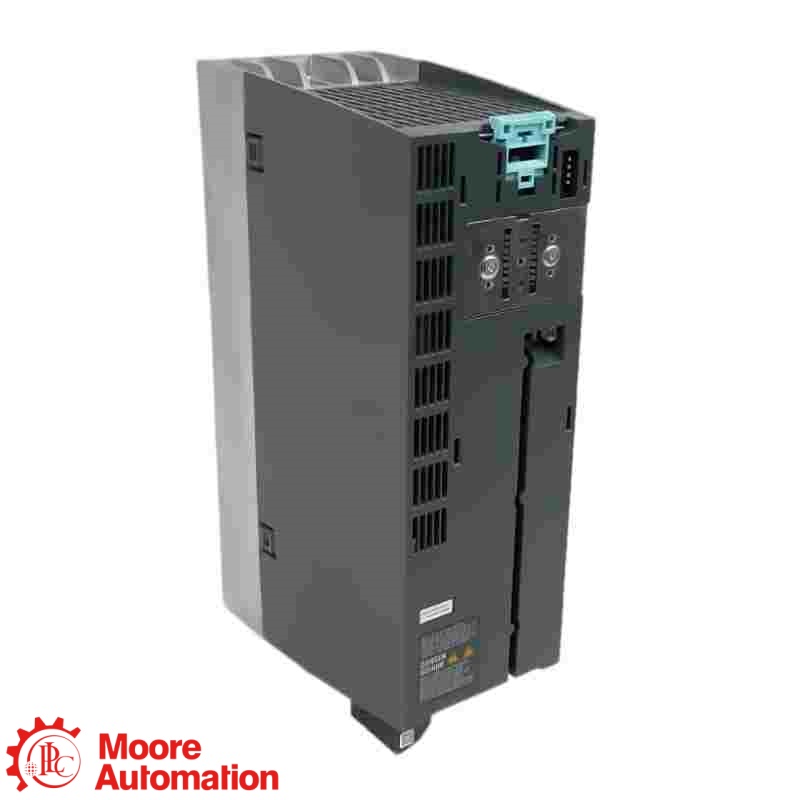

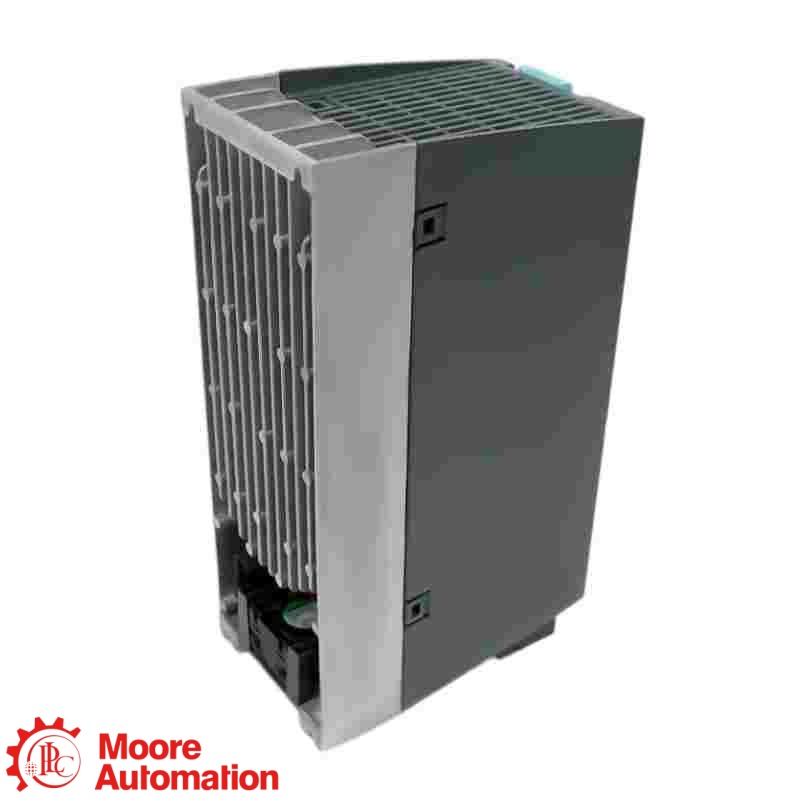

Siemens SINAMICS PM240-2 · 132 KW POWER MODULE

6SL3210-1PH31-4AL0

The 6SL3210-1PH31-4AL0 is a Siemens SINAMICS G120 PM240-2 power module with an integrated Class A filter and braking chopper, rated 132 kW low-overload at 500 to 690 V three-phase AC.

RATED POWER (LO)132 KW
OUTPUT CURRENT (LO)142 A
INPUT VOLTAGE500 TO 690 V 3 AC
FILTERINTEGRATED CLASS A
MANUFACTURERSiemens
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SIEMENS ● SINAMICS PM240-2 POWER MODULE
Siemens SINAMICS G120 PM240-2

6SL3210-1PH31-4AL0

132 KW LO · 500 TO 690 V 3 AC

FILTERED POWER MODULE

PRODUCT ROLE
6SL3210-1PH31-4AL0 is a Siemens SINAMICS G120 PM240-2 power module with a built-in braking chopper and integrated Class A line filter.
CONFIGURATION NOTE
For 6SL3210-1PH31-4AL0, Siemens identifies this exact article as the 132 kW low-overload, 110 kW high-overload FSF power module for 500 to 690 V supplies. Confirm the matching Control Unit, motor current and EMC arrangement before ordering.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How 6SL3210-1PH31-4AL0 Is Structured

6SL3210
SINAMICS G120 Power Module family Siemens uses this ordering-family identifier for SINAMICS G120 power modules
1PH31-4
PM240-2 132 kW FSF configuration The official exact-model data identifies the PM240-2 frame-size FSF power stage rated 132 kW in low-overload duty
AL0
Integrated Class A filter version The exact Siemens article description identifies the built-in Class A filter and braking chopper configuration
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Siemens 6SL3210-1PH31-4AL0 ↗
SINAMICS PM240-2 132 KW POWER MODULE

Engineering data at a glance

Click “+” to expand more specifications.

RATED POWER (LO)132 KW
OUTPUT CURRENT (LO)142 A
INPUT VOLTAGE500 TO 690 V 3 AC
FILTERINTEGRATED CLASS A
Official Siemens PM240-2 exact-model product data and datasheet.
Official product verificationVerify the complete order number 6SL3210-1PH31-4AL0, Control Unit compatibility, 500 to 690 V supply, motor current, overload duty, integrated braking chopper and Class A filter requirements before ordering.
General Information −
BrandSiemens
Part number6SL3210-1PH31-4AL0
Product typePM240-2 power module
Product familySINAMICS G120
Frame sizeFSF
Filter versionIntegrated Class A
Power and Rated Data ＋
Input voltage500 to 690 V 3 AC
Input frequency47 to 63 Hz
Rated power (LO)132 kW
Rated power (HO)110 kW
Output current (LO)142 A
Output and Control Data ＋
Output current (HO)115 A
Maximum output current230 A
Pulse frequency2 kHz
Installation and Environment ＋
Degree of protectionIP20 / UL open type
Dimensions (H × W × D)708 × 305 × 357 mm
Net weight64.00 kg
Maximum shielded motor cable300 m
Operating temperature (LO)-20 to 40 °C
Operating temperature (HO)-20 to 50 °C
Source: Siemens exact-product data sheet for 6SL3210-1PH31-4AL0.
FAQ

Questions Buyers Ask Most

What type of module is 6SL3210-1PH31-4AL0?＋

6SL3210-1PH31-4AL0 is a SINAMICS G120 PM240-2 power module supplied without a Control Unit or operator panel.

What low-overload rating does 6SL3210-1PH31-4AL0 provide?＋

6SL3210-1PH31-4AL0 provides 132 kW low-overload output with a rated output current of 142 A.

What high-overload rating applies to 6SL3210-1PH31-4AL0?＋

6SL3210-1PH31-4AL0 is rated 110 kW in high-overload duty with a 115 A rated output current.

Which supply range is specified for 6SL3210-1PH31-4AL0 ?＋

6SL3210-1PH31-4AL0 uses a 500 to 690 V three-phase AC input at 47 to 63 Hz.

Does 6SL3210-1PH31-4AL0include a braking chopper?＋

6SL3210-1PH31-4AL0 includes a built-in braking chopper and a Class A integrated line filter.

What enclosure rating and frame size does 6SL3210-1PH31-4AL0 use?＋

6SL3210-1PH31-4AL0 uses frame size FSF with IP20 and UL open-type protection.

What should be checked before ordering 6SL3210-1PH31-4AL0?＋

For 6SL3210-1PH31-4AL0, confirm the matching Control Unit, motor current, overload duty, supply voltage, filter requirements and installation dimensions.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number, motor current, supply, overload duty and Control Unit requirements for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
6SL3210-1PH31-4AL0

Official Siemens exact-product data for the SINAMICS PM240-2 132 kW power module.

Official product datasheet

Siemens publishes an exact product datasheet for 6SL3210-1PH31-4AL0 covering rated input and output data, overload capability, connections, mechanical data and ambient conditions.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this product page are based on the official Siemens exact-product datasheet and product page.

SINAMICS G120 POWER-MODULE RELATIONSHIP

How 6SL3210-1PH31-4AL0 Fits the Siemens SINAMICS G120 PM240-2 Range

Siemens is the brand; SINAMICS G120 PM240-2 is the product family; and 6SL3210-1PH31-4AL0 is the 132 kW low-overload, filtered PM240-2 FSF article.

Siemens · BRAND
Siemens SINAMICS G120 PM240-2POWER-MODULE CONFIGURATION
POWER STAGE

132 KW LO · 110 KW HO

The exact article supports low-overload and high-overload operating duties.

LINE INTERFACE

500 TO 690 V 3 AC

Use only within the specified three-phase voltage and frequency range.

EMC AND BRAKING

CLASS A FILTER · CHOPPER

The module includes a Class A line filter and a built-in braking chopper.

System relationship: verify the exact article, matching Control Unit, overload cycle, motor current, supply and installation conditions before commissioning.
APPLICATION AREAS

Application map for 6SL3210-1PH31-4AL0

High-Power Motor DrivesProvides the PM240-2 power stage for supported SINAMICS G120 systems
Regenerative-Braking ApplicationsUses the integrated braking chopper with a correctly selected braking resistor
APPLICATION CENTER 6SL3210-1PH31-4AL0 SINAMICS PM240-2 132 kW Power Module
Filtered Drive InstallationsProvides an integrated Class A line filter for the specified installation
Cabinet IntegrationRequires FSF clearances, cooling and IP20 enclosure planning
