Marca :
SIEMENSNúmero da peça :
6ES5102-8MA02Peso :
0.65 kgDimensão :
91.5cm x 135cm x 120cmPaís de origem :
GERMANYCódigo SH :
8537101190Descrição :

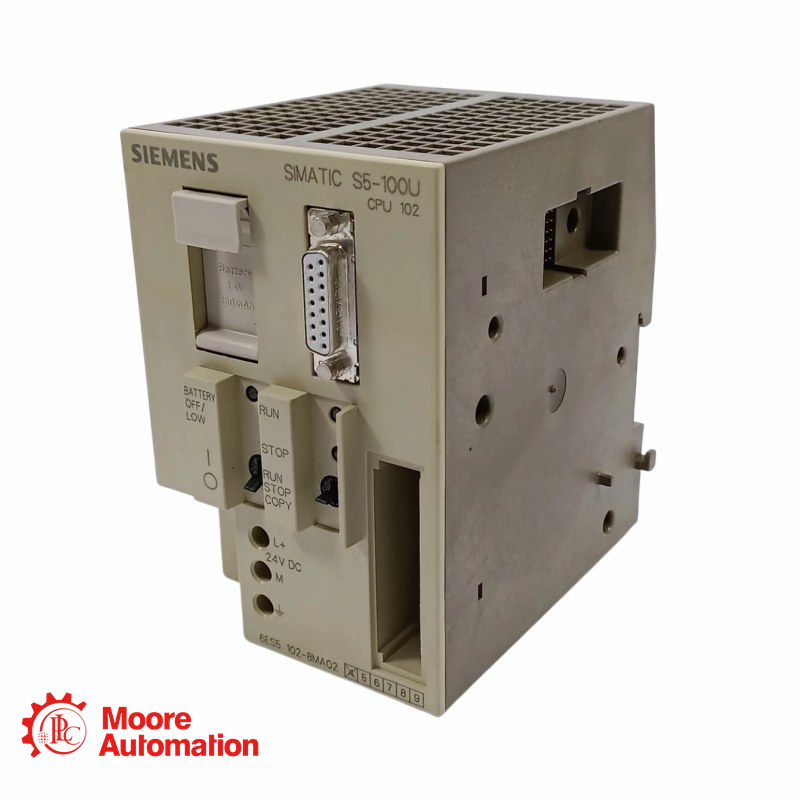

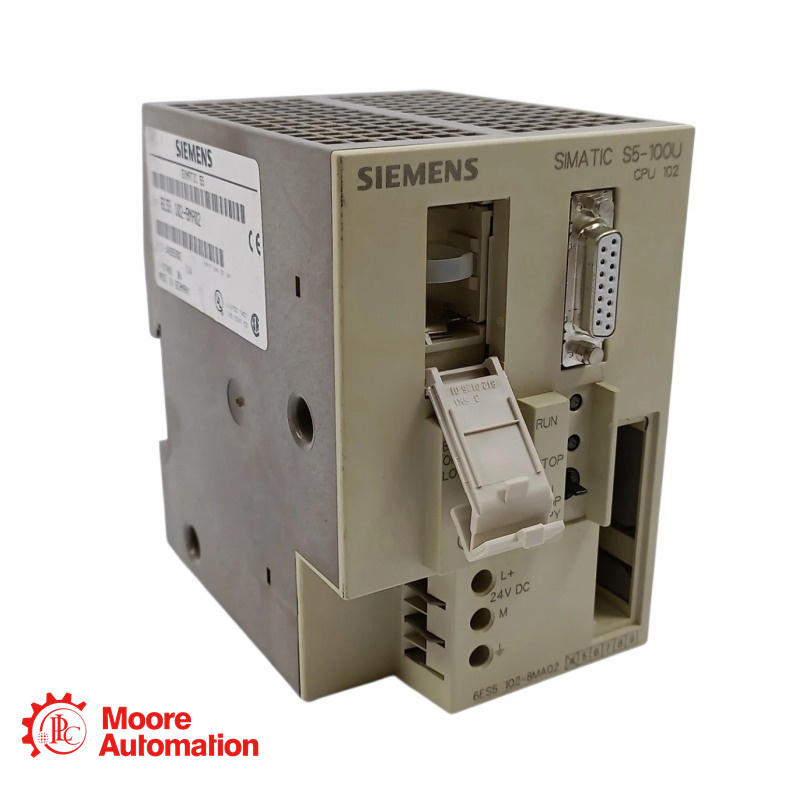

Siemens SIMATIC S5-100U CPU 102 programmable controller module
|
Pls Click Here To Get In Touch: |
|
Sales Manager: Nina Lan Phone/Whatsapp/Wechat: +8618030235312 Email: sales8@askplc.com
|
Details about product 6ES5102-8MA02
The Siemens SIMATIC S5-100U 6ES5102-8MA02 is a CPU 102 module designed for programmable control in legacy industrial automation systems. It offers 2,048-statement internal RAM, EPROM/EEPROM memory support, 32 timers, 32 counters, and capacity for up to 256 digital or 16 analog I/O points. Its internal power supply operates from 18 to 34 V DC. The module is well suited for maintenance, replacement, and life-cycle support of installed S5-100U control systems.
|
Technical Parameters |
|||
|
Manufacturer |
Siemens |
Scan Monitoring Time |
Approx. 350 ms |
|
Product Series |
SIMATIC S5-100U |
Flags |
1,024 total; 512 retentive |
|
CPU Model |
CPU 102 |
Timers |
Approx. 32; range 0.01 to 9,990 seconds |
|
Part Number |
6ES5 102-8MA02 |
Counters |
32 total; 8 retentive; range 0 to 999, up/down |
|
Internal Memory |
RAM, 2,048 statements |
Digital I/O Capacity |
Maximum 256 points combined |
|
Memory Submodule |
EPROM / EEPROM |
Analog I/O Capacity |
Maximum 16 points combined |
|
Binary Operation Time |
Approx. 7 µs normal / 70 µs test |
Backup Battery |
Lithium battery, 3.4 V / 850 mAh |
|
Word Operation Time |
Approx. 40 µs normal / 125 µs test |
Minimum Backup Time |
1 year at 25°C |
|
FAQ |
|
Q1: What is the function of 6ES5102-8MA02? |
|
It executes the control program and manages timers, counters, memory, and connected I/O in a SIMATIC S5-100U system. |
|
|
|
Q2: What type of memory does the CPU support? |
|
It has internal RAM for 2,048 statements and supports an EPROM or EEPROM memory submodule. |
|
|
|
Q3: What should be checked before replacement? |
|
Confirm the complete part number, S5-100U configuration, power supply, wiring, memory module, and program backup. |
|
|
|
Q4: Can it directly replace a newer Siemens PLC? |
|
No. It is designed for the S5-100U platform. Migration to a newer PLC normally requires program conversion and hardware changes. |
|
Product Applications |
|
Oil and gas auxiliary equipment control |
|
Natural gas compressor and pump stations |
|
Chemical dosing, batching, and mixing systems |
|
Water and wastewater treatment equipment |
|
Packaging, filling, and labeling machines |
|
Conveyor and material-handling systems |
|
