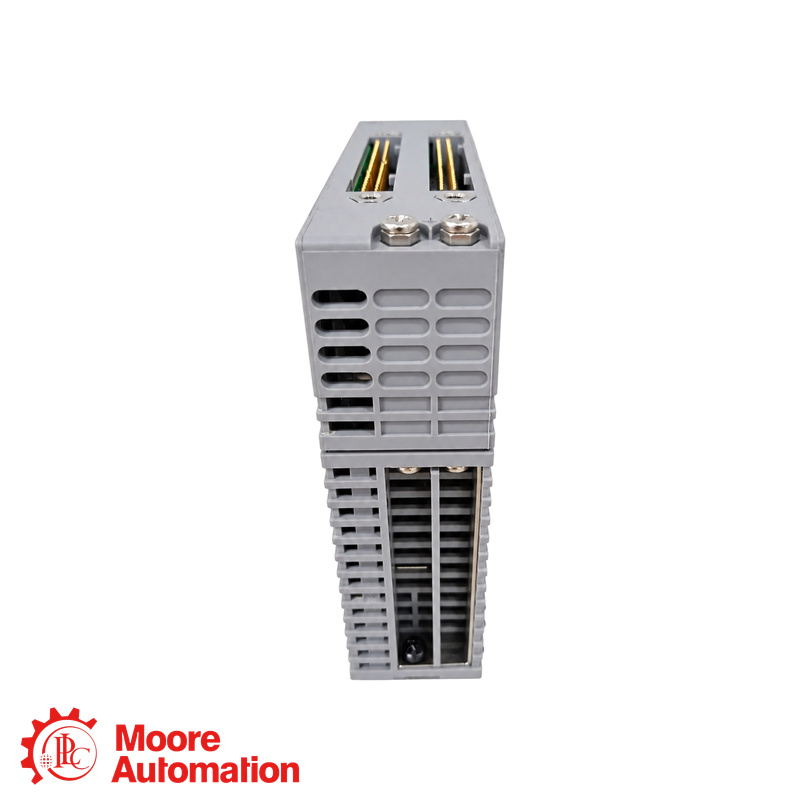

Yokogawa ADV559-P00 S1 32-Channel ST4-Compatible Digital Output Module
Yokogawa ADV559-P00 S1 32-Channel ST4-Compatible Digital Output Module
Yokogawa ADV559-P00 S1 32-Channel ST4-Compatible Digital Output Module

Yokogawa ADV559-P00 S1 32-Channel ST4-Compatible Digital Output Module

DIGITAL OUTPUT MODULE

ADV559-P00 S1

The ADV559-P00 S1 is a Yokogawa ST4-compatible digital output module with 32 isolated output channels. Official specifications identify transistor-contact outputs, 30 V DC / 100 mA contact rating and dedicated KS2 cable connection.

PRODUCT TYPEDigital Output Module
OFFICIAL MODELADV559-P00 S1
OUTPUT CHANNELS32 isolated channels
COMPATIBLE CARDST4
BRANDYokogawa
PRODUCT TYPEDigital Output Module
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONConfirm the complete ADV559-P00 S1 label, KS2 cable connection, output contact rating and channel load before installation.
REQUEST A QUOTE

  • Marca :

    Yokogawa

  • Número da peça :

    ADV559-P00 S1

  • Descrição :

    Digital Output Module
Informe-se agora
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION● OFFICIAL YOKOGAWA REFERENCE
OFFICIAL ST4-COMPATIBLE REFERENCE

ADV559-P00 S1

DIGITAL OUTPUT MODULE

OFFICIAL YOKOGAWA FIO MODULE

PRODUCT ROLE
ADV559-P00 S1 is a Yokogawa ST4-compatible digital output module. Official specifications identify 32 isolated output channels with transistor-contact outputs.
INSTALLATION CHECK
Confirm the complete ADV559-P00 S1 label, KS2 cable connection, output contact rating and channel load before installation.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
OFFICIAL YOKOGAWA REFERENCE

Technical Specifications

VERIFY COMPLETE MODULE REFERENCE
ADV559-P00 S1

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT130 mm
WIDTH32.8 mm
DEPTH127.2 mm overall
WEIGHT0.3 kg
Reference matching

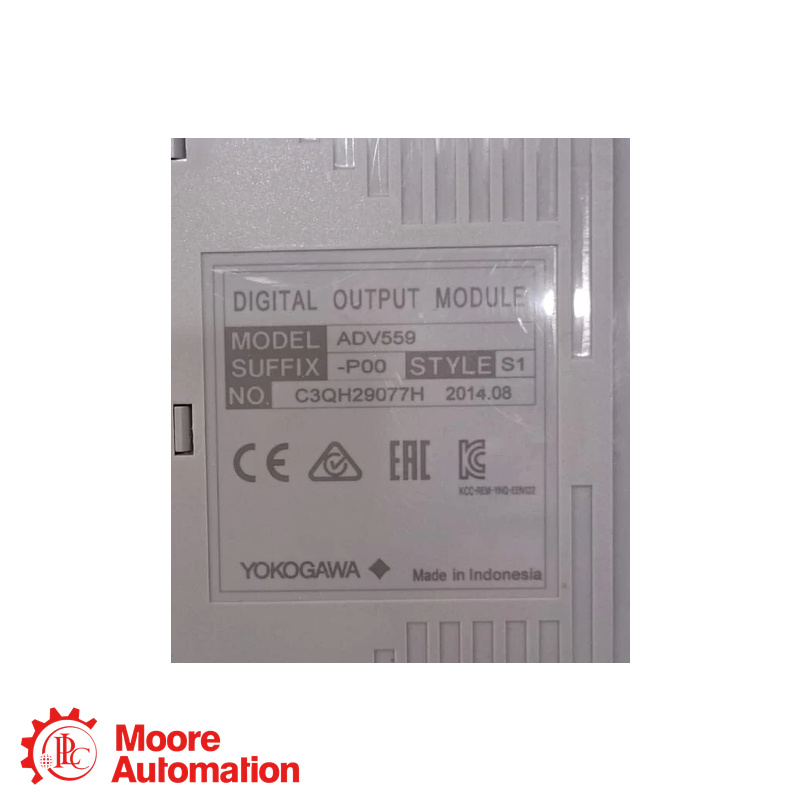

Use the complete ADV559-P00 S1 label and confirm the model and suffix codes against the official Yokogawa hardware specification.
ManufacturerYokogawa
ModelADV559-P00 S1
Product typeDigital Output Module
Output channels32 isolated channels
Signal isolationIsolated channels
Output signalTransistor contact
Output contact rating30 V DC, 100 mA
Output response time16 ms or less
Pulse width8 ms to 7200 s
Pulse width resolution8 ms, plus max. 1 ms ON/OFF delay
Maximum current consumption570 mA (5 V DC)
External connectionDedicated cable (KS2)
Compatible cardST4 compatible
External connectionDedicated cable (KS2)
Weight0.3 kg
Width32.8 mm
Height130 mm
Overall depth127.2 mm
FAQ

ADV559-P00 S1 Digital Output Module FAQ

What type of product is ADV559-P00 S1?＋

ADV559-P00 S1 is a Yokogawa ST4-compatible digital output module with 32 isolated output channels.

How many output channels does ADV559-P00 S1?＋

ADV559-P00 S1 provides 32 isolated digital output channels.

What signal isolation and output type are specified for ADV559-P00 S1?＋

ADV559-P00 S1 uses isolated channels and transistor-contact outputs.

What output contact rating is specified for ADV559-P00 S1?＋

ADV559-P00 S1 has a specified output contact rating of 30 V DC and 100 mA for inductive or resistive loads.

Which external connection is specified for ADV559-P00 S1?＋

ADV559-P00 S1 uses a dedicated KS2 cable connection.

What pulse-width range is specified for ADV559-P00 S1?＋

ADV559-P00 S1 supports pulse widths from 8 ms to 7200 s.

What output response and current consumption are specified for ADV559-P00 S1?＋

ADV559-P00 S1 has an output response of 16 ms or less and maximum current consumption of 570 mA at 5 V DC.

CONTACT PRODUCT SPECIALIST

Check ADV559-P00 S1 application details with Frida

Provide the complete ADV559-P00 S1 label, KS2 cable connection, channel load, quantity and destination for exact-reference checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Official Datasheet Status for
ADV559-P00 S1

An exact manufacturer PDF for the full ADV559-P00 S1 reference was not located. Contact Frida to match documentation against the complete nameplate.

ADV559-P00 S1 official datasheet status

Official Yokogawa specifications confirm ADV559 as a 32-channel ST4-compatible digital output module with isolated channels; the full ADV559-P00 S1 reference should be matched against the complete product label.

CONTACT FRIDA

Contact to Get Support

Send the complete ADV559-P00 S1 label, KS2 cable connection, channel load, quantity and destination.

No exact PDF link is shown for the full ADV559-P00 S1 reference. Confirm the complete model code and product label before ordering documentation.

YOKOGAWA MODULE · MODEL IDENTIFICATION

How ADV559-P00 S1 Is Identified

Yokogawa is the brand; ADV559 is the base model, -P denotes pulse-width/time-proportional output capability, and 0 denotes Basic type in the official ordering table.

Yokogawa · BRAND
ADV559-P00 S1 Digital Output ModuleOFFICIAL MODEL REFERENCE
BASE MODEL

ADV559

The official ordering table identifies ADV559 as a Digital Output Module.

SUFFIX CODE

-P

The official ordering table identifies -P as providing pulse-width and time-proportional output functions.

BASIC TYPE

0

The official ordering table identifies suffix 0 as Basic type.

Model relationship: treat S1 as part of the supplied full reference and confirm the complete product label; no unsupported meaning is assigned to S1.
APPLICATION AREAS

Applications for ADV559-P00 S1

FIO Digital Output

32-channel isolated digital output service for ST4-compatible Yokogawa FIO configurations.

DC Relay Switching

Transistor-contact outputs for inductive or resistive loads within the specified 30 V DC, 100 mA contact rating.

PRODUCT REFERENCEADV559-P00 S1Yokogawa digital output module
Pulse and Time-Proportional Output

Pulse-width or time-proportional output functions across the supported 32-channel output arrangement.

KS2 Cable Connection

Installations using the specified dedicated KS2 cable connection.
