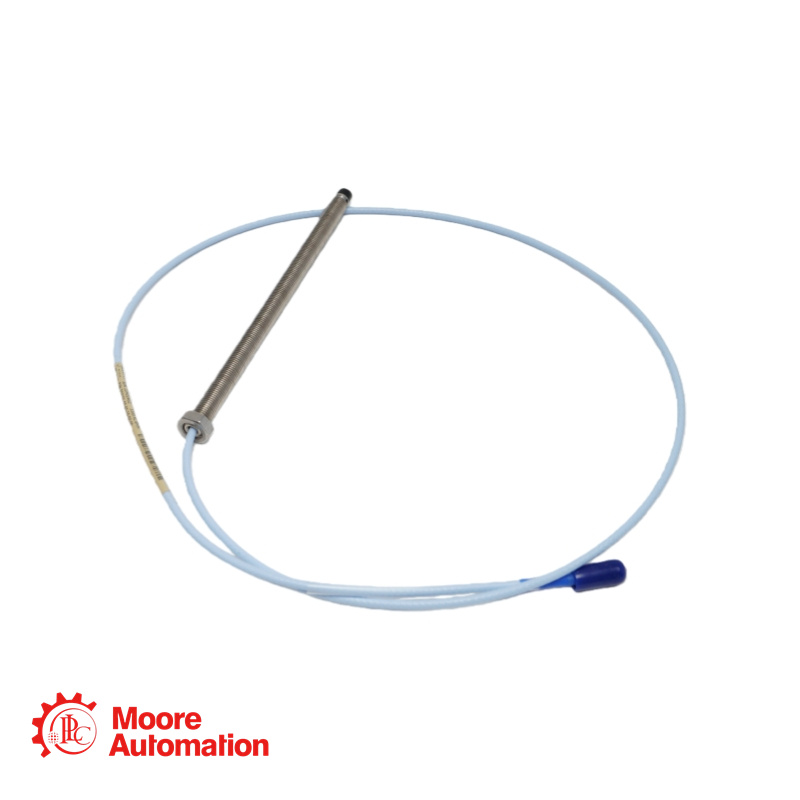

3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
Marca :
Bently NevadaNúmero da peça :
330101-00-61-15-02-CNPeso :
0.1kgDimensão :
1.6x1.4x112cmPaís de origem :
USACódigo SH :
8537101190Descrição :
Proximity Probe
|
Contact Us |
|||
|
Sales: |
Phone/ |
Email: |
Address: |
|
Frida |
Siming District, Xiamen, Fujian, China |
||
Specification
Base Part Number: 330101 (3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor)
Unthreaded Length (Option AA): 00 = 0.0 inches.
Overall Case Length (Option BB): 61 = 6.1 inches.
Total Probe Length (Option CC): 15 = 1.5 meters (4.9 feet).
Connector and Cable-Type Option (DD): 02 = Miniature coaxial ClickLoc connector, standard cable.
Agency Approval Option (EE): Replaced by Regional Suffix.
Special Suffix: -CN = Configuration for the Chinese Market.
Probe Tip Diameter: 8.0 mm (0.31 in)
Case Thread: 3/8-24 UNF-2A
Wrench Flats: 5/16 inch (for installation tool engagement)
Lock Nut Supplied: 9/16 inch hex lock nut.
Operating Temperature Range: -52°C to +177°C (-62°F to +350°F).
Electrical Resistance (R_PROBE) for 1.5m cable: 7.73 ± 0.50 Ohms
Tensile Strength (Probe case to cable): 330 N (75 lbf) maximum rated pull force.
Product FAQ
Q:We installed this probe and achieved a perfect -9.00 Vdc gap. However, when we rotate the shaft slowly by hand, the gap voltage fluctuates by ±0.5 Vdc even though the physical gap is constant. What does this indicate?
Q:We are building a system with a 5-meter Proximitor. Using this 1.5m probe, we need a 3.5m extension cable. If we only have a 5.0m extension cable in stock, can we coil up the extra 1.5m of cable near the Proximitor without affecting the signal?
A: This indicates significant Electrical Runout (ERO) on your shaft. Electrical Runout is a variation in the electrical properties of the shaft surface as it rotates, caused by:
Localized changes in material (e.g., from welding or heat treatment).
Variations in hardness.
Surface coatings or contamination in patches.
Magnetic permeability variations.
The probe interprets these property changes as a change in distance.
A: It is not recommended to use a different length cable. The Proximitor's internal compensation is designed for a specific total system capacitance and inductance, which is defined by the total length of the transducer cable (probe + extension). Using a 5.0m cable changes the total to 6.5m, mismatching the Proximitor's 5m calibration.
Potential Effects: This can degrade system linearity, temperature stability, and high-frequency response.
Coiling Excess Cable: Coiling can create an inductor, potentially affecting the signal, especially at higher frequencies. It also violates the principle of using matched components.
Correct Practice: Use the specified 3.5m extension cable. If you must use the 5.0m cable temporarily, be aware that the system is out of specification, and accuracy, especially at temperature extremes, is not guaranteed.
|
