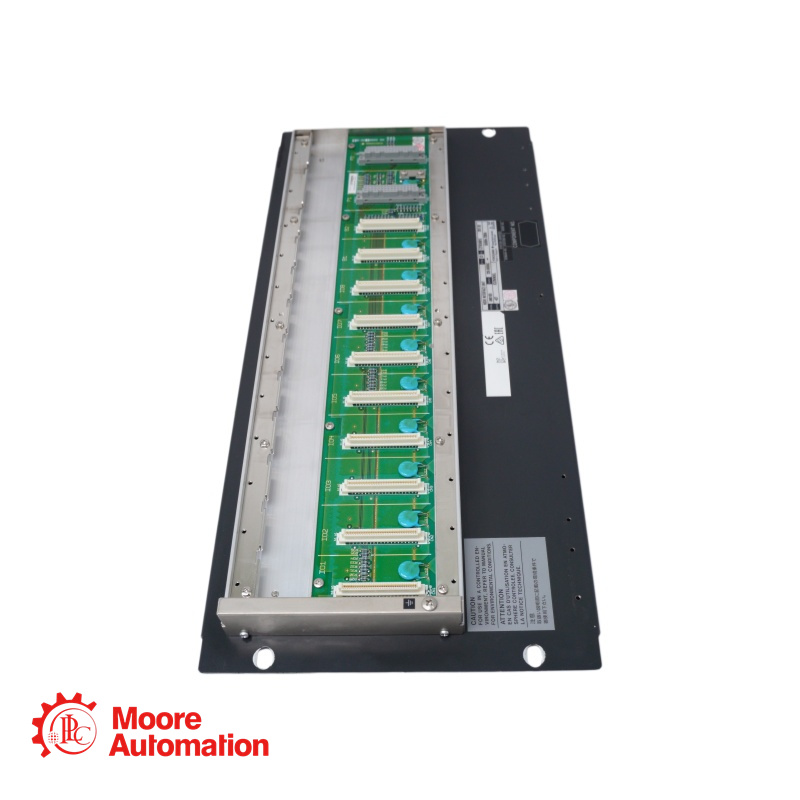

Yokogawa ANB10D-427/CU2N ESB Bus Node Unit

Contact and Submit your Inquiry

Sales Manager - Frida

Phone/Whatsapp:
+86 15359408275

Email:
sales5@mooreplc.com

Address:
Xiamen,Fujian,China

General Information

Product ID:
ANB10D-427/CU2N
Long Description:
The ESB Bus Node Unit has an interface function that communicates the analog I/O signals and contact I/O signals of a field with a Field Control Unit (FCU) via an ESB bus, as well as a function that supplies power to the I/O Modules.

Additional Information

Medium Description:
ESB Bus Node Unit
Product Type:
Duplexed Field Control Unit
(for FIO, 19-inch Rack Mountable Type)ESB Bus Node Units (for FIO)
HS Code:8537101190

Technical

Product Type: ESB Bus Node Unit for Dual-Redundant ESB Bus (for FIO)
Bus Redundancy: Dual-redundant ESB bus
Power Supply Configuration: Dual-redundant power supply
Power Supply Voltage: 24 V DC
Power Consumption: 5.5 A, 120 W
Environmental Specification: With ISA Standard G3 option, temperature (-20°C to 70°C) option, and no explosion protection (suffix code 6)
Explosion Protection: None (suffix code 6 = no explosion protection)
I/O Module Capacity: Max. 8 I/O modules
Module Configuration:
 - Power Supply Module: PW481, PW482, or PW484 (2 units, dual-redundant)
 - ESB Bus Interface Slave Module: SB401 (2 units, dual-redundant)

FAQ

※What does suffix code "6" mean?
Suffix code "6" means: With ISA Standard G3 option, temperature (-20°C to 70°C) option, and no explosion protection.
※Can this unit be used in explosion hazardous areas?
No. Suffix code "6" specifies no explosion protection. For explosion protection, order suffix code "F" or "G".
※How many I/O modules can I install in ANB10D-427/CU2N?
Maximum 8 I/O modules per ANB10D-427/CU2N.
